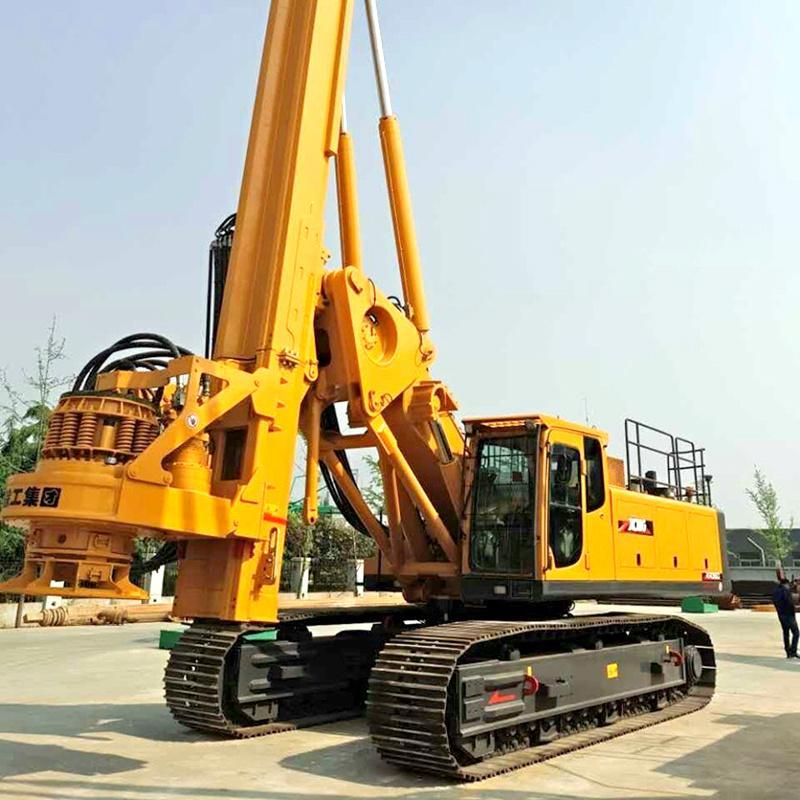

• Model NO.：XR220DII
• Type：Crawler
• Uncased：2000
• Max.Drilling Depth：67 M
• Engine Model：Cummins Qsl-325
• Engine Rated Power：242,2100 Kw
• Working Pressure：35 MPa
• Max. Output Torque：220 Kn.M
• Rotary Speed：7~22 R,Min
• Max.Pull-Down Piston Push：250 Kn
• Max.Pull-Down Piston Pull：250 Kn
• Max.Pull-Down Piston Stroke：15000 mm
• Max.Pulling Force：230 Kn
• Max. Single-Rope Speed：70 M,Min
• Diameter of The Steel Wire Rope：30 mm
• Max. Traveling Speed：1.5 Km,H
• Max.Grade Ability：35%
• Transport Package：Nude
• Specification：16355*3500*3510mm
• Trademark：Acntruck
• Origin：China, Shanghai
• HS Code：8429521200
• Production Capacity：200 Units, Month

EngineEngine Brand/CUMINSEngine Type/QSL-325Rated PowerkW242Rotary DriveMax output torquekN . m220Rotary speedr/min7 ~ 22Max Drilling Diameter mm2000Max Drilling Depth m67, (special 80)Pull-Down CylinderMax pull-down piston pushkN200Max pull-down piston pullkN200Max pull-down piston strokem5Crowd WinchMax pull-down piston pushkN250Max pull-down piston pullkN250Max pull-down piston strokekN15Main WinchMax Pulling forcekN230Max line speedm/min70Auxiliary WinchMax Pulling forcekN80Max line speedm/min60Mast RakeSide/± 40Forwards/± 50Backwards/± 150UndercarrigeMax traveling speedkm/h1.5Max grade ability%35Min Clearancemm446Track shoe widthmm800Distance between tracksmm3250 ~ 4400Hydraulic SystemWorking pressureMpa35Overall Drilling Weight/t70DimensionWorking conditionmm10260 x 4400 x 22619Transportation conditionmm16355 x 3250 x 3510
