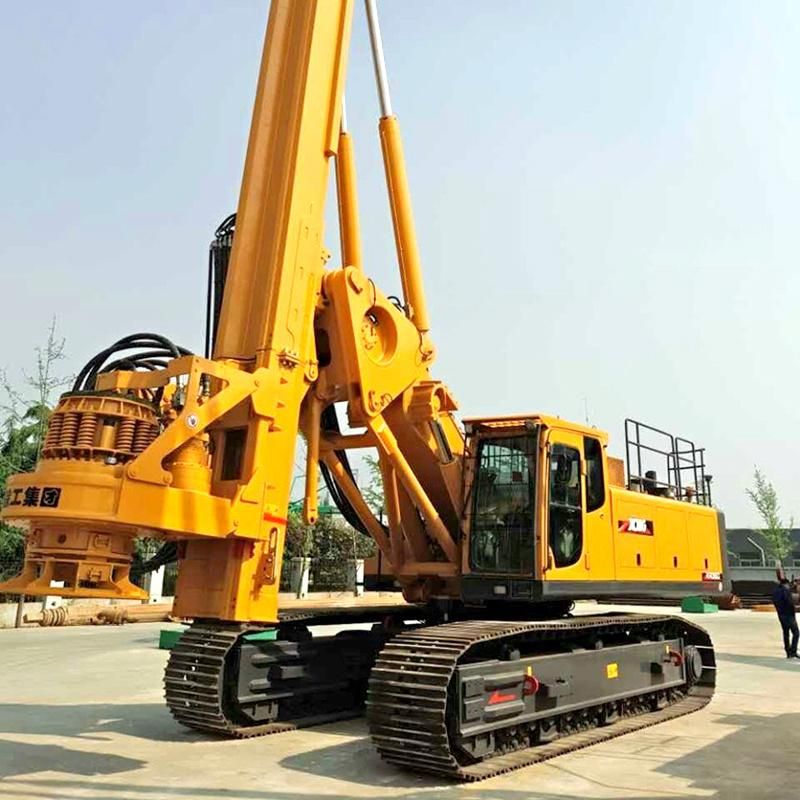

High Quality Xr180dii Rotary Dilling Rig with Cheap Price
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification:CE
- Condition:New
- Drill Hole Diameter:250-300mm
- Drill Hole Depth:70-100m
- Bit Type:Diamond Bit
- Drilling Way:Rotary
Base Info
- Model NO.:XR180DII
- Type:Crawler
- Uncased:1600
- Max.Drilling Depth:60 M
- Engine Model:Cummins Qsb6.7-C260
- Engine Rated Power:194,2200 Kw
- Working Pressure:35 MPa
- Max. Output Torque:180 Kn.M
- Rotary Speed:6~33 R,Min
- Max.Pull-Down Piston Push:210 Kn
- Max.Pull-Down Piston Pull:210 Kn
- Max.Pull-Down Piston Stroke:13000 mm
- Max.Pulling Force:180 Kn
- Max. Single-Rope Speed:65 M,Min
- Diameter of The Steel Wire Rope:28 mm
- Max. Traveling Speed:2.3 Km,H
- Max.Grade Ability:35%
- Transport Package:Nude
- Specification:14255*2960*3450 mm
- Trademark:Acntruck
- Origin:China, Shanghai
- HS Code:8429521200
- Production Capacity:200 Units, Month
Description
Basic Info.
Model NO. XR180DII Type Crawler Uncased 1600 Max.Drilling Depth 60 M Engine Model Cummins Qsb6.7-C260 Engine Rated Power 194/2200 Kw Working Pressure 35 MPa Max. Output Torque 180 Kn.M Rotary Speed 6~33 R/Min Max.Pull-Down Piston Push 210 Kn Max.Pull-Down Piston Pull 210 Kn Max.Pull-Down Piston Stroke 13000 mm Max.Pulling Force 180 Kn Max. Single-Rope Speed 65 M/Min Diameter of The Steel Wire Rope 28 mm Max. Traveling Speed 2.3 Km/H Max.Grade Ability 35% Transport Package Nude Specification 14255*2960*3450 mm Trademark Acntruck Origin China, Shanghai HS Code 8429521200 Production Capacity 200 Units/ MonthProduct Description
High Quality Xr180dii Rotary Dilling Rig With Cheap PriceIt adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability;
It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost;
Cummins electric control turbo-supercharged engine is used. It complies with Euro III emission standard ,In addition, it has strong power, which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard;
Using full electronic control technology of CAN bus, Improves the reliability of the whole vehicle and simplify hydraulic line, Fully reflects the people, machine, electricity and liquid integration;
Winch-crowd and sleeve-driven functions are available for selection to CFA, hydraulic casing oscillator, DTH hammer satisfy various needs of the users;
It is equipped with a centralized lubrication system as standard configuration; maintenance is easier;
The machine obtains CE certfication of TüV Rheinland group.
Description | Unit | Parameter value | |
Max. drilling diameter | mm | 1600 | |
Max. drilling depth | m | 60,Standard configuration | |
(5-section friction Kelly bar) | |||
46,optional configuration | |||
(4-section-locking Kelly bar) | |||
Allowable luffing scope (from center of drill rod to slewing center) | mm | 3560~3900 | |
Drilling rig dimension in working condition (L × W × H) | mm | 8350×4200×20480 | |
Drilling rig dimension in transport condition (L × W × H) | mm | 14380×3000×3490 | |
Weight of overall unit (standard configuration, excluding drilling tool) | t | 60 | |
Engine | Model | CUMMINS QSB6.7 | |
Rated power/speed | kW | 194/(2200r/min) | |
Max. working pressure of hydraulic system | MPa | 35 | |
Rotary drive | Max. torque | kN •m | 180 |
Rotational speed | r/min | 7~27 | |
(Standard configuration) | |||
Rotational speed | r/min | 6~25 | |
(Optional configuration) | r/min | 92(Spin-off) | |
Crowd cylinder | Max. Pushing force | kN | 210 |
Max. Pulling force | kN | 210 | |
Max.stroke | mm | 13000 | |
Main winch | Max.pulling force | kN | 180 |
Max. single-rope speed | m/min | 65 | |
Diameter of the steel wire rope | mm | 28 | |
Auxiliary winch | Max.pulling force | kN | 50 |
Max. single-rope speed | m/min | 70 | |
Diameter of the steel wire rope | mm | 16 | |
Drilling mast | Left/right inclination of mast | ° | 43527 |
Front/back inclination of mast | ° | 43600 | |
Rotary table slewing angle | ° | 360 | |
Traveling | Max. traveling speed of the overall unit | km/h | 1.5 |
Max. climbable gradient of the overall unit | % | 35 | |
Crawler | Width of crawler plate | mm | 700 |
External width of crawler (min.-max.) | mm | 2960~4200 | |
Center distance between two longitudinal wheels of crawler | mm | 4270 | |
Average ground pressure | kPa | 94 |
