• Model NO.：GY-100,150C
• Drill Hole Depth：100-150m
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Weight：520kg
• Power：11kw
• Max. Spindle Speed：688rpm
• Transport Package：Wooden Case or Others
• Specification：1600x760x1400mm
• Trademark：Bohwa
• Origin：China
• HS Code：84304900
• Production Capacity：25sets,Month

Basic Info.

Model NO. GY-100/150C Drill Hole Depth 100-150m Bit Type Diamond Bit Drilling Way Rotary Weight 520kg Power 11kw Max. Spindle Speed 688rpm Transport Package Wooden Case or Others Specification 1600x760x1400mm Trademark Bohwa Origin China HS Code 84304900 Production Capacity 25sets/Month

Product Description

Portable Mining Core Sample Drill Rig Machine
Qingdao Bohwa Geotechnical Drilling Rig Depth 100m for Railway Hydropower Dam Construction

Application

Exploration core drilling rig, type GY-100/150C is widely used in the constructions of railways, highways, bridges, tunnels, and basic prospecting for civil and industrial buildings and hydropower projects. In addition, it can be used in drilling for landslide remediation, anchoring hole for rock reinforcement, blasting engineering and rescue engineering. The drilling depth is 0-150m.

Technical Specification


No.	Specification	Data
1	Berehole Diameter(mm)	Φ150 / Φ130 / Φ110 / Φ91 / Φ75
2	Drilling Depth(m)	30 / 50 / 70 / 100 / 150
3	Drilling Angle Range	0 °- 90  °
4	Spindle Speed(r/min)	90 / 191 / 360 / 600
5	Spindle Maximum Force(kN)	27
6	Spindle Travel(mm)	450
7	Hoist Maximum Lifting Force for Single Cable(kN)	14.7
8	Hoist lifting speed(m/s)	0.45 / 1 / 1.07
9	Hoist Steel Cable capacity(m)	25m (Steel Cable Diameter: 9.3mm)
10	Oil Pump	CBK1020
11	Diesel Engine	Model No. S1100 / 11kW / 2200r/min
12	Overall Dimensions(mm)	1600x760x1400mm
13	Est. Gross Weight (Not Including Diesel Engine)	520KG

Note: Drilling Depth Varies as per the different rock formation;

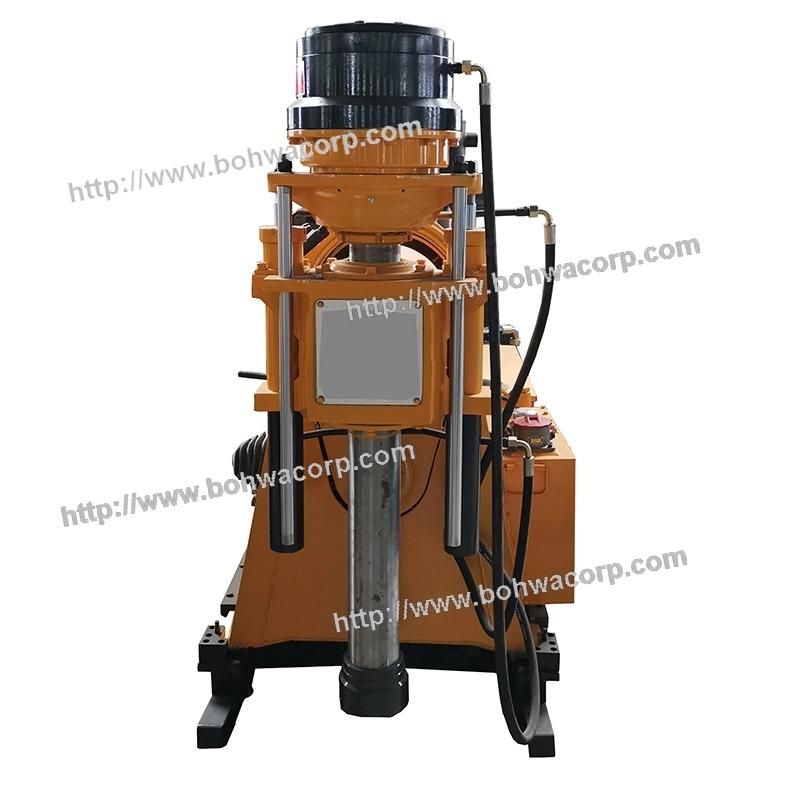

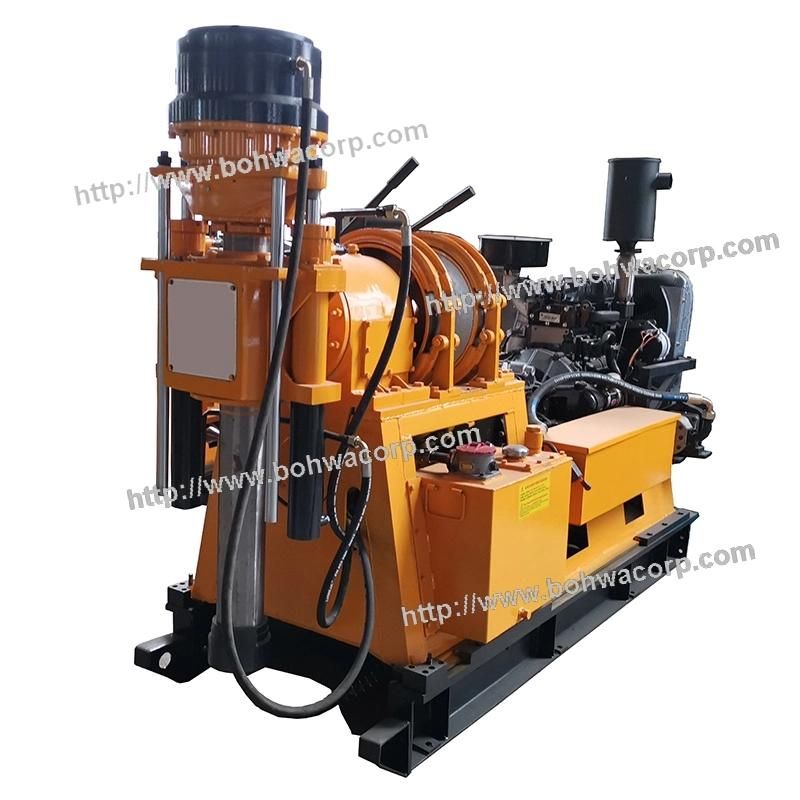

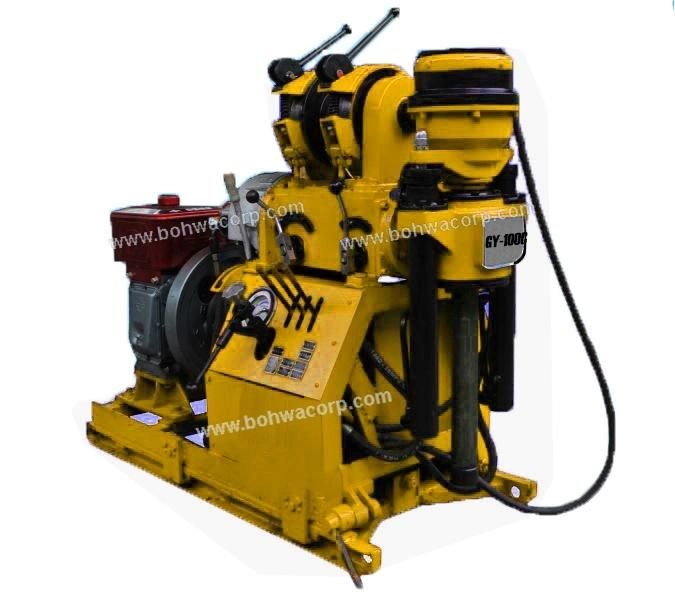

Drilling Machine Photos

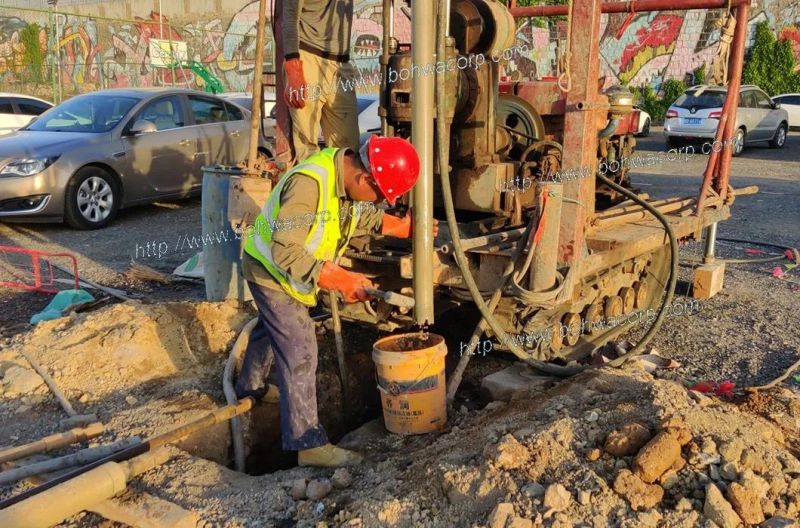

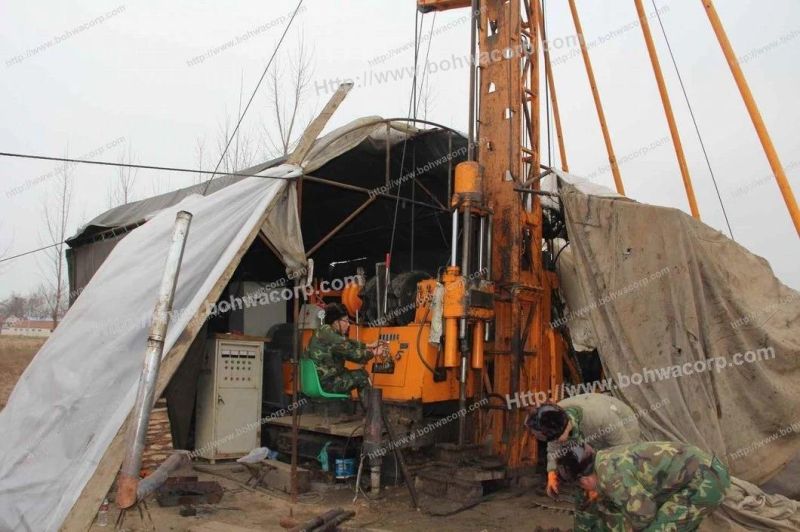

In Drilling Construction and Shipment

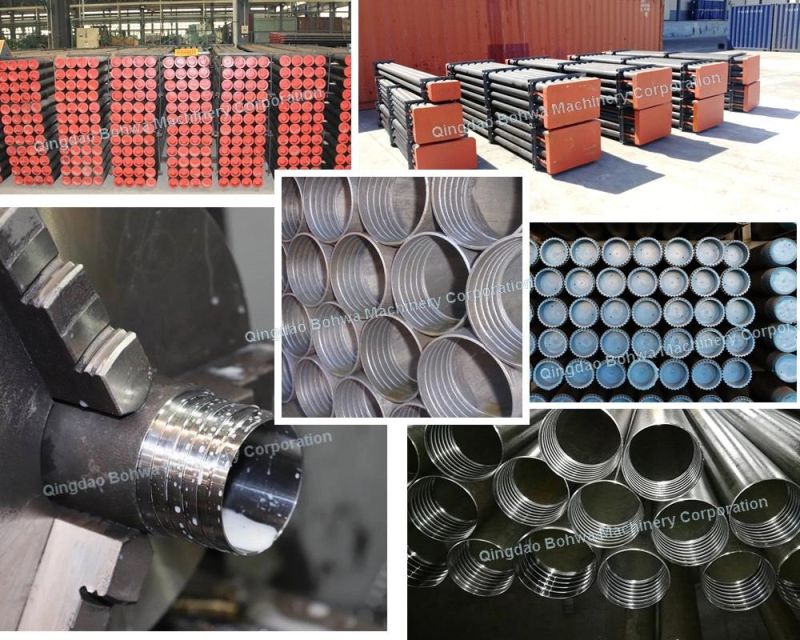

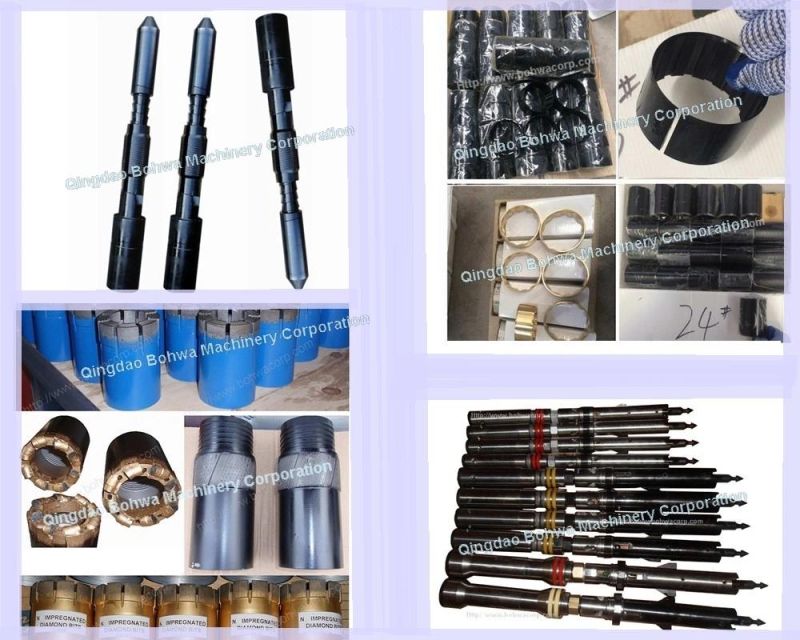

Related Drilling Tools
