Dr-90 Foundation Pile Drilling Machine Bore Pile Drilling Machine

Shandong Yahe Construction Machinery Co., Ltd.
  • After-sales Service：Video
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：10-30m

Base Info

  • Model NO.：DR-90
  • Bit Type：Cone Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Usage：Pile Driver,Drill Hole Flling Pile Construction
  • Engine：Cummins
  • Drilling Diameter：500-1600mm
  • Power Source：Diesel
  • Drill Tools：Two Drill Bit for Free
  • Weight：14t
  • Chassis Length：3700mm
  • Track Width：600mm
  • Loading Port：Qingdao
  • Engine Power：110kw
  • Drill Rod：Kelly Bar
  • Depth：15m
  • Keyword：Small Pile Driver
  • Product Name：Dr-90 Rotary Drilling Rig
  • MOQ：1 Set
  • Transport Package：Rotary Drillingrig Package According to The Custom
  • Specification：9600mm*2300mm*3200mm
  • Trademark：yahe heavy industry
  • Origin：China
  • HS Code：8430509000
  • Production Capacity：20 Sets,Month

Description

Basic Info.

Model NO. DR-90 Bit Type Cone Bit Drilling Way Rotary Type Crawler Usage Pile Driver,Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1600mm Power Source Diesel Drill Tools Two Drill Bit for Free Weight 14t Chassis Length 3700mm Track Width 600mm Loading Port Qingdao Engine Power 110kw Drill Rod Kelly Bar Depth 15m Keyword Small Pile Driver Product Name Dr-90 Rotary Drilling Rig MOQ 1 Set Transport Package Rotary Drillingrig Package According to The Custom Specification 9600mm*2300mm*3200mm Trademark yahe heavy industry Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

                                                   DR-90 Kelly Bar Rotary Drilling Rig

Product Details
The overall structure of the drilling rig is compact and compact, and it is mostly used for small-scale engineering construction. The maximum drilling depth of the drilling rig is 15m, and the drilling diameter is 450-1500mm. It can be used with various types of drill bits for construction. It is suitable for drilling and excavating sand and clay, and drilling through the surface of concrete.


Parameter

modelDR-90
Working modehydraulic oil cylinder pressure
Drilling diameter (mm)Φ500-Φ1600
drilling depth (m)5-15m
Diamension (mm)9600X2300X3200mm
Total weight (t)17T
Power head max output torque (KN.m)90KN.m
Rotary speed (r/min)10-50RPM
Main winch max lifting force120KN
Main winch max lifting speed50m/min
Assisting winch max lifting force15KN
Assiting winch max lifting speed50m/min
Mast sidewards inclination±4°
Mast forwards inclination4°
Max working pressure32Mpa
pilot pressure3.5Mpa
Travelling speed (km/h)2 km/h
Diesel engine power (KW)110KW ,cummins ,water cooling ,turbo charger

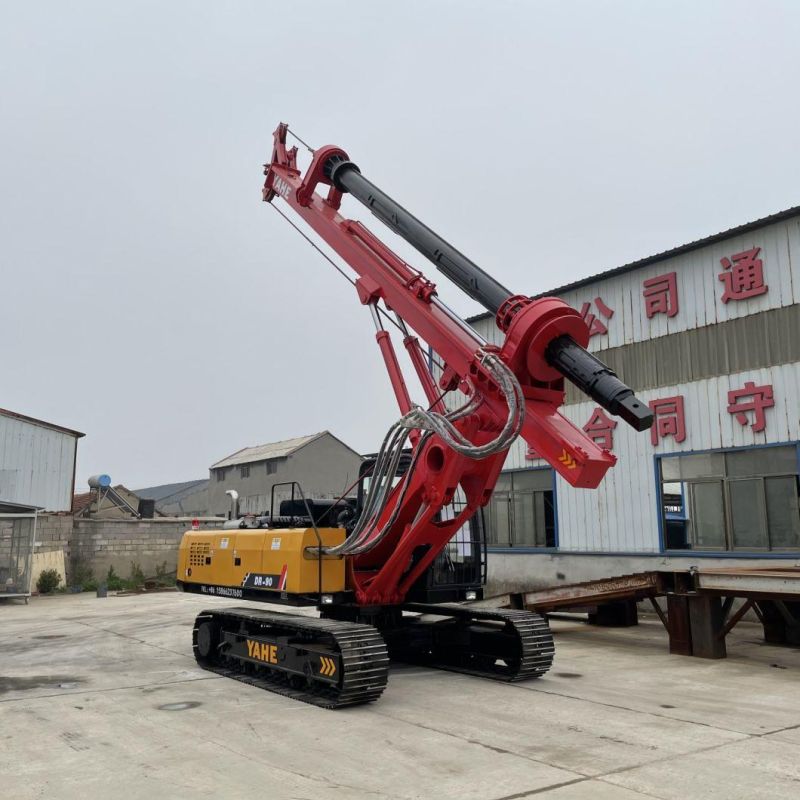

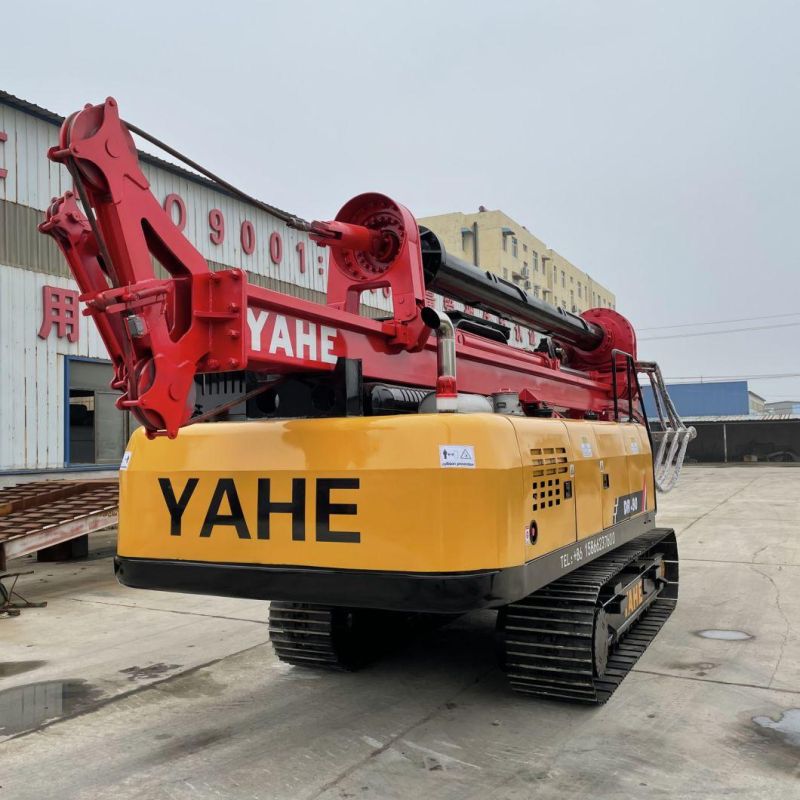

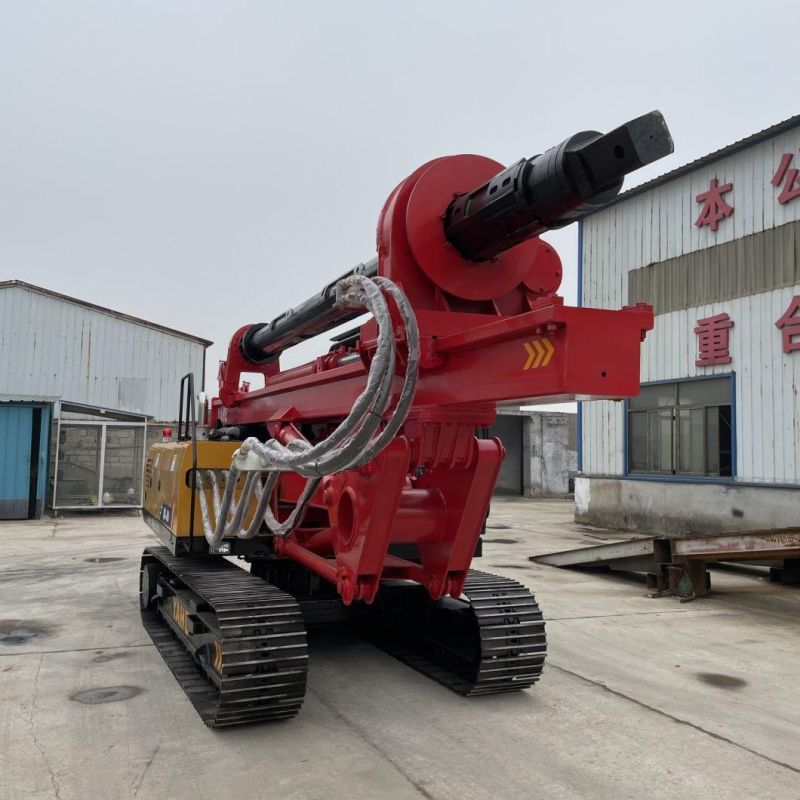

 Machine Photos
Dr-90 Foundation Pile Drilling Machine Bore Pile Drilling MachineDr-90 Foundation Pile Drilling Machine Bore Pile Drilling MachineDr-90 Foundation Pile Drilling Machine Bore Pile Drilling Machine
Dr-90 Foundation Pile Drilling Machine Bore Pile Drilling MachineDr-90 Foundation Pile Drilling Machine Bore Pile Drilling Machine

Certification

We have many certificates, support verification, we export more than 30 countries!
Dr-90 Foundation Pile Drilling Machine Bore Pile Drilling Machine

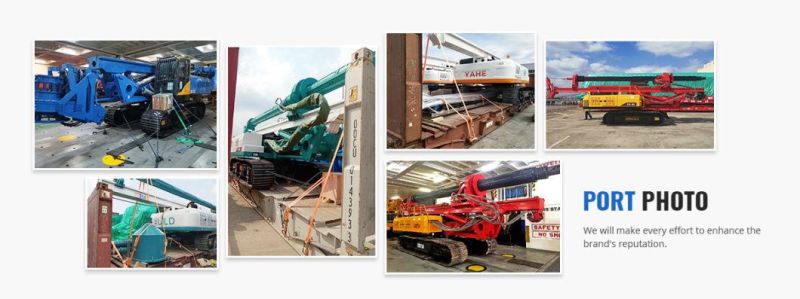

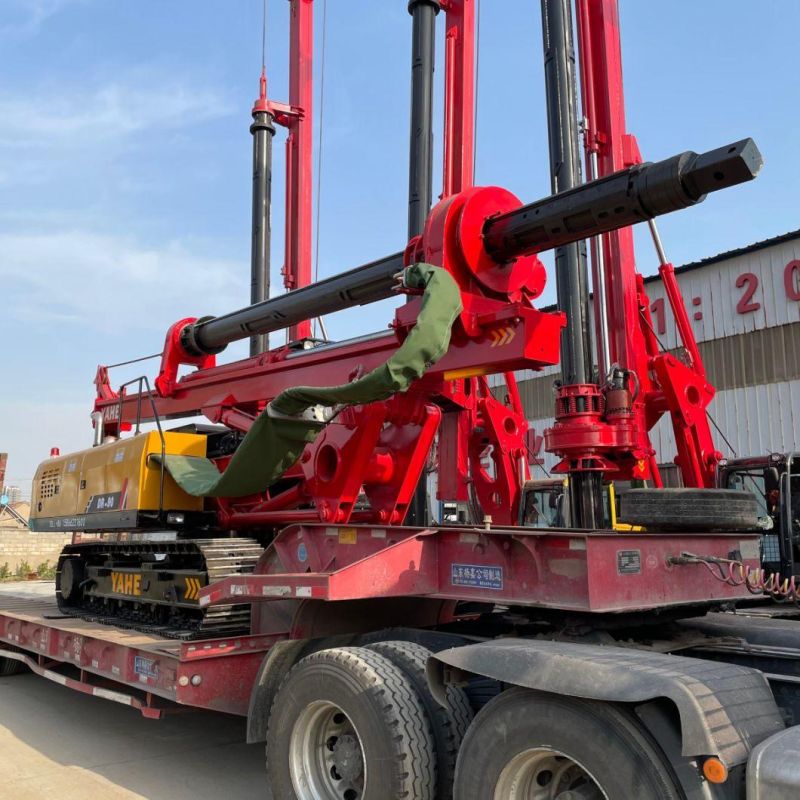

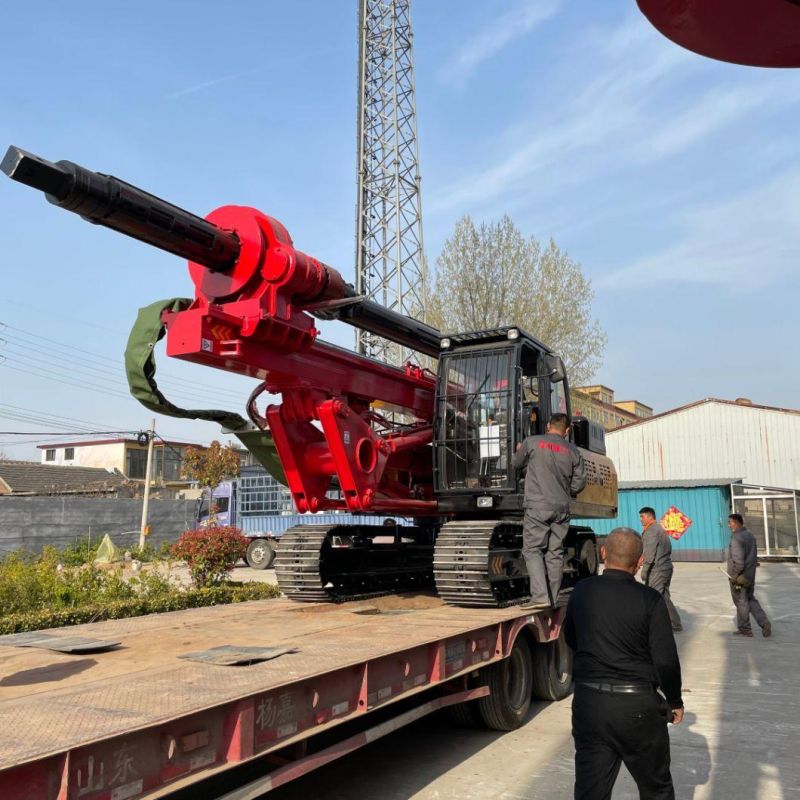

Transport
At present, there are three ways to transport rotary drilling rig: special equipment frame box, RO ro ship and bulk carrier. Generally speaking, they are the first two. Although the price is a little expensive, compared with bulk carriers, they are very safe. We will arrange port personnel to take reinforcement photos in each link. If customers need, we can send them by email.
Dr-90 Foundation Pile Drilling Machine Bore Pile Drilling Machine

Exhibition
We have been committed to participate in a variety of offline exhibitions, not only for the sale of our rig, but also for continuous learning. We are committed to the world, launched "rotary drilling rig, made in China!"
Dr-90 Foundation Pile Drilling Machine Bore Pile Drilling MachineCustomer photo
Welcome customers from all over the world to visit our factory. We will provide accommodation for customers free of charge and give them operation demonstration on site. Customer satisfaction is our greatest hope.

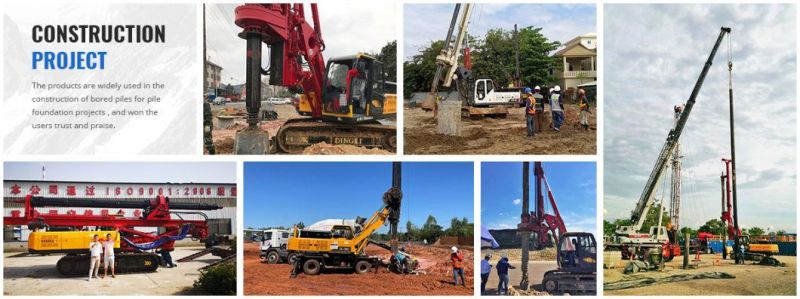

Dr-90 Foundation Pile Drilling Machine Bore Pile Drilling MachineWorking photo
Thank you for your feedback. We currently export to 40 countries around the world. Our biggest advantage is that we are a rotary drilling rig manufacturer, which can reduce the price difference made by middlemen and import independently!
 Dr-90 Foundation Pile Drilling Machine Bore Pile Drilling Machine
 FAQ

1.Q: Are you a manufacturer?
 A: Yes, we are a professional rotary drilling rig  manufacturer.
2.Q: What does your company produce?
 A: The main products of our company include rotary drilling rig.
3.Q: How about your delivery time?
 A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?
A: We accept T/T, L/C.
5.Q: Do you offer any deals or discounts?
 A: Yes, price depends on different quantity, different quantity will give you different price
