Drilling Rig

150m Pile Borehole Spt Core Drilling Drill Machine

Qingdao Bohwa Machinery Corporation
  • After-sales Service:Available
  • Warranty:1 Year
  • Certification:ISO 9001:2000
  • Condition:New
  • Motor:Diesel Engine or Electrical Motor
  • Drill Hole Diameter:100-150mm

Base Info

  • Model NO.:GY-150C
  • Drill Hole Depth:100-150m
  • Bit Type:Diamond Bit
  • Drilling Way:Rotary
  • Weight:520kg
  • Power:11kw
  • Max. Spindle Speed:688rpm
  • Transport Package:Wooden Case or Others
  • Specification:1600x760x1400mm
  • Trademark:Bohwa
  • Origin:China
  • HS Code:84304900
  • Production Capacity:25sets,Month

Description

Basic Info.

Model NO. GY-150C Drill Hole Depth 100-150m Bit Type Diamond Bit Drilling Way Rotary Weight 520kg Power 11kw Max. Spindle Speed 688rpm Transport Package Wooden Case or Others Specification 1600x760x1400mm Trademark Bohwa Origin China HS Code 84304900 Production Capacity 25sets/Month

Product Description

150m Pile Borehole SPT Core Drilling Drill Machine
Qingdao Bohwa Geotechnical Drilling Rig Depth 100m for Railway Hydropower Dam Construction


Application

Exploration core drilling rig, type GY-150C is widely used in the constructions of railways, highways, bridges, tunnels, and basic prospecting for civil and industrial buildings and hydropower projects. In addition, it can be used in drilling for landslide remediation, anchoring hole for rock reinforcement, blasting engineering and rescue engineering. The drilling depth is 0-150m.

Technical Specification

No.SpecificationData
1Berehole Diameter(mm)Φ150 / Φ130 / Φ110 / Φ91 / Φ75
2Drilling Depth(m)30 / 50 / 70 / 100 / 150
3Drilling Angle Range0 °- 90  °
4Spindle Speed(r/min)90 / 191 / 360 / 600
5Spindle Maximum Force(kN)27
6Spindle Travel(mm)450
7Hoist Maximum Lifting Force for Single Cable(kN)14.7
8Hoist lifting speed(m/s)0.45 / 1 / 1.07
9Hoist Steel Cable capacity(m)25m (Steel Cable Diameter: 9.3mm)
10Oil PumpCBK1020
11Diesel EngineModel No. S1100 / 11kW / 2200r/min
12Overall Dimensions(mm)1600x760x1400mm
13Est. Gross Weight (Not Including Diesel Engine)520KG


Note: Drilling Depth Varies as per the different rock formation;

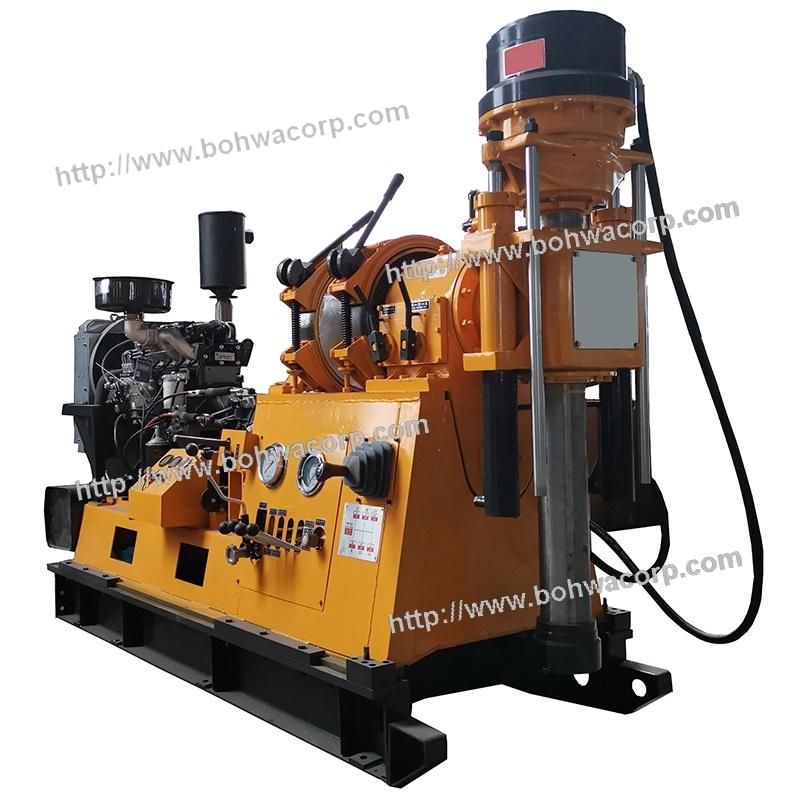

Drilling Machine Photos
150m Pile Borehole Spt Core Drilling Drill Machine

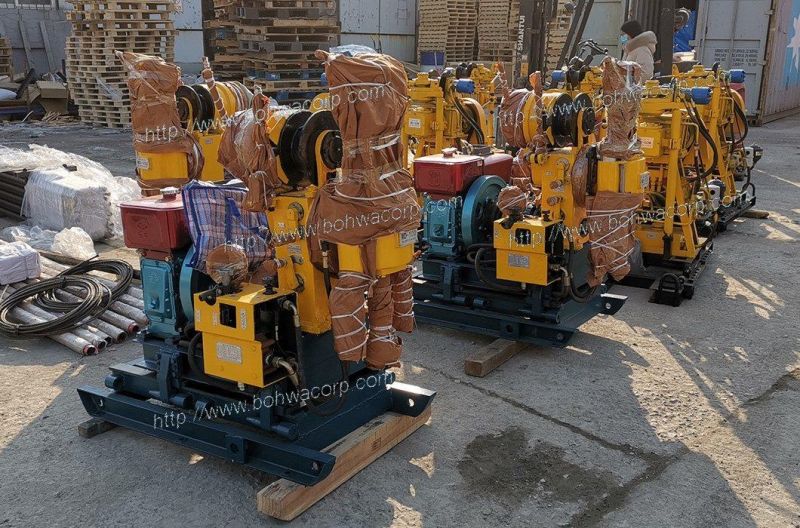

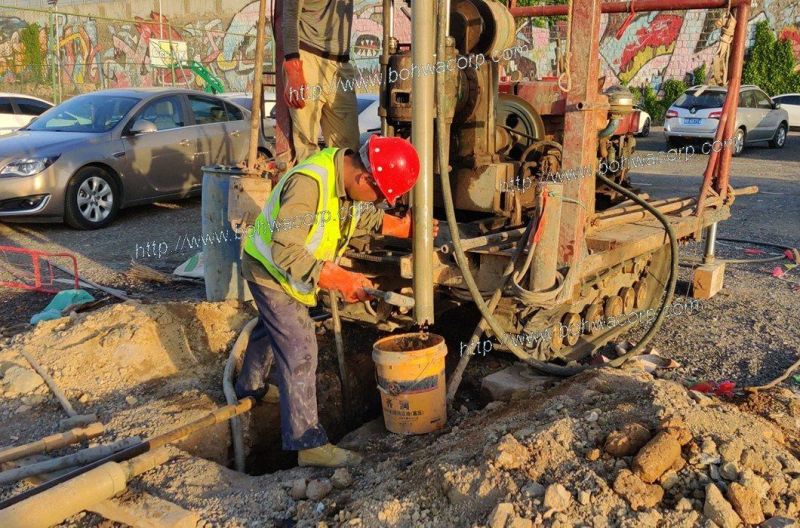

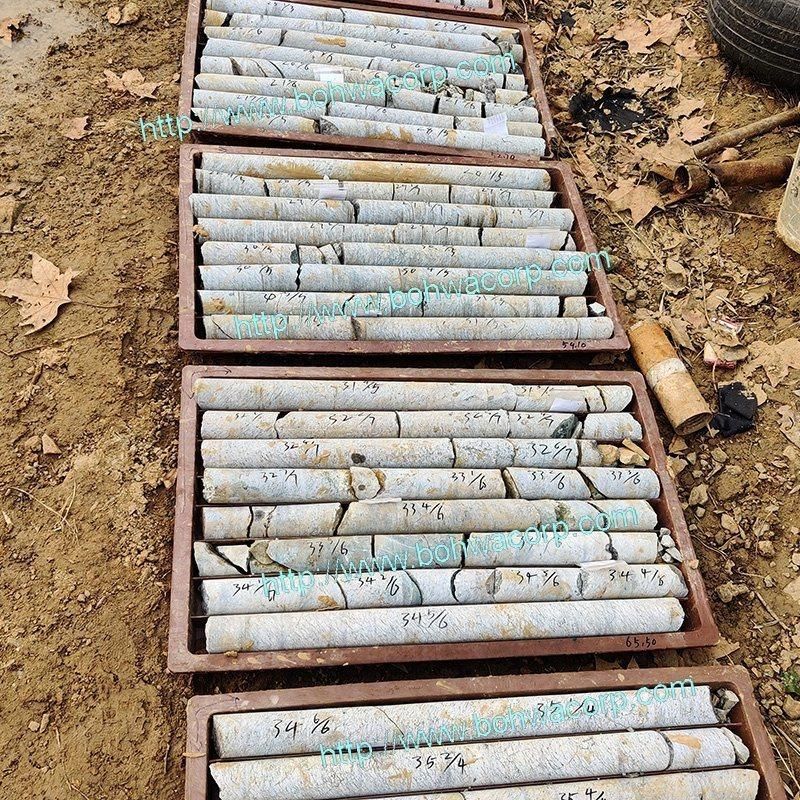

150m Pile Borehole Spt Core Drilling Drill Machine150m Pile Borehole Spt Core Drilling Drill Machine150m Pile Borehole Spt Core Drilling Drill MachineIn Drilling Construction and Shipment

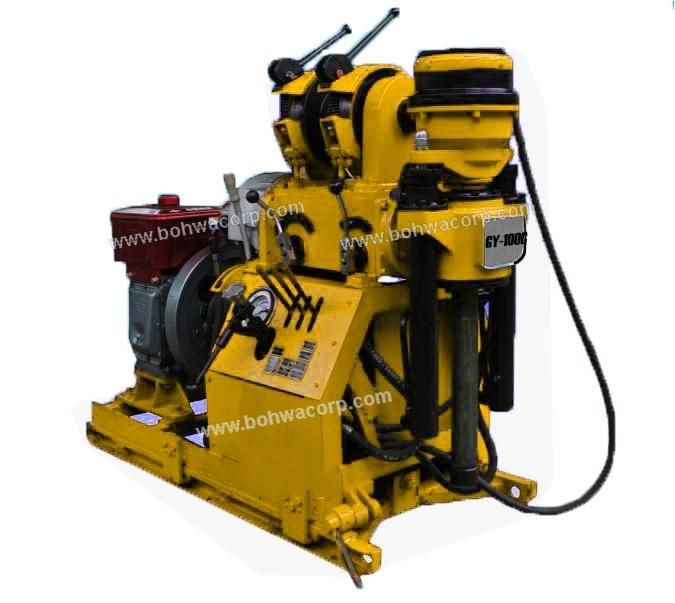

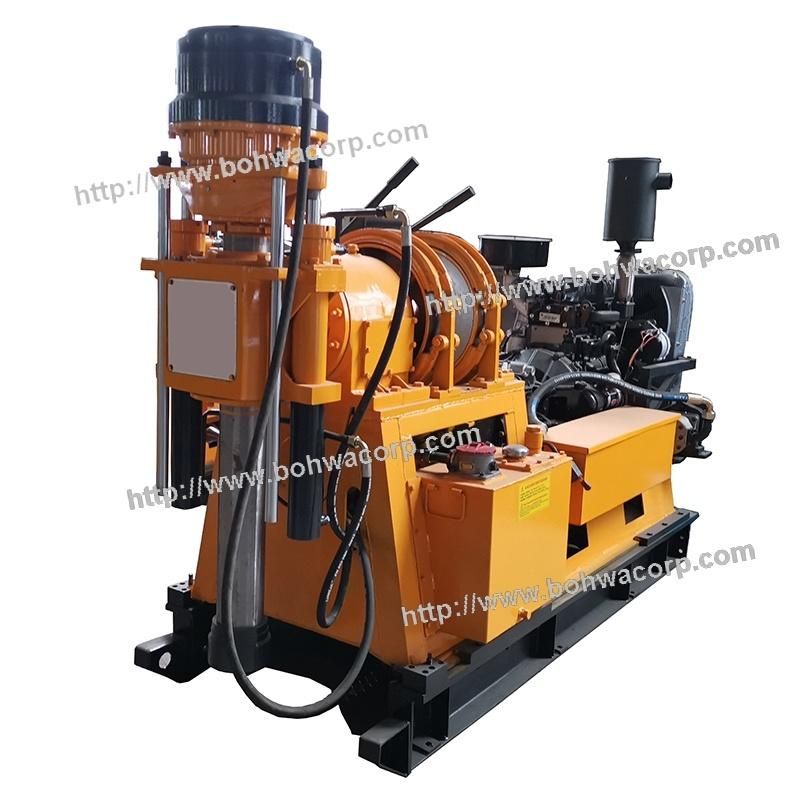

150m Pile Borehole Spt Core Drilling Drill Machine150m Pile Borehole Spt Core Drilling Drill Machine

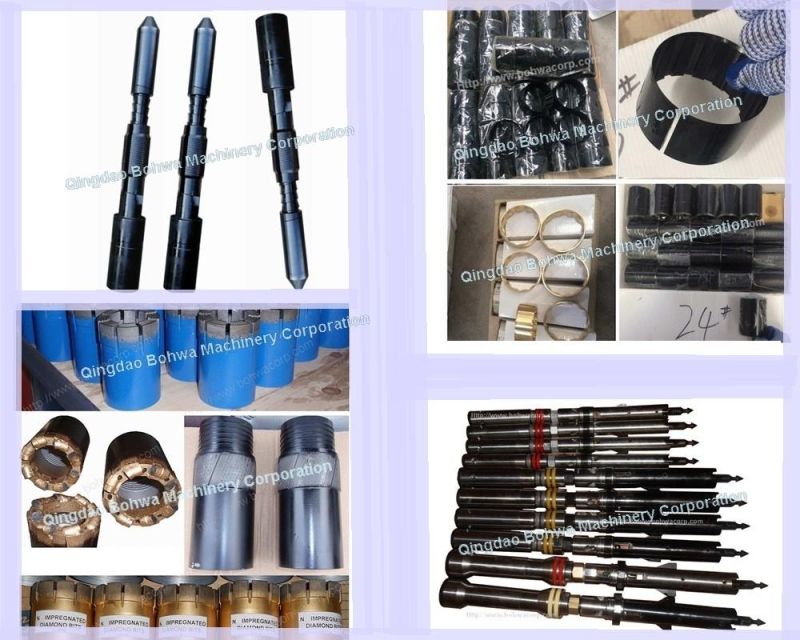

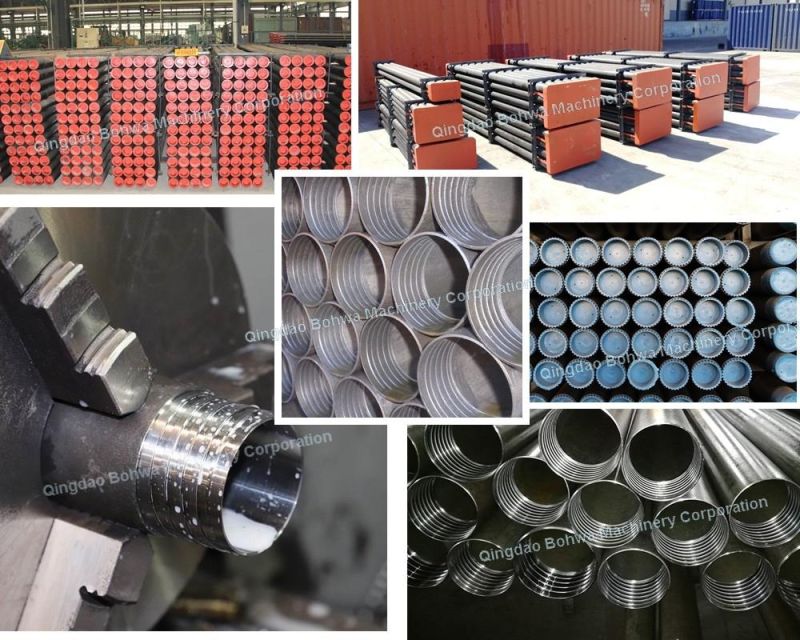

Related Drilling Tools

150m Pile Borehole Spt Core Drilling Drill Machine150m Pile Borehole Spt Core Drilling Drill Machine
150m Pile Borehole Spt Core Drilling Drill Machine150m Pile Borehole Spt Core Drilling Drill Machine
