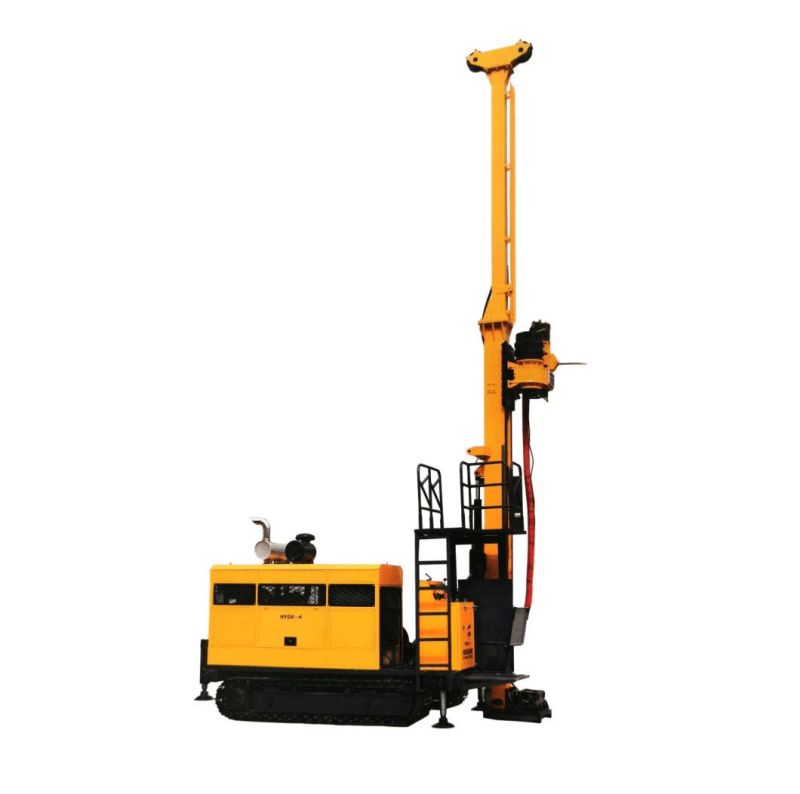

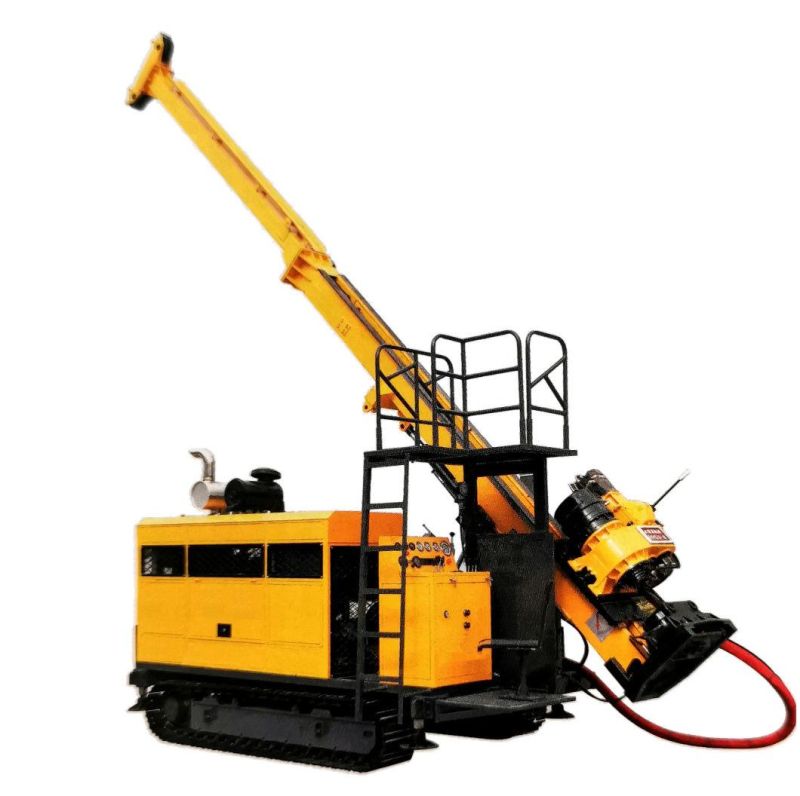

Dx4 Crawler Mining Diamond Core Drilling Rigs for Sale

Glorytek Industry (Beijing) Co., Ltd.
  • Certification：CE
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：100-150m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary

Base Info

  • Model NO.：DX4 crawler
  • Item：Dx4 Crawler
  • Diesel Engine Model：Cummins 6BTA5.9-C180
  • Diesel Power：132kw
  • Diesel Speed：2200rpm
  • Drill Tbq：1000m
  • Drill Tnq：700m
  • Drill Thq：500m
  • Weight：9300kg
  • Mast Height：11m
  • Feeding Stroke：3500mm
  • Dimensions(Lxwxh)：6250X2200X2730mm
  • Mud Pump Model：Bw-150
  • Usage：Core
  • Transport Package：Standard Export Packing
  • Specification：SGS
  • Trademark：GLORYTEK
  • Origin：China
  • Production Capacity：3000 Sets Per Mouth

Description

 ModelDX-4 full hydraulicDiesel EngineModelcummins 6BTA5.9-C180Power132kWSpeed2200rpmDrilling CapacityBQ1000mNQ700mHQ500mRotator CapacityRPMFour Shifts/Changeable Stepless0-1100rpm Max.Torque4200N·mHold DiameterΦ98mmMax.Lifting Capacity of Spindle150kNMax.Feeding Power60kNCapacity of Main HoistHoisting Force(singlee wire)57kNSteel Wire Diameter12mmSteel Wire Length50mCapacity of Steel Wire HoistHoisting Force(singlee wire)12kN (Bare drum)Steel Wire Diameter6mmSteel Wire Length1000mMastMast Height11mMast Adjusting Angle0°-90°Drilling Angle45°-90°Feeding Stroke3500mmSlippage Stroke600mmOtherWeight9300kgDimensions(L×W×H)Main equipment 5100×2200×2890mmTransport WayCrawlerMud PumpModelBW-150Foot dampClamping Scope55.5-110mm(standard hole size Φ154mm)Dx4 Crawler Mining Diamond Core Drilling Rigs for Sale
