• Model NO.：GL-IIA
• Drilling Way：Rotary
• Type：Trailer Mounted
• Application：Water Well, Geothermal Well, etc.
• Transport Package：Standard Packing
• Specification：5300*2000*7200mm
• Trademark：Glorytek
• Origin：Beijing, China
• HS Code：8430412100
• Production Capacity：20sets , Month

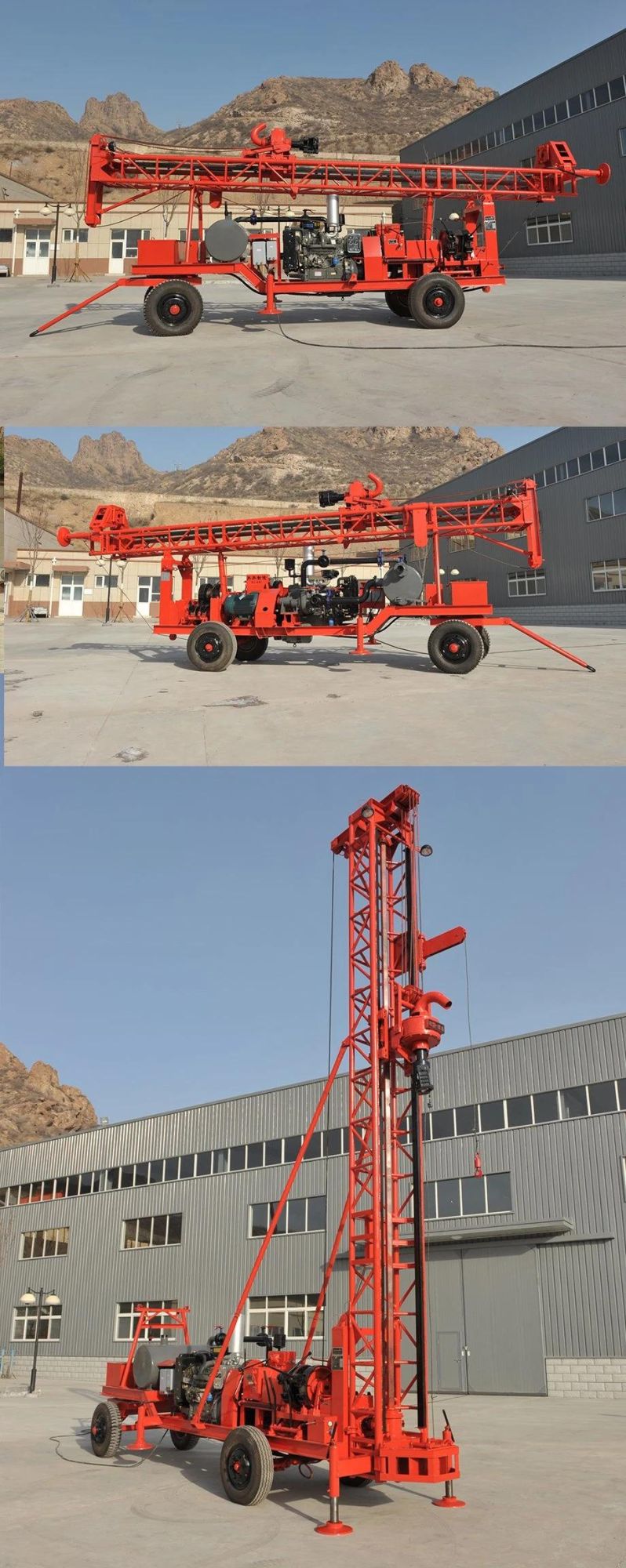

Drilling ParameterHole diameter :90-1200(mm) Hole depth :250(m)Run Of Rod :3,4(m)Drill rod diameter :φ73  φ89  φ95  φ133(mm)Drilling Technology :Normal and Reverse Circulation for both Mud and AirDown‐The‐Hole hammers: Middle‐High‐Pressure AirPerformance ParameterDrill Head Inside Diameter :φ80       φ120Drill Head lifting speed(m/s) :0.37      0.16Drill Head lifting Force(kN) :45.4      105Drill Head Spin Speed:A(Forward:14-23-52-84,Reverse:8-13-29-47r/min)B(Forward:32-52-116-188,Reverse:18-29-65-106r/min)Shape ParametersDimensions:(L-W-H) Working conditions 5300×2000×7200(mm)Transport status: (L-W-H) 7900×2000×3000(mm)Supporting Form :Mechanical ScrewMast Up‐Down :Hydraulic TypeRig mass:3800(Kg)Chassis :Trailer with four wheelsPower Unit :Diesel EnginePower:49(kW)Mud pump :LBN-20 Normal and Reverse Circulation Pump GroupFlow(m³/h) :  80Main Hoist Lifting Force:20.6(kN)Auxiliary Hoist Lifting Force: 0-15(kN)Notes: Drill head spin speed can be selected, A is normal Pictures

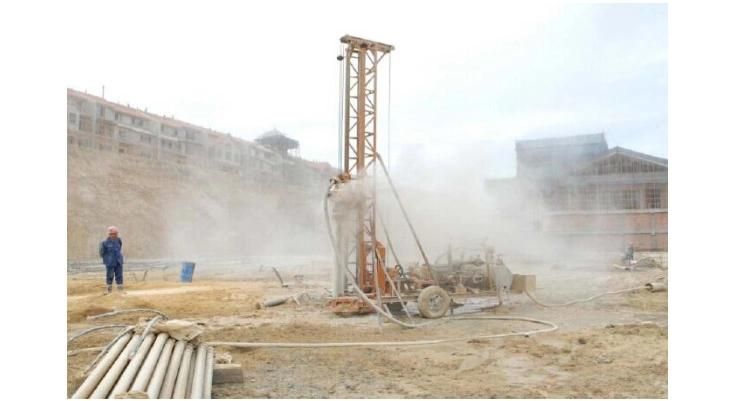

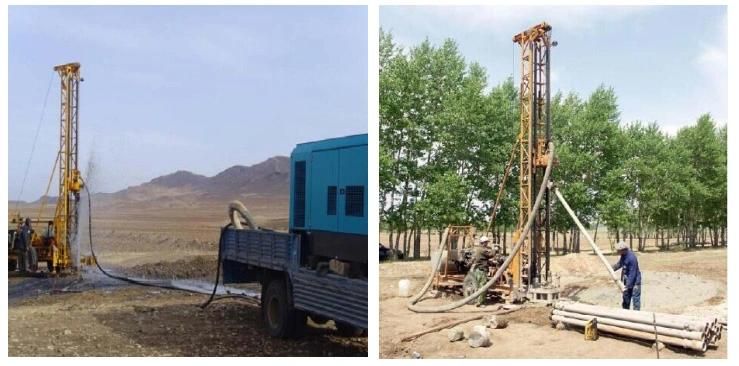

Main Application of GL-IIA Water Well Drilling Rig

> Drilling wells for urban and rural life > Drilling wells for agricultural irrigation and industries  > Drilling for geotechnical survey > Drilling construction engineering holes > Drilling geothermal pump wells

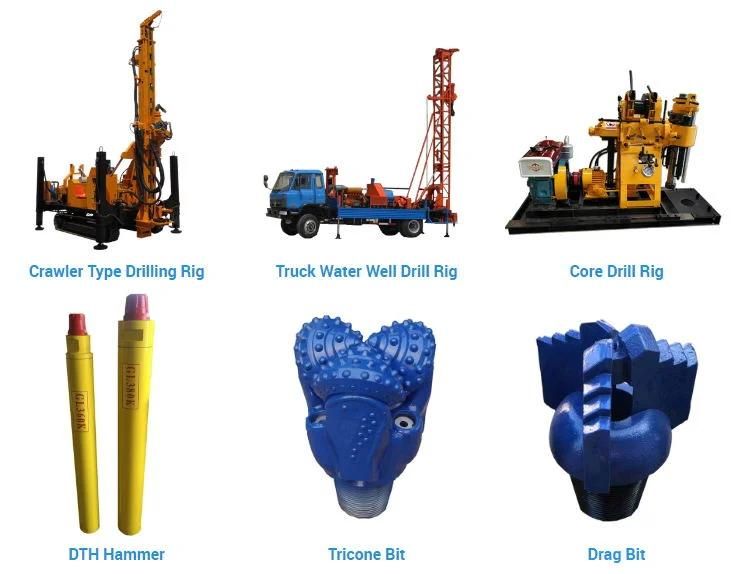

Related Products of GL-IIA Water Well Drilling Rig

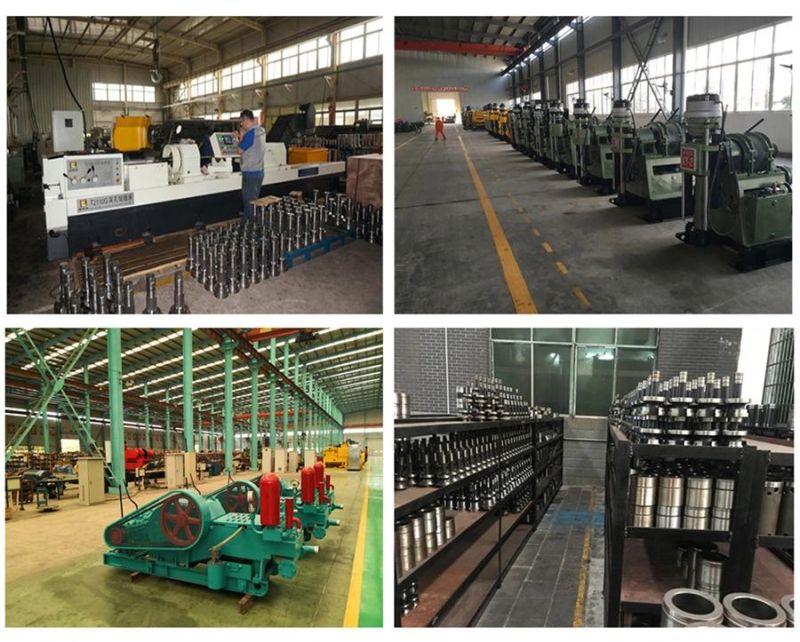

 Company Profile

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.



Exhibition



Certifications



Customer Photos



After-sale Warranty

(1)Within the period of the first year after delivery, the main parts are guaranteed to be supplied free of charge once the problem caused by the quality issue.

(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.

(3)Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?

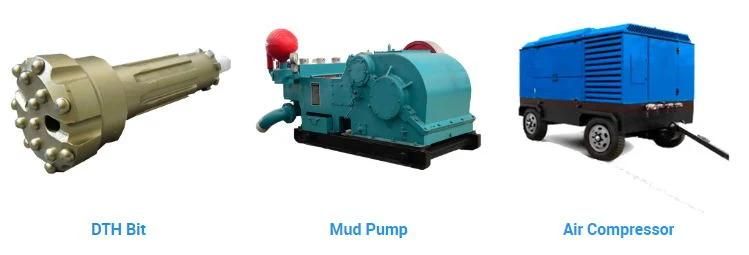

A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
