New Design Folded Water Well Drilling Machine
Shandong JK Machinery Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：140-254mm
- Drill Hole Depth：200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：JK-DR 200X
- Drilling Way：Rotary
- Type：Crawler
- Power Type：Diesel
- Usage：Water Well
- Voltage：24 V
- Weight：4.7 T
- Warranty：1 Year
- Transport Package：20gp
- Specification：4000*1700*2200mm
- Trademark：SDJK
- Origin：Shang Dong
- HS Code：8430412100
- Production Capacity：100sets,Month
Description

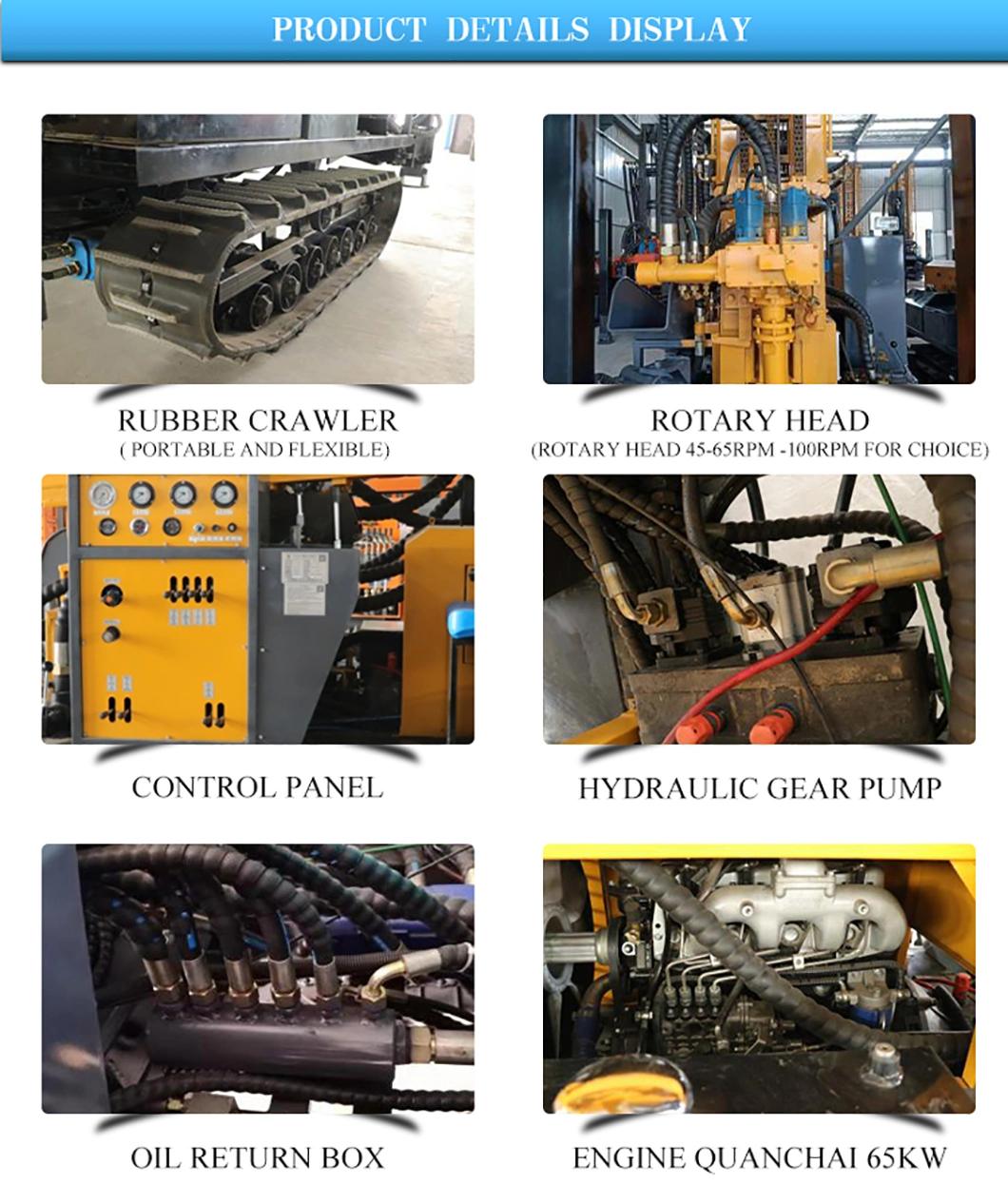

1. The engine uses QUANCHAI 65KWturbocharged engine;
2. Walking travel: crawler mounted ,trailer mounted for choice.
3. Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Power head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 3.4m long stroke, double cylinder lift capacity 13 ton
7. Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
