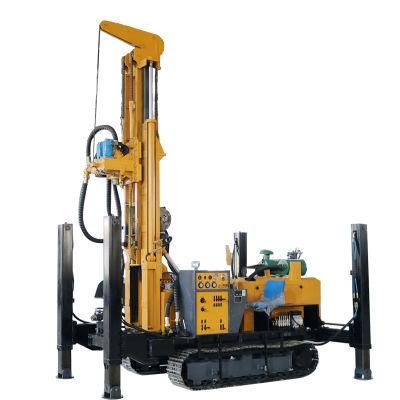

Jk-Dr600 DTH Pneumatic Rotary Water Well Drilling Rig for Sale in India

Shandong JK Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：140-350mm
  • Drill Hole Depth：600m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：JK-DR600
  • Drilling Way：Rotary
  • Type：Crawler
  • Usage：Water Well
  • Voltage：24V
  • Weight：12t
  • Warranty：1 Year
  • Power Type：Diesel
  • Product Name：Water Well Drilling Rig
  • Power：132kw

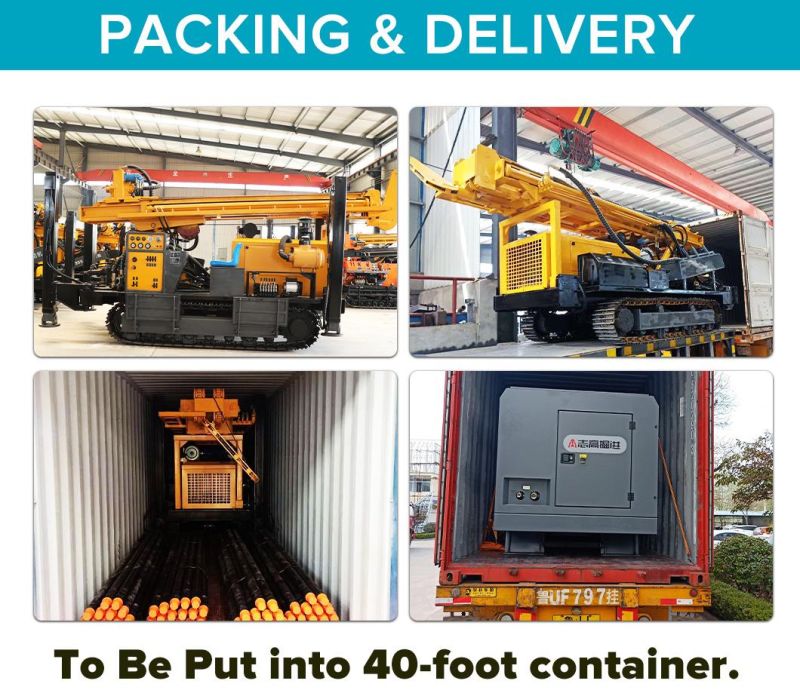

  • Transport Package：40hc
  • Specification：6000*2200*2850mm
  • Trademark：SDJK
  • Origin：Shandong
  • HS Code：8430412100
  • Production Capacity：100sets,Month

Description

The Main Parameters  ModelJK-DR600Weight12T Bore diameter140-350mm Drilling depth600m Stroke6.6m Travelling speed2.5km/h Gradeability30% Power 132KW Rated pressure1.7-3.5mpa Air consumption17-35m³/min Drill rod diameterΦ102, Φ108 , Φ114  Drill rod length1.5m 2.0m 3.0m 6.0m Elevating capacity28T Swing speed45-115rpm Swing torque8500-11000N.M Dimensions6000*2200*2850mmJk-Dr600 DTH Pneumatic Rotary Water Well Drilling Rig for Sale in India
