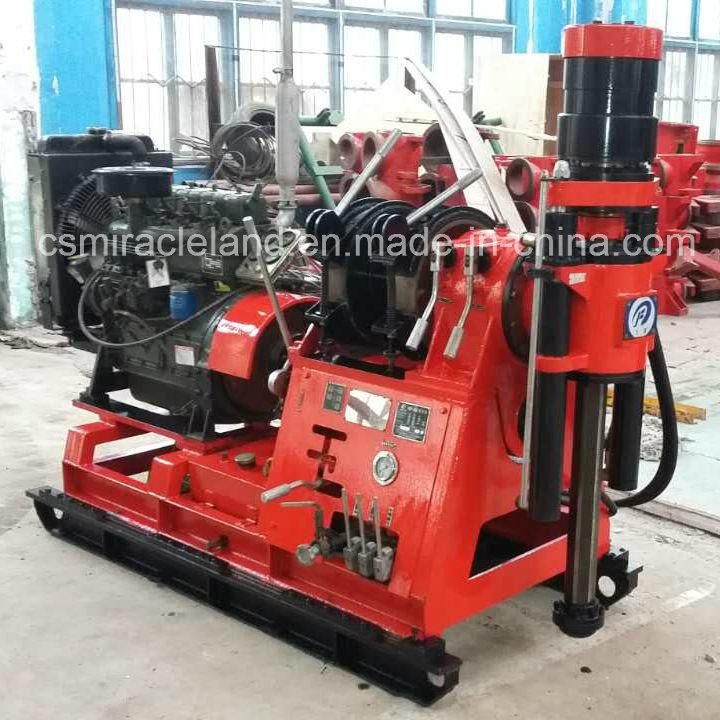

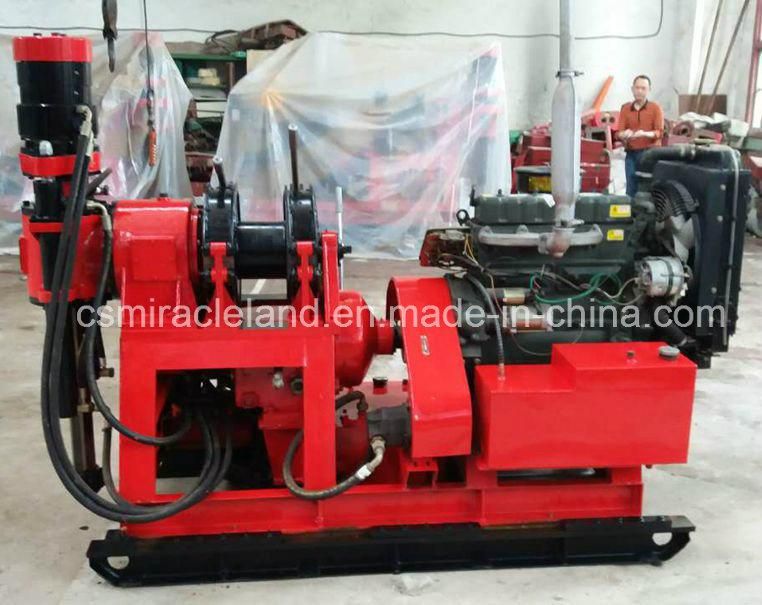

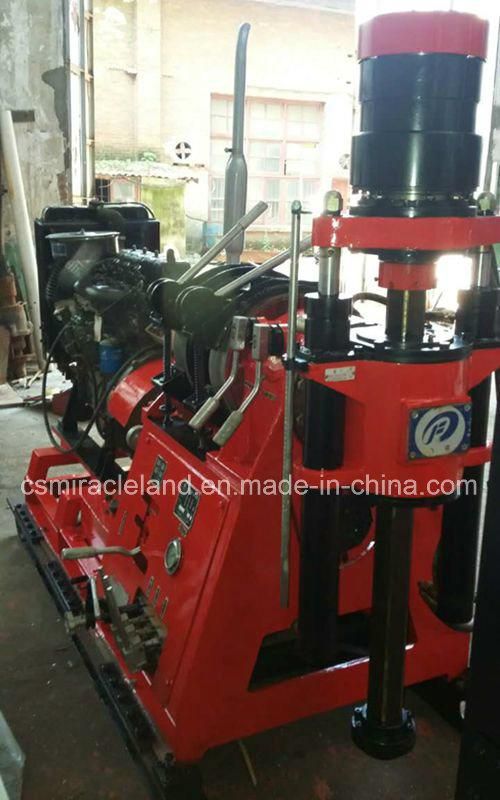

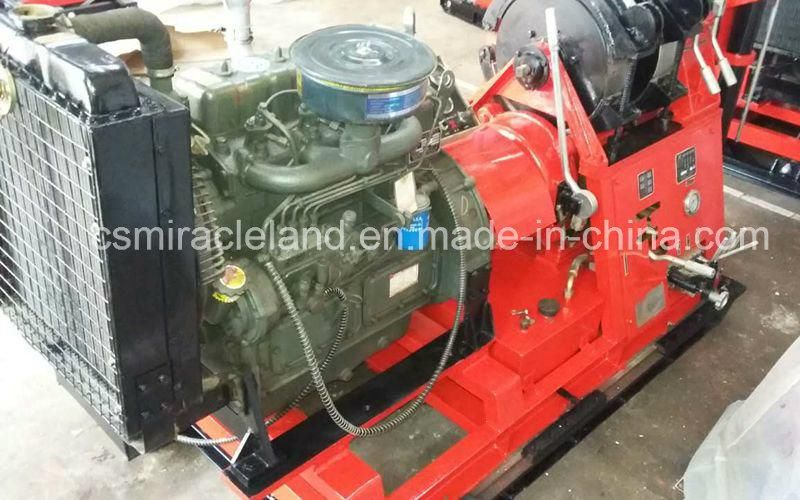

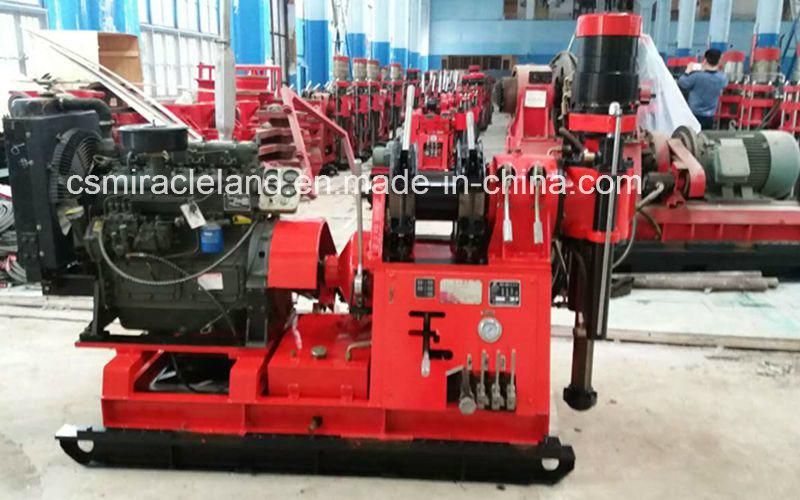

Hydraulic Water Well Drilling Machine (HGY-300)
Changsha Miracleland Import & Export Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：76-300mm
- Drill Hole Depth：300m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HGY-300 Water Well Drilling Rig
- Drilling Way：Rotary
- Type：Vertical Shaft
- Chuck：Hydraulic Chuck
- Quality：High Quality
- Stability：Good
- Transport Package：in New Strong Plywood Case
- Specification：300
- Trademark：csmiracleland
- Origin：Changsha, Hunan, China
- HS Code：8430691900
- Production Capacity：20 Sets, Month
Description
Basic Info.
Model NO. HGY-300 Water Well Drilling Rig Drilling Way Rotary Type Vertical Shaft Chuck Hydraulic Chuck Quality High Quality Stability Good Transport Package in New Strong Plywood Case Specification 300 Trademark csmiracleland Origin Changsha, Hunan, China HS Code 8430691900 Production Capacity 20 Sets/ MonthProduct Description
HGY-300 Water Well Drilling Rig:Drilling depth(m): 300;
Spindle stroke(mm): 530;
Spindle driving force max. (KN): 40;
Spindle lifting power max. (KN): 60;
Single rope lifting power: 30;
Product Features:
Wide range of suitable rotary speed to meet various needs.
Common auto parts, Such as clutch, transmission case and shstructure.
Product Application:
It is widely used in the construction of the projects e. g. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
the technical parameters of the HGY-300 water well drilling rig:
| Type | HGY-300 Drilling Rig |
| Drilling depth(m) | 300 |
| Drilling rod diameter(mm) | Φ50 |
| Head angle range | 0~360° |
| Cylinder stroke(mm) | 400 |
| Spindle speed(r/min) | Positive rotation rate: 34671151892381563075318681094 Reverse rotation rate: 38173 |
| Spindle hole diameter(mm) | Φ65/Φ96 |
| Spindle output torque(N.M) | 3100 |
| Spindle stroke(mm) | 530 |
| Spindle driving force max.(KN) | 40 |
| Spindle lifting power max.(KN) | 60 |
| Lifting speed (m/s) | 0.300.591.011.662.09 |
| Single rope lifting power(KN) | 30 |
| Steel wire rope diameter(mm) | Φ13 |
| Mode of chuck | Full hydraulic chuck or ball-type chuck |
| Weight(power unit excepted)(kg) | 1200 |
| Dimensions(LxWxH)(mm) | 2000x900x1600 |
| Diesel engine | 495D(26.5KW) |
| Electrometer | Y180L-4(22KW) |
