• Model NO.：DR-100
• Type：Crawler or Wheel
• Usage：Pile Driver,Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diameter：500-1800mm
• Power Source：Diesel
• Engine Rated：110kw
• Drill Rod：Kelly Bar
• Chassis Length：3700mm
• Track Width：600mm
• Color：Customized
• Maximum Torque of Power Head：100kn.M
• Drill Tools：500-1500mm Drill Bit
• Transport Status Width：2600mm
• Transport Status Height：3350mm
• Power Head Speed：10-50rpm
• Application：New
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：11500mm*2800mm*3400mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-100 Type Crawler or Wheel Usage Pile Driver,Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1800mm Power Source Diesel Engine Rated 110kw Drill Rod Kelly Bar Chassis Length 3700mm Track Width 600mm Color Customized Maximum Torque of Power Head 100kn.M Drill Tools 500-1500mm Drill Bit Transport Status Width 2600mm Transport Status Height 3350mm Power Head Speed 10-50rpm Application New Transport Package Rotary Drilling Rig Package According to The Custo Specification 11500mm*2800mm*3400mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

The model has obtained a number of product quality and management certifications including ISO, CE, SGS, BV, etc. It is widely used in infrastructure and construction projects. This model is a crawler chassis, diesel powered, 360-degree rotating car body, equipped with Kaili drill pipe, spiral drill, barrel drill, reaming drill, etc.



Parameter

model	DR-100
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-30m
Diamension (mm)	11500X2800X3400mm
Total weight (t)	25T
Power head max output torque (KN.m)	100KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	151KW ,cummins ,water cooling ,turbo charger

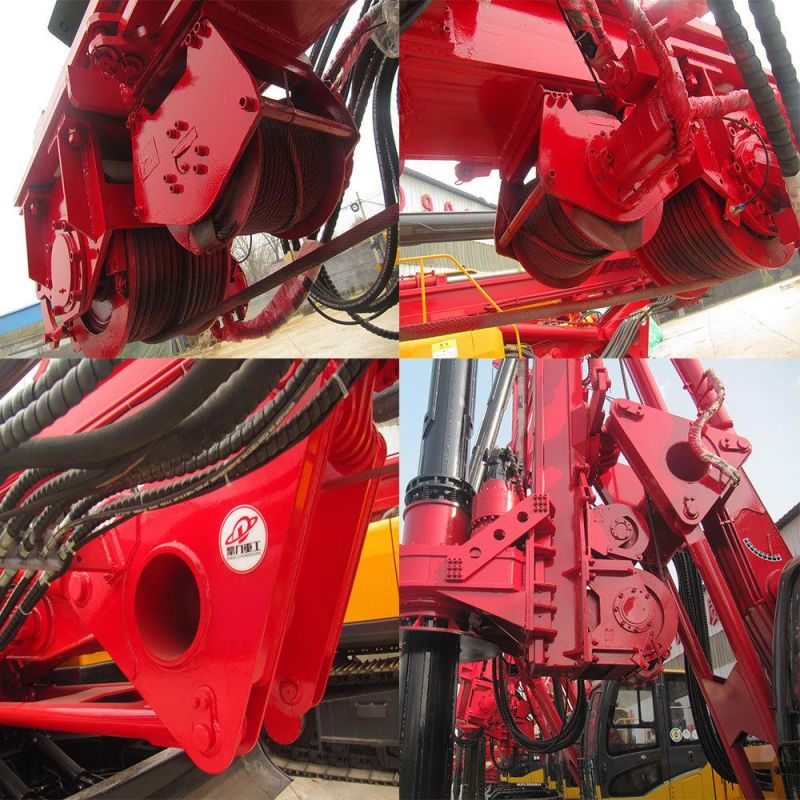

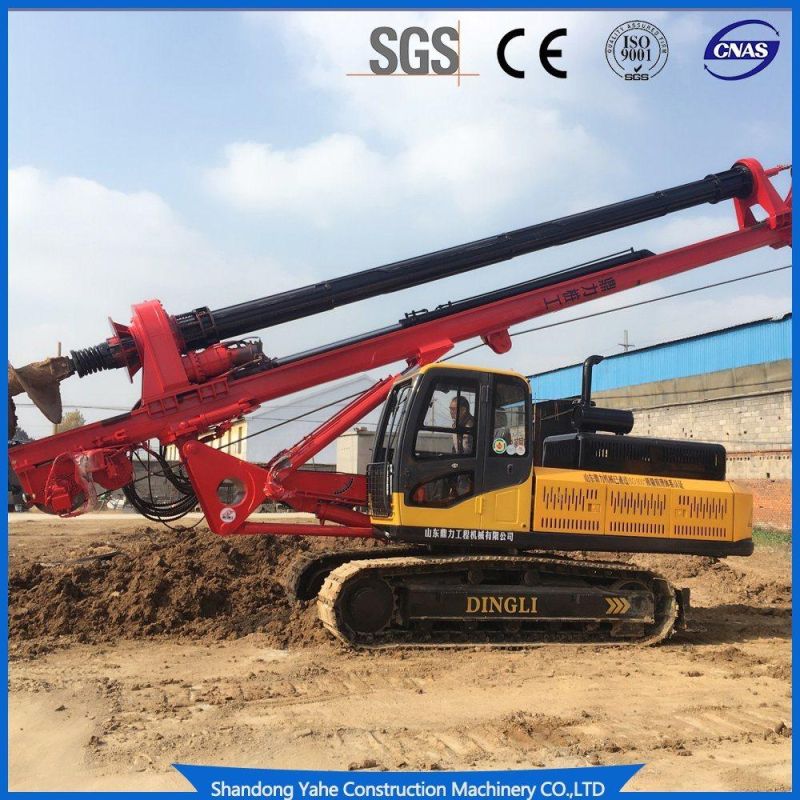

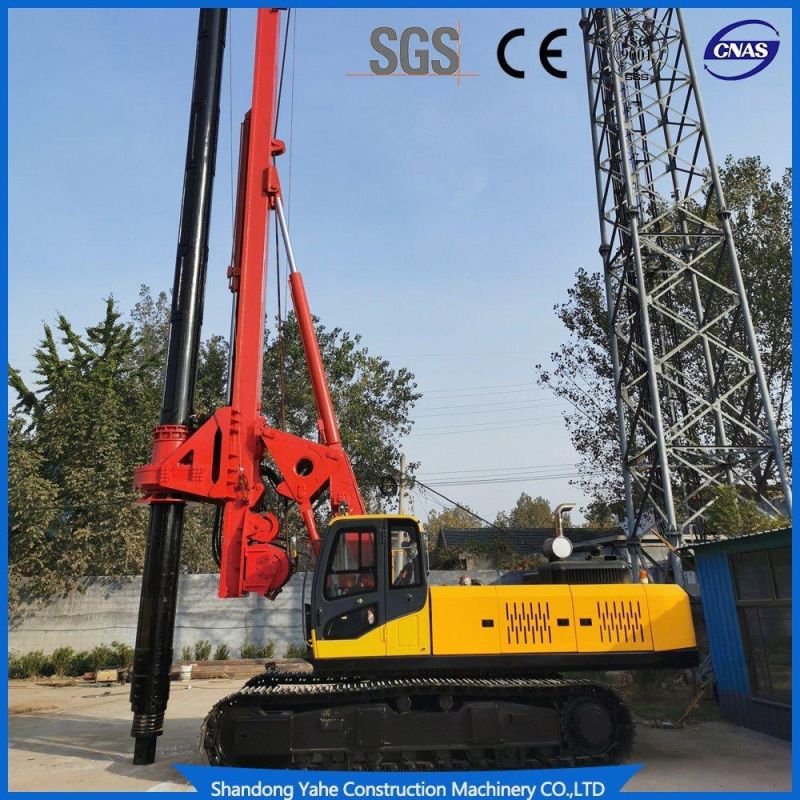

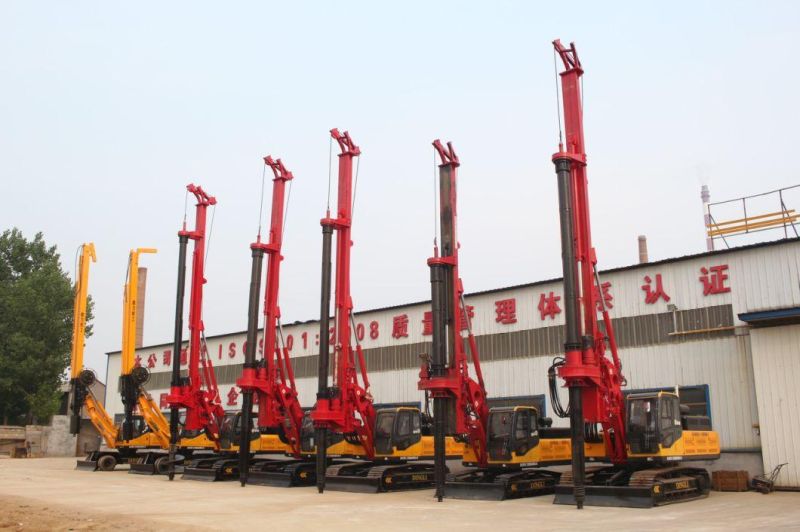

Machine Photos







Exhibition




Company profile

    Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.



 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
