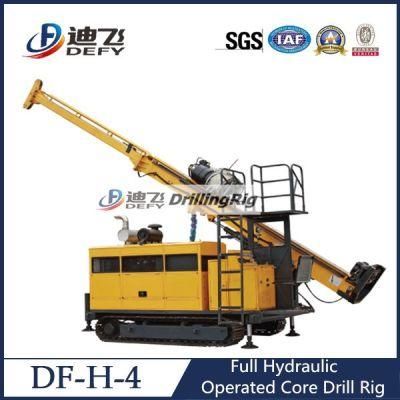

2022 Hot Sale Full Hydraulic Spt Drilling Rig

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • Condition：New
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：>150m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Type：Crawler

Base Info

  • Model NO.：DF-H-4
  • Bq：1000m
  • Nq：700m
  • Hq：500m
  • Operation：Full Hydraulic
  • Diesel Engine：Cumins 132kw
  • Rotator Capacity Max,Torque：4200 N.M
  • Mast Adjusting Angle：0-90 Degree
  • Mast Drilling Angle：45-90 Degree
  • Mast Height：11m
  • Transport Package：Standard Export Packing
  • Specification：ISO&SGS&BV
  • Trademark：DEFY
  • Origin：Henan, China
  • HS Code：8430490000
  • Production Capacity：100sets,Month

Description

Diesel EngineModelCummins 6BTA5.9-C180
(turbocharged and charge water cooled)Displacement5.9L (1.56 US Gallons)Power132Kw (180HP)Rated RPM(Factory setting)2200rpmDrilling CapacityBQ1000m(3280feet)NQ700m(2296 feet)HQ500m(1640 feet)Drill HeadRotation MotorHydraulic Motor-variable
Maker: SAUER-DANFOSSRPMFour Shifts/ Stepless Change
0-1100 RPMRatios1st 14.422:1
2nd 8.171:1
3rd 4.519:1
4th 2.652:1Head OpenerPivoting style, Manual actuatedMax. Torque3700 N@m(2727 lbf@ft)Hold Diameter121 mm(4.76 inch)Max. Lifting capacity of Spindle150 kN(33720 lbf)Max. Feeding Power60 kN(13480 lbf)
