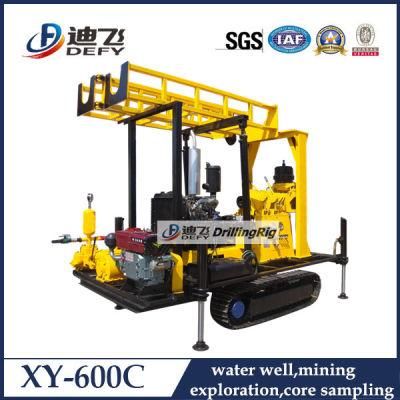

• Model NO.：XY-600C
• Max Depth：600m
• Max. Drilling Diameter(mm)：75-500mm
• Application：Core Drilling and Water Well Drilling
• Power(W)：57HP
• Dimension(L*W*H)：3700*1850*3200mm
• Weight：2880kg
• Drilling Angle：90 -65

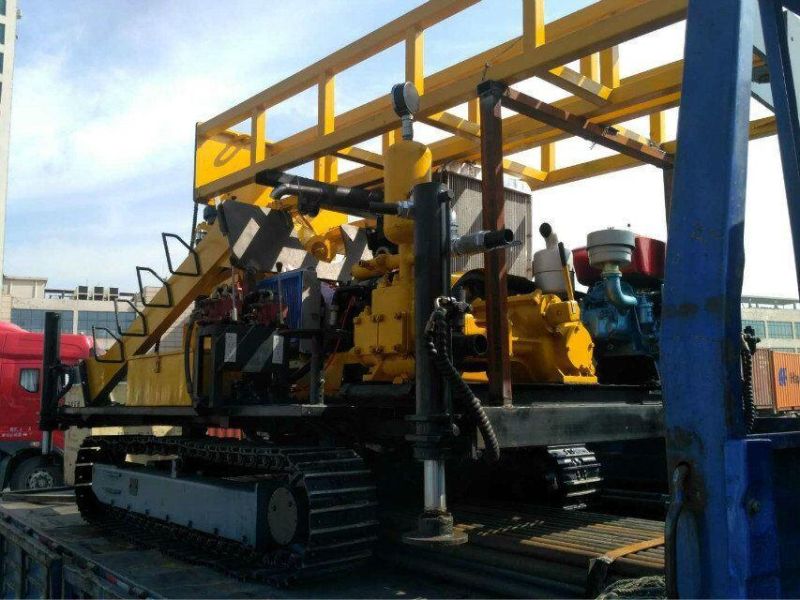

• Feature：Crawler Mounted Portable Drilling Rig
• Usage：Core Drilling
• Power Type：Diesel
• Type：Core Drilling Rig
• Transport Package：Container
• Specification：SGS, BV
• Trademark：DEFY
• Origin：China Henan
• Production Capacity：200 Sets Per Month

1. Main ParametersMax. Drilling Depth600mDiameter of drill pipeΦ42,Φ50,Φ60,Φ76Angle of vertical spindle90°~65°Drilling capabilityΦ75mm drill diameter 600m depthΦ127mm drill diameter 400m depthΦ219mm drill diameter 210m depthΦ273mm drill diameter 150m depth2. Vertical SpindleRotation speedForward 10 grades30-1050r/min Reverse 2 grades29-137r/min3. Main hoistLifting speed of single wire0.5-1.9m/sDiameter of wire rope12.5mmCarry capacity of single wire4000kg4. Mud pump(as per your choice)Horizontal triplex mud pumpBW-200Displacement200L/min5.Power supply(choose one between the following two)Diesel engine Model 4100,38kw(50HP)Electrical motorY180M-4B35,22kw6.Six-wheel Trailer Walking speed25Km/hr
 After-Sales Service
1. One year quality guarantee for main machine;
2. Training: operation manual, overseas installation is also available;
3. Spare parts are available in our factory at cost price for former customers;
4. 24 hour on-line guidance for operation and maintenance.
