Anchor Foundation Drilling Machine Down-The-Hole Drilling Rig
Henan Yugong Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：90mm-180mm
- Drill Hole Depth：10-60m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：YGMG-40
- Type：Stationary
- Product Name：Hydraulic Anchor Drilling Rig
- Drilling Angle：0-90 Degree
- Drill Pipe Diameter：50mm, 60mm, 76mm
- Weight：1000kg
- Rotary Power：7.5kw
- Hydraulic Pump Power：4kw
- Drilling Depth (Max.)：60m
- Rotary Speed：90rpm
- Rated Torque：1400n.M
- Max.Stroke：1800mm
- Max. Lifting Force：25kn
- Max. Feeding Force：20kn
- Hydraulic System Power：16MPa
- Spare Parts(Basic)：Drilling Pipe, Drilling Bit, Impactor
- Key Word：Foundation Drilling Rig
- Transport Package：Wooden Case
- Specification：3120*1300*1600mm
- Trademark：Yugong
- Origin：China, Henan Province
- HS Code：8430691900
- Production Capacity：500,Month
Description
The whole machine parametersModel YGMG-40 YGMG-50 YGMG-70 Drill hole depth 10-60m 25-70m 35-80m Hole diameter 90-180mm 90-165mm 90-200mm Drilling rod spec Φ76mm*1800mm Ф76 *1500mm, Ф89*1500mm Ф76*1500mm, Ф89*1500mm Hole angle 0-90° 0-90° Φ42mm,50mm,60mm Output ratory speed 90rpm 70rpm 70rpm Rated output torque 2400N.m 2500N.m 3900N.m Power head max stroke 1800mm 1800mm 1800mm Max lifting force 25KN 30KN 30KN Power head max feeding force 20KN 25KN 25KN Hydraulic system rated pressure 16Mpa 17-18Mpa 17-18Mpa Rotary electric power 4 pole 7.5kw hydraulic hydraulic Hydraulic pump electric power 4kw 22kw 22kw Voltage 380V 380V 380V Weight 1000kg 1260kg 1460kg Hydraulic pump dimension 640*600*580mm 1850*780*1360mm 1850*810*1280mm dimension 2800*800*1400mm 3000*780*1360mm 3100*1000*1500mm
Feature
1.Three phase asynchronous electric motor and double connect gear oil pump provide power for drilling rig
2.It adopts hydro-cylinder feeding pattern with compact structure, big lifting force and good stability
3.The radiator can reduce the oil temperature efficiently to avoid hydraulic oil from changing to low viscosity or
destroyed because of the very high temperature of oil.
4.The up and down hydro-cylinder can adjust the angle of guide rail fast to satisfy drilling requirements from
different angles.

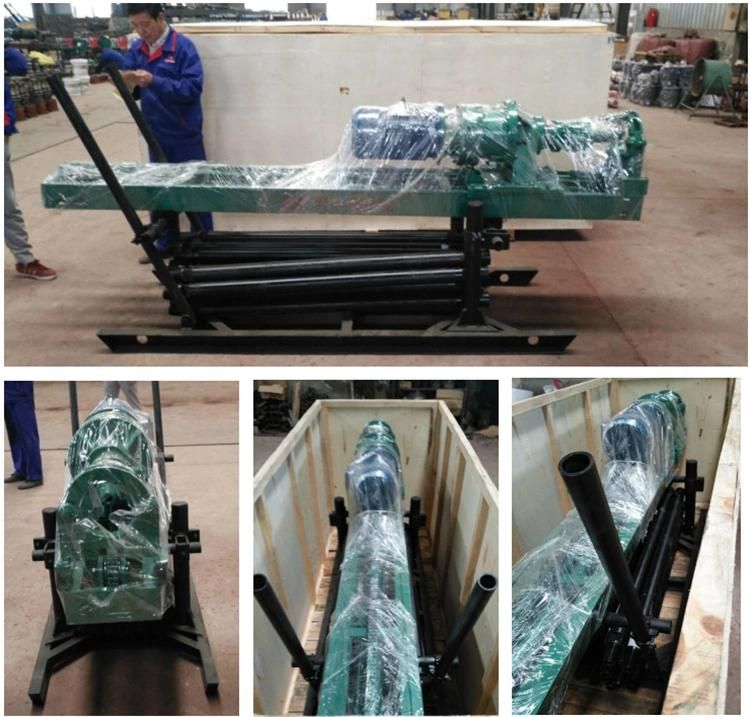

Package
Anchor drilling rig machine use Standard export wooden case or as your requirement.

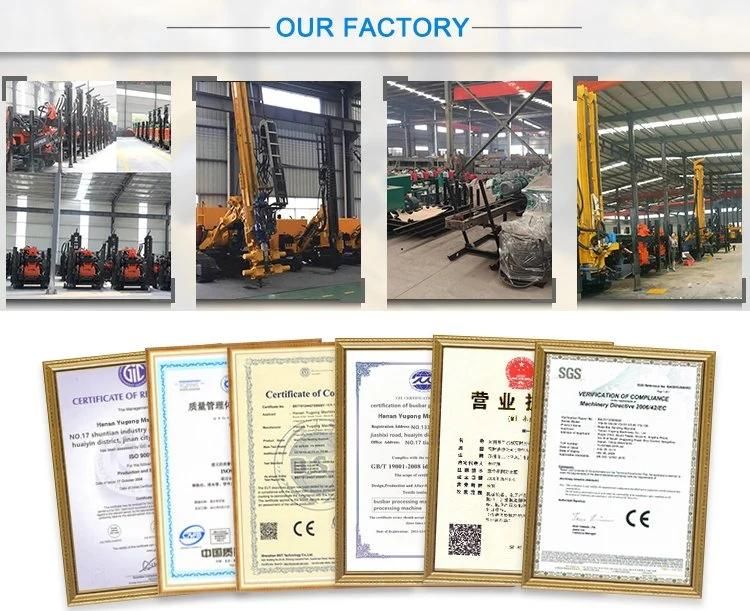

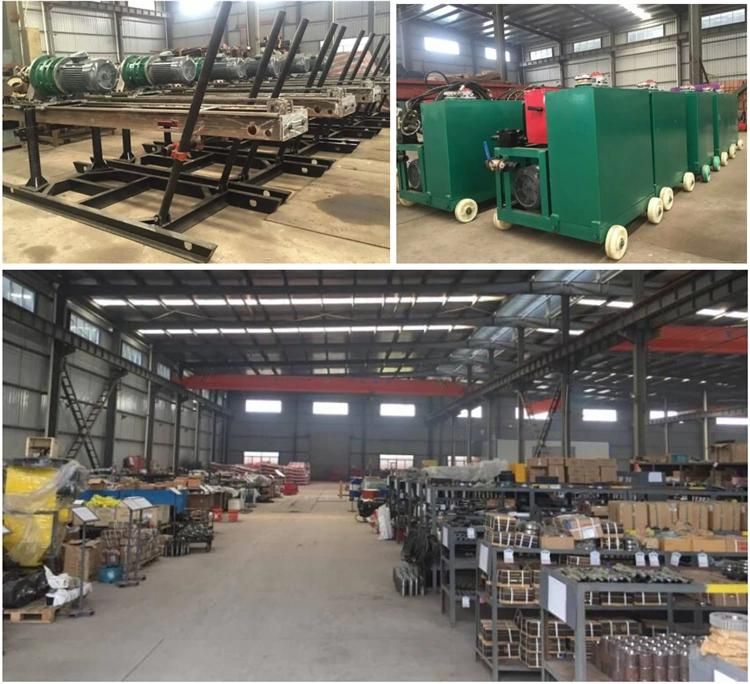

Company Information
Henan Yugong Machinery Co., Ltd., located in Erqi District of Zhengzhou City, Henan Province, is a large
engineering machinery manufacturing enterprise which focuses on research and development, production
and sales of drilling equipment in mining, tunnel, road and bridge construction. We can produce sets of
construction system equipment such as drilling machine, road construction machine and demolition cutting
machine, etc. Technical design, material purchasing, precise manufacturing and strict quality inspection are
all processed according to top standard. "Quality First, Reputation First, Be Innovative, Be Excellent." has
always been our purpose. We warmly welcome your corporation from all fields and build great future for us all.

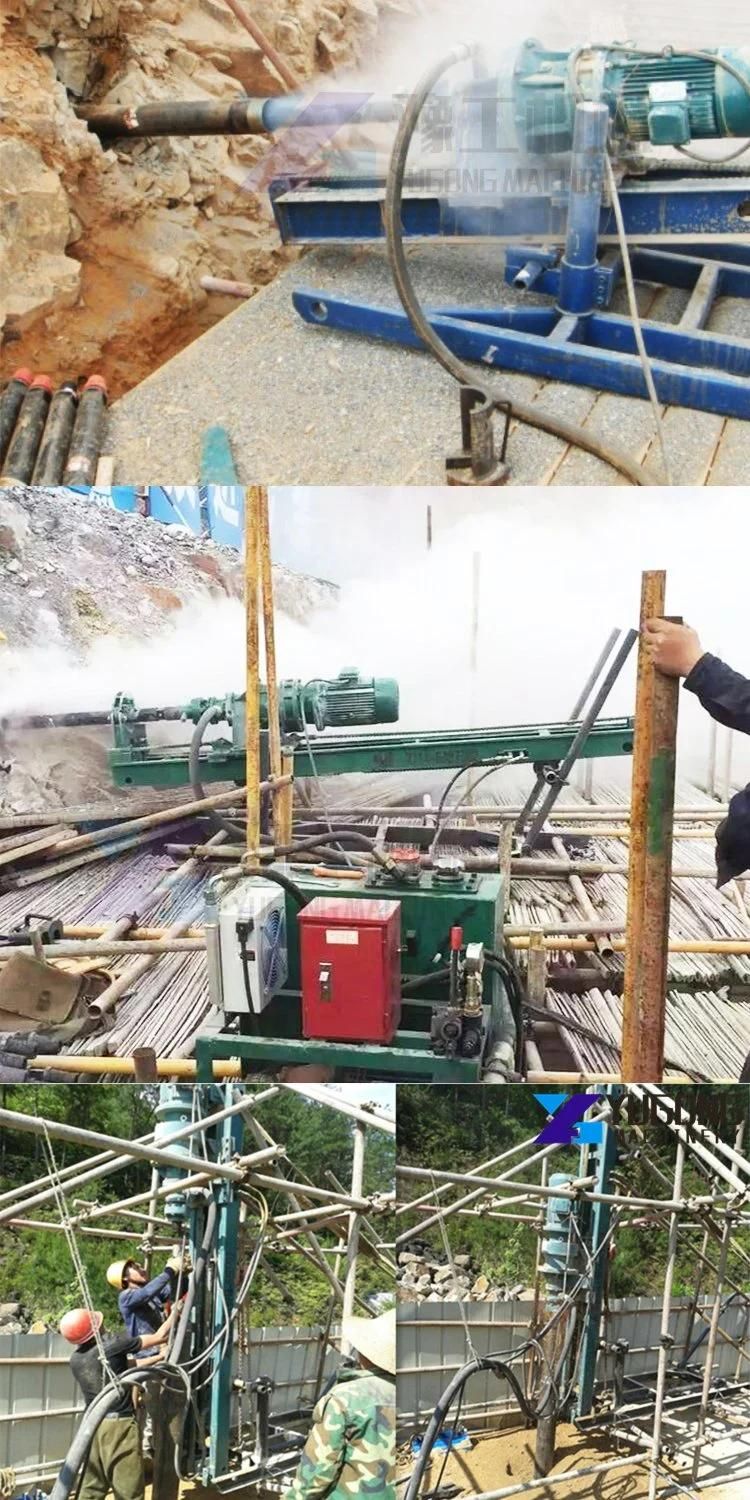

Customer Photos
Purchase Assurance
High quality raw material suppliers provide us stable and excellent performance machines; skilled and
responsible engineers, technicians and workers keep our production line proceed well-organized; we'll
test running every machine before delivery, to make sure it works well in clients' construction sites; all
machines have one--year warranty and lifelong maintenance, our sales manager provide elaborate
machine-related consulting service and technical assistance during pre and after-sales, to make sure clients are proficient in operating our machines.
