• Model NO.：GS450AT-L
• Type：Track
• Engine Power：194 kw
• Max. Torque：27000 N·m
• Max. Mud Pump Flow：600 L,min
• Rig Weight：15000 kg
• Transport Package：Nude Packing
• Specification：8250*2320*2650,3150 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GS450AT-L Type Track Engine Power 194 kw Max. Torque 27000 N·m Max. Mud Pump Flow 600 L/min Rig Weight 15000 kg Transport Package Nude Packing Specification 8250*2320*2650/3150 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1. Germany REXROTH variable and load sensitive controlling main hydraulic system used for rotation, thrust & push back, clamp and walking system, can improve the efficiency for 15%-20%, reducing the calorific value which can save the energy for 15%-20%.
2. Equipped with Cummins construction engine with the large power.
3. Thrust & pulling capacity can be reinforced; the reinforced capacity comes to 900KN to make sure the reliable performance for the large diameter piping project.
4. Four bar linkkage luffling structure increases the drilling angle without rig body leaving the ground level.
5. Wire controlling for track walkling can make sure the sfety of personnel.
6. Equipped with the rotary type manipulator driven by high torque motor for disassembling the drill rods, which ensure convenience of disassembling the drill rods and saves the labor force. Operation cab is optional.
7. Compact size design adopts φ89*3000mm, φ114*3000mm and  φ127*3000mm drill roads which ensure the high efficiency and is suitable for the small space project.
8. Main hydraulic parts sourced from the world famous supplier can make sure the reliable performance.
9. Simple wiring design make sure the low fault rate.
10. Adopting the rack and pinion thrust & pull provides athe high efficiency, stable working performance and easy maintenance.
11. Steel track plate with rubber can be loaded heavily and walk on all kinds of roads.
12. GS450AT-L/LS series hdd machine can work in rock confition hgh effectively and also can work in common soil condition effectively.

[Main Technical Parameters]


Rig Weight	15000 kg	Dimension(L*W*H)	8250*2320*2650/3150 mm
Max. Push & Pull Force	450/900 KN	Max. Push & Pull Speed	55 m/min
Exterior Rod Max. Torque	27000 N.m	Exterior Rod Max. Rotation Speed	95 r/min
Interior Rod Max. Torque	4600 N.m	Interior Rod Max. Rotation Speed	152 r/min
Engine Power	194 kw	Max. Mud Pump Flow	600 L/min
Caterpillar Walking Speed	3-5 km/h	Max. Mud Pump Pressure	10 Mpa
Enter Drill Angle	12-22°	Max. Climbing Gradient	18°
Max. Aperture Diameter	Φ1300 mm(Soil Depended)	Max. Crossing Length	700 m(Soil Depended)

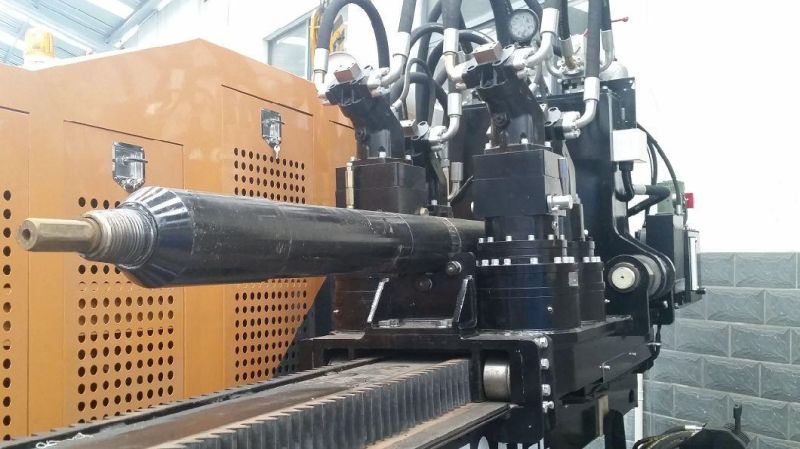

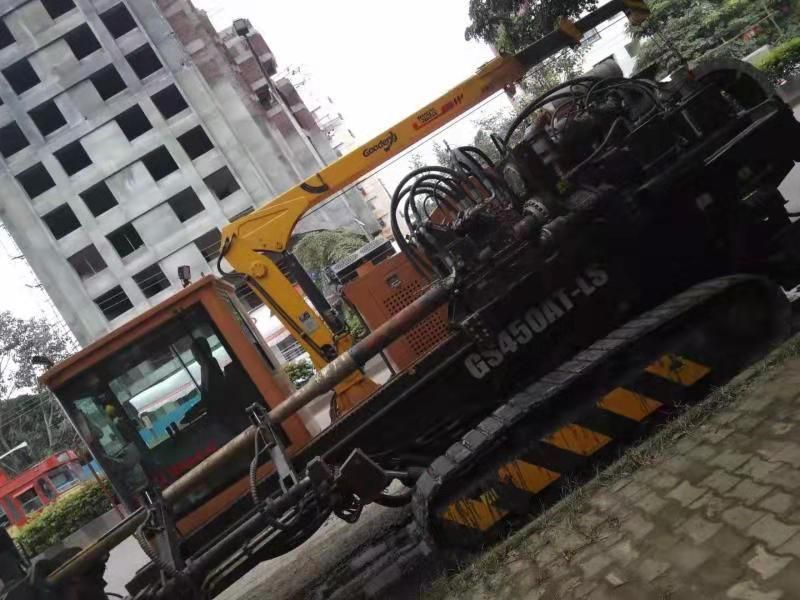

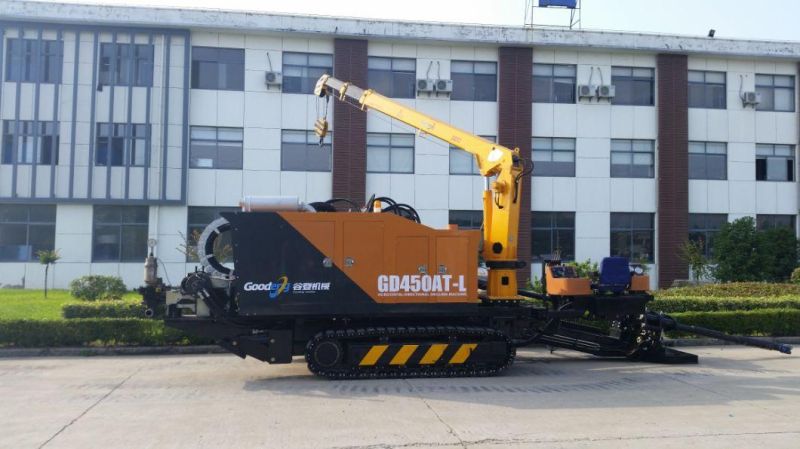

[Product Photos ]





[Product Photos ]




[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is specialized in research & development, manufacturing, sales and service for trenchless equipment, static-pressure pile pressing-in & pile planting machine, and geological drilling equipment. Our main products are GD series of horizontal directional drilling machine. As mechanization Research branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which is filled of multiple domestic and abroad blanks. More products have obtained national and provincial progress prize in science and technology of machinery industry.

[Competitive Advantage]
  1. Competitive Price: We work as the leading dealers of various leading China construction machinery factories, and are treated with best dealership prices every year. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2. Quick Response: Our team is consisted of a group of deligent and enterprising people, working 24hrs/day to respond clients'  inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occuts first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advnce, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
