• Model NO.：GD3500-LS
• Type：Track
• Engine Power：2*264 kW
• Max Torque：367000 N·m
• Max Mud Pump Flow：Extra Mud Pump
• Rig Weight：56000 kg
• Transport Package：Nude Packing
• Specification：18610*3400*3600 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GD3500-LS Type Track Engine Power 2*264 kW Max Torque 367000 N·m Max Mud Pump Flow Extra Mud Pump Rig Weight 56000 kg Transport Package Nude Packing Specification 18610*3400*3600 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

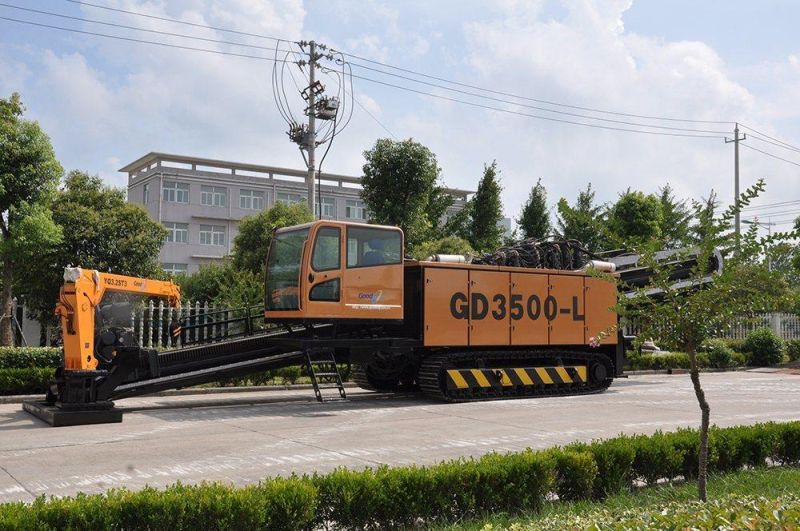

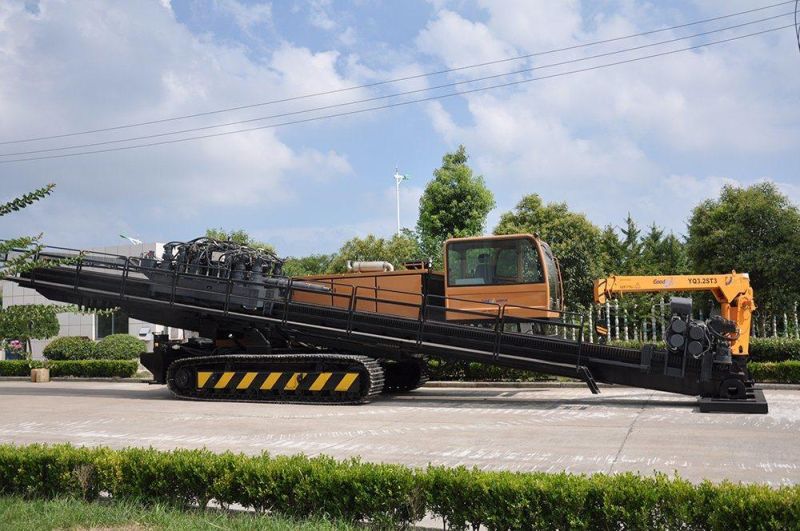

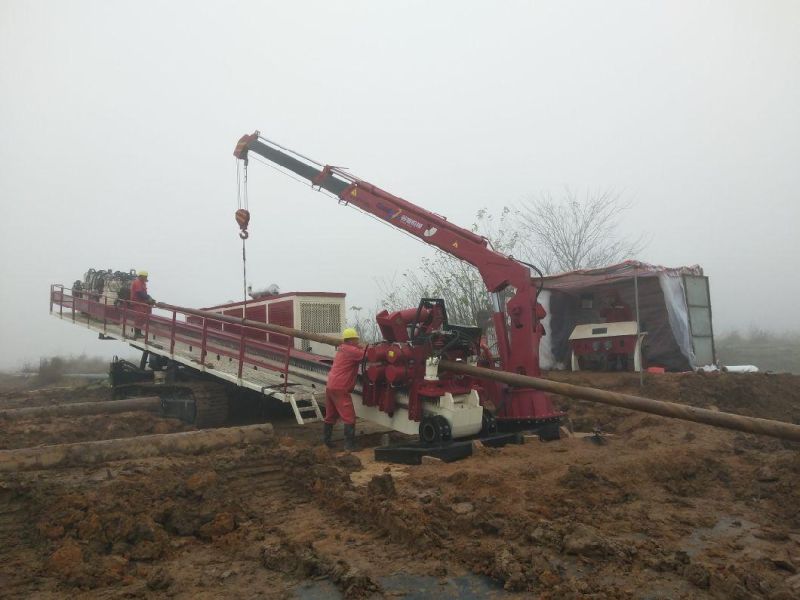

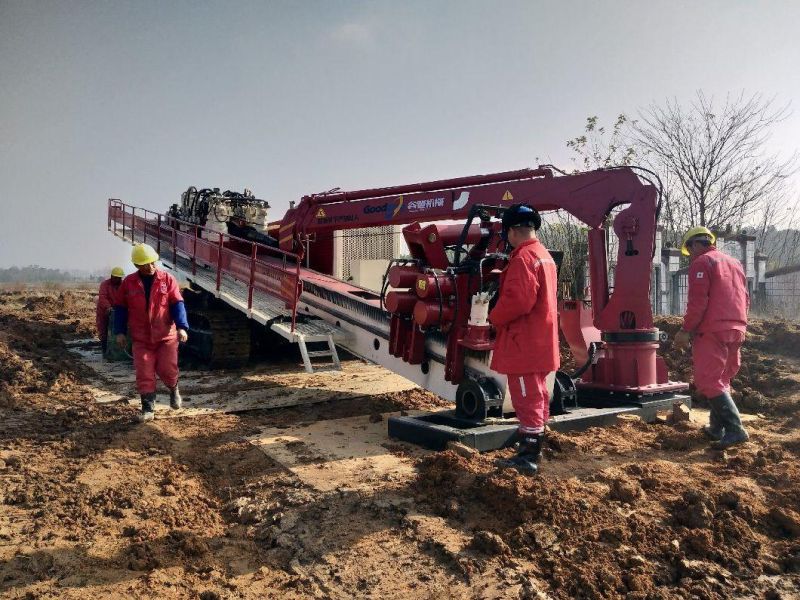

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1.Main hydraulic system. High pressure electric control open-circuit system, compared to closed-circuit system, there is no pressure difference loss caused by oil-adding pressure, the system is more energy-saving and environmentally friendly, and rig work ability can be further enhanced.
2. The machine is equipped with two diesel engines, and one can choose one or two engines to work according to different conditions, so energy is saved. If one of the twin engines breaks down, the other one can still be operated normally (with the same force and low speed), which can greatly improve construction safety.
3. Proportional linear stepless regulation is adopted for driving head rotation and push & pull speed.
4. Front and back clamping can be separated, and the clamping floats in the whole process.
5. It is equipped with φ127×9600mm, φ140×9600mm or φ168×9600mm drill pipe. Floating spindle can further protect the drill pipe thread.
6. Floating girder is good for loading, unloading, climbing and transportation, which is convenient for adjusting entry angle, and the power head length can reach 11 meters, which can effectively protect clamps.
7. Wide steel walking track is convenient for loading and unloading directly in position without taking apart.
8. Two seats are in operation cab, spacious and comfortable, and can be lifted, rotated, with open field of vision.
9. Drill pipe bracket in the middle increases the accuracy of drill pipe loading and unloading, which can highly improve working efficiency.
10.Main control valve. The main switch valve is independently designed according to rig construction conditions, with patent protection. The simple and reliable structure can ensure smooth operation. Big drift diameter design is characterized with smaller throttling loss, smaller heating power, more energy saving, compact shape etc. More reasonable power system structure can improve push-pull speed on the condition of not affecting rig torque and push-pull force, hence meeting speed demands in different construction conditions.
11. To enhance the executing mechanism ability, hydraulic system is designed in conformity to large flow and high pressure. Our self-designed inserting control valve group reacts fast and reduces 50% pressure loss in hydraulic system.
12. Self-designed and developed, combined electronic controlling system realizes its adaptive control to different working conditions and different geologic strata, improving 30% efficiency of construction.
13. Liquid crystal man and rig exchange system can monitor rig condition at any time, which can adjust rig work and alarm parameter, making operation simpler and more comfortable.
14. Rational and effective cooling system ensures safety, reliability and efficiency of system, extends motor using lifespan, and avoids motor damages.
15. System is configured with both auto-operation and man-operation. Auto-operation could timely adjust the running parameter according to the strata situation and automatically adjust the rig for rig and drill rod protection.

[Main Technical Parameters]

Engine Power	2*264 Kw	Max. Torque	125000 N·m
Max. Push & Pull Force	3700 kN	Max. Clamping Force of Pipe Jaw	2540 kN
Max. Working Pressure Set in System	35 Mpa	Max. Unscrewing Force of Pipe Jaw	367000 N·m
Max. Mud Flowing Volume	2000 L/min	Rig Dimension(L*W*H)	18610*3400*3600 (mm)
Drill Pipe Diameter	Φ127mm-Φ140mm	Rig Weight	56000 kg
Max. Length of Drill Pipe	9.6 m	Max. Walking Speed	2.5 km/h
Driving HeatMax. Rotation Speed	95 rpm	Permitted Working Temperatue	-30°~50°C
Driving Heat Max. Push & Pull Speed	45 m/min	Permitted Enviroment Humidity	> 90%
Main Spindle Floating Distance	100 mm	Drill Incidence°	8°-18°
Mud Pump Channel Diameter	3"	Max. Mud Pressure	20 Mpa
Max. Aperture Diameter	Φ2000mm(Soil Depended)	Max Crossing Length	2000m(Soil Depended)
