• Model NO.：XY-200C
• Drilling Way：Rotary
• Type：Crawler
• Rated Drilling Depth：200m
• Rated Borehole Diameter：400mm-75mm
• Contrlling System：Fully Hydraulic
• Power Supply：22HP Diesel Engine,15kw Electrical Motor
• Warranty：1 Year for Main Machine
• Drill Tower：Hydraulic Rise and Fall, Integrated on Drill Rig
• Configuration：Provide All The Accessories for Drilling
• Movement：Self-Propelled Crawler Chassis
• Mud Pumpd：Independent Bw-160
• Training：Free Training, Manul and Operation Video
• Usage：Coring
• Power Type：Diesel

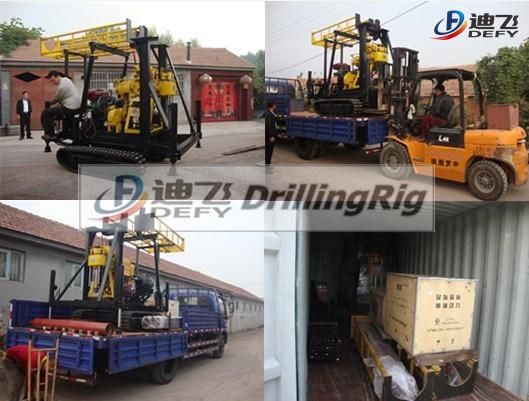

• Transport Package：Standard Export Packing
• Specification：200M DRILL RIG
• Trademark：DEFY
• Origin：China(Mainland)
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XY-200C Drilling Way Rotary Type Crawler Rated Drilling Depth 200m Rated Borehole Diameter 400mm-75mm Contrlling System Fully Hydraulic Power Supply 22HP Diesel Engine/15kw Electrical Motor Warranty 1 Year for Main Machine Drill Tower Hydraulic Rise and Fall, Integrated on Drill Rig Configuration Provide All The Accessories for Drilling Movement Self-Propelled Crawler Chassis Mud Pumpd Independent Bw-160 Training Free Training, Manul and Operation Video Usage Coring Power Type Diesel Transport Package Standard Export Packing Specification 200M DRILL RIG Trademark DEFY Origin China(Mainland) Production Capacity 200 Sets/Month

Product Description

Model XY-200C crawler mounted granite core sampling drilling rig

*200m depth,75~400mm diameter

*For water wells,Geothermal wells,Irrigation wells,Exploration Coring and so on

*Advanced hydraulic automatic mast,mechanical or hydraulic support legs

*Using different drill tools for soft ground or hard rock layer

*Independent BW-160 mud pump

Features:

(1) With integrative drilling tower, supported by Four high strength oil cylinder, hydraulic controlling the rise and fall of the tower, operation is extremely convenient, saving time and labor effort.

(2) The chassis uses crawler,self propelled,people can sit and handle, achieve rapid turnarounds, very convenient.

(3)Chassis have four high strength hydraulic legs,while working to support reliable stability.

(4) Uses the electric-start diesel engine, greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage.

(5) The machine is equipped with a complete set of independent BW - 160 mud pump, with high pump flow rate and pressure, convenient maintenance, convenient to buy spare and accessory parts all around.

Zhengzhou DEFY:
We offer different capacity 100m,200m,300m,400m,600m drilling rig with trailer,tractor,crawler,truck chassis. From traditional to advanced, from economical to effective, if you are interested, please do not hesitate to contact with us.

FAQ for customer:
1.price: factory direct selling, good price must be given to you!
2.delivery time: 7-10 days after receiving your advance payment
3.warranty: one year for main machine
4.spare parts: can be supplied at factory price all year around
5.training: free training in factory, introduction mannual and operation video can be sent to you.



Drilling depth	200m
Maximum borehole caliber	400mm
Minimum borehole caliber	75mm
Diameter of Drill pipe	42,50,60mm
Drilling angle	90°~75°
Weight(Not include power)	810kg
Unity machine dimension	2750*950*1600mm
