• Model NO.：DFQ-100
• Drill Hole Depth：50-100m
• Bit Type：DTH Bit
• Drilling Way：Rotary
• Type：Crawler
• Power(W)：24kw,2300rpm
• Dimension(L*W*H)：3200*1770*2050 mm
• Weight：2200 Kg
• Caliber：105-150mm
• Rock Hardness：F=6~12
• Mobile Base：Crawler or Wheels or Tractor
• Transport Package：Wooden Package
• Specification：SGS BV
• Trademark：DEFY
• Origin：China
• HS Code：84304900
• Production Capacity：50 Set Per Month

Basic Info.

Model NO. DFQ-100 Drill Hole Depth 50-100m Bit Type DTH Bit Drilling Way Rotary Type Crawler Power(W) 24kw/2300rpm Dimension(L*W*H) 3200*1770*2050 mm Weight 2200 Kg Caliber 105-150mm Rock Hardness F=6~12 Mobile Base Crawler or Wheels or Tractor Transport Package Wooden Package Specification SGS BV Trademark DEFY Origin China HS Code 84304900 Production Capacity 50 Set Per Month

Product Description

I. Brief Introduction of DEFY

As a professional manufacturer of drilling rig, we have our own workshop, research and development, quality control department and  professional & responsible sales staffs.  The products has approved BV & SGS certificate.

So sincerely hope you can have a visit to us.  Besides, if you still have doubt about the order, you can place it on Alibaba by Trade Assurance, Alibaba will ensure the delivey for you. :)

II. Hot sale in Russia, DFQ-100 DTH Hammer Water Drilling Rigs are pneumatic portable drilling rig, widely used for mining exploration blast hole drilling, water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas. It features lower cost, light weight, high efficiency in rocks, stable working, etc.

III. Some Features

1. Power system: It adopts diesel engine for power, with large power.

2. Control system: Full hydraulic control system, with hydraulic cylinder and motor, accurate and convenient.

3. Drilling head: It can use both DTH hammer tool for hard rocks and alloy bits for soft stratums. Very efficient for hard layers, meanwhile, energy-saving for soil, sand and gravels.

4. Feeding system:
a. Air compressor for hard rocks;
b. Mud pump for soil, sand, etc.
Efficient in rocks, meanwhile, quick and energy saving for soft areas.

5. Mobile base: Crawler, Trailer, Tractor mobile systems are alternative.

IV.Other related Model of  DFQ-100 DTH Hammer Water Drilling Rigs

Model	Movement	Borehole Diameter	Drilling Depth
DFQ-100	Crawler	105~150mm	100m
DFQ-100W	Wheel trailer	105~150mm	100m
DFQ-150	Crawler	105~203mm	150m
DFQ-150W	Wheel trailer	105~203mm	150m
DFQ-200	Crawler	105~203mm	200m
DFQ-200W	Wheel trailer	105~203mm	200m
DFQ-250	Crawler	105~254mm	250m
DFQ-300	Crawler	115~305mm	300m
DFQ-400	Crawler	115~400mm	400m

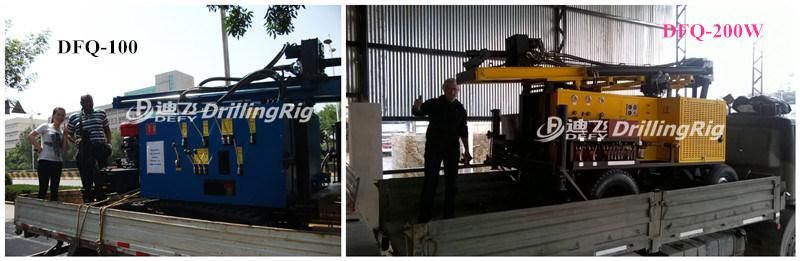

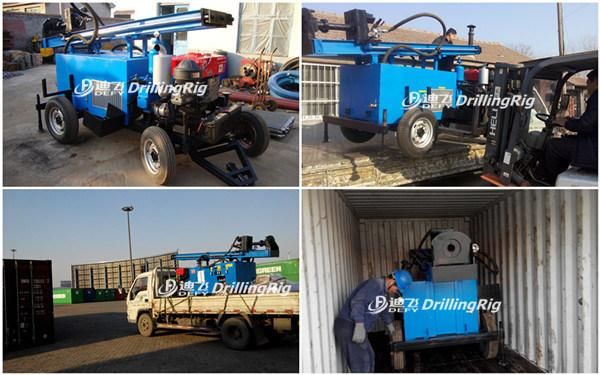

V.DFQ-100W factory & delivery site

More details, pls feel free to contact me!
