• Model NO.：DFU-M56-2
• Drilling Way：Rotary
• Max Depth Depth：550m
• Borehole Caliber Range：56~36mm
• Dimension(L*W*H)：1220*590*550mm
• Weight：2100kg
• Control System：Fully Hydraulic
• Worker Train：Free Training
• Structure：Demountable and Light
• Usage：Ore
• Power Type：Electric
• Type：Core Drilling Rig
• Transport Package：Strandard Packing Wooden Case
• Specification：CE BV ISO SGS
• Trademark：DEFY
• Origin：China Henan
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. DFU-M56-2 Drilling Way Rotary Max Depth Depth 550m Borehole Caliber Range 56~36mm Dimension(L*W*H) 1220*590*550mm Weight 2100kg Control System Fully Hydraulic Worker Train Free Training Structure Demountable and Light Usage Ore Power Type Electric Type Core Drilling Rig Transport Package Strandard Packing Wooden Case Specification CE BV ISO SGS Trademark DEFY Origin China Henan Production Capacity 200 Sets Per Month

Product Description

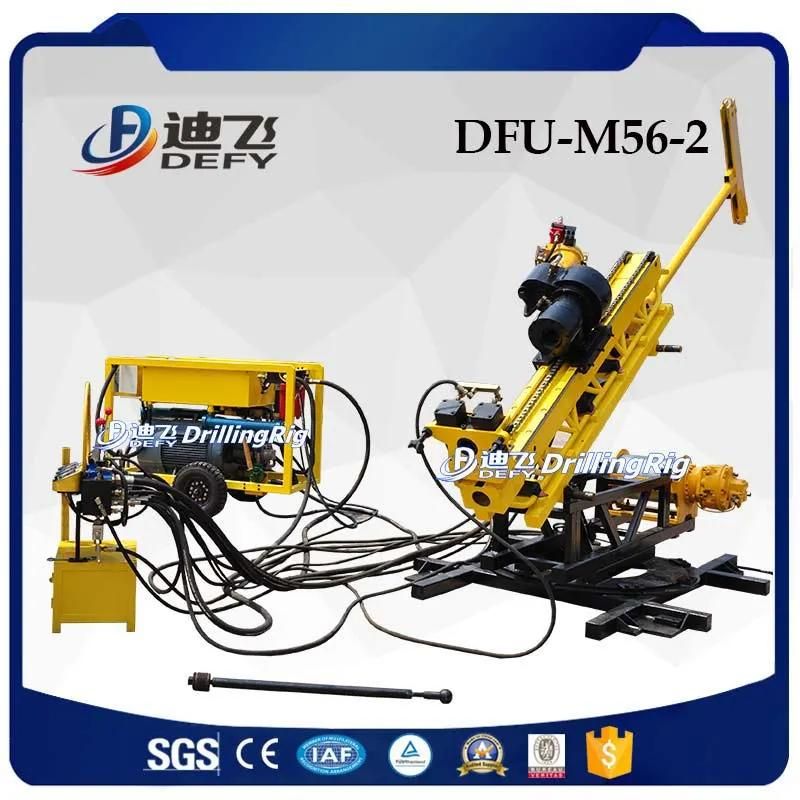

DFU-M56-2 full hydraulic mining exploration used tunnel boring machine sale

Usage:

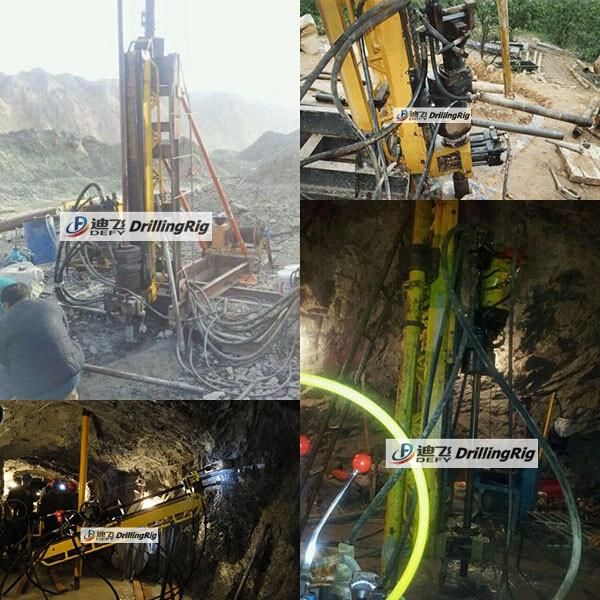

DFU-M56-2 tunnel boring machine sale are widely used for underground mining exploration, railway building, underground core sample drilling, and other underground projects.



Technical parameter:

Drilling depth	Drilling hole diameter	Drilling pipe diameter	Drilling pipe material
550m	36mm	Ø33mm	Aluminum
250m	36mm	Ø32mm	Steel
400m	46mm	Ø43mm	Aluminum
210m	46mm	Ø42mm	Steel
270m	56mm	Ø53mm	Aluminum
175m	56mm	Ø50mm	Steel

 Features:

1)Oil pump drive motor to rotate, hydraulic cylinder working without turret.

2)Machine's rotation, feed, pumping and clamping rely on hydraulic transmission, to make drilling work smoothly.

3)Fast drilling speed can achieve arbitrary direction's dip angle drilling, high applicability.

4)Adopts V-guide, the highest principal axis'concentricity.

5)Easy to operate, can be disassembled and easy transport.



Complete list of drilling rig and drilling tools for your project. For more details, please kindly send us an inquiry or contact our sales people directly. Thank you!
