c200ca truck mounted water drilling rig
Glorytek Industry (Beijing) Co., Ltd.- Certification:CE
- Condition:New
- Motor:Diesel Engine
- Drill Hole Diameter:>300mm
- Drill Hole Depth:>200m
- Bit Type:Drag Bit
Base Info
- Model NO.:c200ca
- Drilling Way:Compound
- Type:Drilling Machine
- Drilling Diameter:500mm
- Drilling Depth:200m
- Weight:17340kg
- Mining Object:Water Well
- Transport Package:Seaworthy Packing
- Specification:,
- Trademark:Glorytek
- Origin:China
- Production Capacity:100 PCS,Month
Description
Drilling depth (M)200 Borehole diameter (mm) 500 Rotary table speed (r/min) 6.7; 10; 17; 43; 63; 108 (reverse) Rotary table torque (KN.m) 14.5; 9.7; 5.7; 2.3; 1.5; 0.9 (reverse) Pull force of the main winch (with single winch rope) (KN) 30 Max. pull force of the main winch (KN) 180 Pull force of the auxiliary winch (with single winch rope) (KN) 30 Max. pull force of the auxiliary winch (KN) 120 Elevating capacity of the hook (KN) 180 Carrying capacity of the drill tower (KN) 180 Drill tower height (mm) 10200 Load bearing capacity (t) 25 Drill stem Main drill stem (mm) 108×108×6000 Second drill stem (mm) 89×10×4500 BW850/2Aslurry pump / mud pump Cylinder sleeve diameter (mm) 150 Piston travel (mm) 180 Theoretical flow rate (L/min) 600 850 Rated pressure (Mpa) 3 2 Stroke frequency (min-1) 58 82 Suction pipe diameter (mm) 127 Drain pipe diameter (mm) 64 Rotation speed (r/min) 470 Input power (kw) 40 Overall dimension (mm) 2000×1030×1400 Weight (t) 1.5 Matching power unit Diesel engine Model YC6J180-33 water cooled, 4-stroke, intercooled supercharged diesel engine Rated power (KW) 132 Speed (r/min) 2500 Max. torque 590N.m/1400-1700rpm Chassis drive type 6×4 Generator set Rated power (KW) 100 Rated voltage (V) 400 Rated frequency (Hz) 50 Max. truck travel speed (Km/h) 75 Weight (kg) 17340 Transport dimensions (L×W×H) (mm) 9550*2480*3595 Overall dimension (L×W×H) (mm) 10250*3695*11465

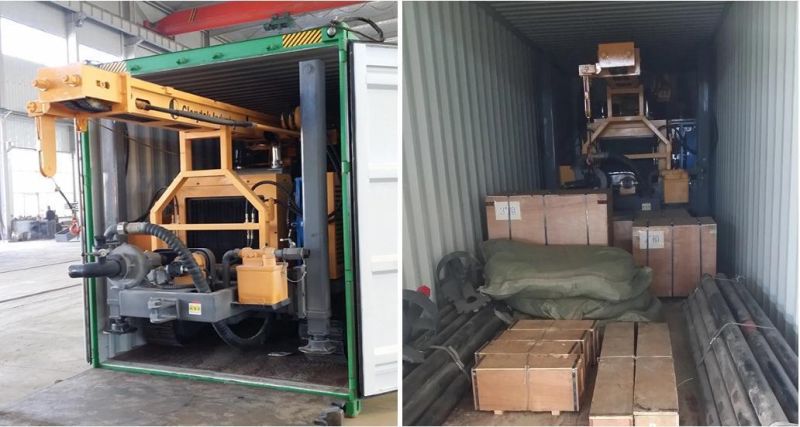

Packing and Transport
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.
Company Profile
Certifications
Customer Photos
After-sale Warranty
(1)Within the period of the first year after delivery, the main parts are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
Contact Us
Jane Cheng
Sales Representative
Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Website: glorytek.en.made-in-china.com / glorytek.en.made-in-china.com
Packing and Transport
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
ExhibitionCertifications
Customer Photos
After-sale Warranty
(1)Within the period of the first year after delivery, the main parts are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
