CFY150CA Truck Mounted Water Well Drilling Rig
Glorytek Industry (Beijing) Co., Ltd.- Certification:CE
- Condition:New
- Motor:Diesel Engine
- Drill Hole Diameter:>300mm
- Drill Hole Depth:100-150m
- Bit Type:Drag Bit
Base Info
- Model NO.:CFY150CA
- Drilling Way:Rotary
- Type:Drilling Machine
- Drilling Diameter:500-2000mm
- Drilling Depth:150m
- Mining Object:Water Well
- Usage:Water Well
- Power Type:Diesel
- Transport Package:Sea Worthy Packing.
- Specification:API
- Trademark:GLORYTEK
- Origin:Beijing, China
- Production Capacity:20 Sets, Month
Description
Drilling depth ( M )150 Drilling diameter ( mm ) 500-2000 Speed of power head ( r/min ) 0--20 Torque of power head ( KN.m ) 30 Single rope lifting capacity of main windlass ( KN ) 10 Bearing capacity of mast (KN) 180 The height of mast (mm) 8500 Bearing capacity (t) 25 Pipe(mm) 168mm×7×3000 8BS
gravel pump
Theory of flow (L / min) 560 Input speed (r / min) 750 Input power (kw) 55 Sz-2 vacuum pump air displacement(L/min) 3400 Input speed (r / min) 1450 Input power (kw) 7.5
power
Diesel engine model YC6J180-33 water cooled,4-stroke,intercooled supercharged diesel engine Rated power (kw) 132 Speed (r/min) 2500 Torque 590N.m/1400-1700rpm Chassis drive form 6×4
Electric generator
Rated power(kW)100
Rated power (V)400
Frequency ( Hz )50 The highest speed km/h) 75 Transport size ( L*W*H)(mm) 9390*2490*3600 Working size ( L*W*H ) (mm) 9390*3690*8500

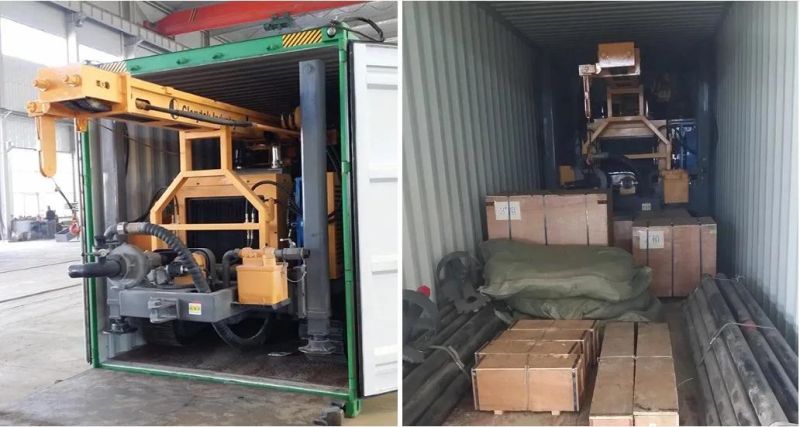

Packing and Transport
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.

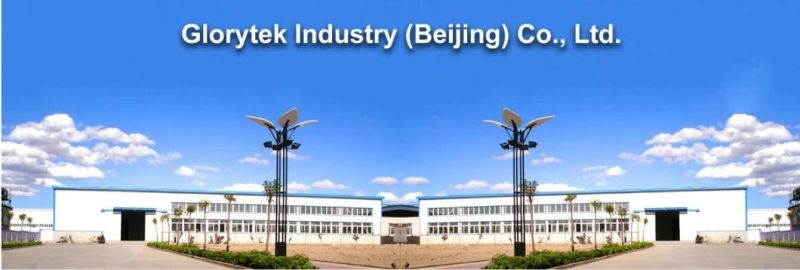

Company Profile
Certifications
Customer Photos
After-sale Warranty
(1)Within the period of the first year after delivery, the main parts are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
Contact Us
Jane Cheng
Sales Representative
Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Website: glorytek.en.made-in-china.com / glorytek.en.made-in-china.com
