• Model NO.：Yt28
• Drilling Way：Impactor
• Machine Weight：26kg
• Captain：661mm
• Air Leg Length：1400mm
• Drilling Head Diameter：34-42mm
• Working Pressure：0.5-0.6MPa
• Transport Package：Wooden Box
• Specification：26kg
• Trademark：ZT
• Origin：China
• Production Capacity：1000sets,Mouth

Basic Info.

Model NO. Yt28 Drilling Way Impactor Machine Weight 26kg Captain 661mm Air Leg Length 1400mm Drilling Head Diameter 34-42mm Working Pressure 0.5-0.6MPa Transport Package Wooden Box Specification 26kg Trademark ZT Origin China Production Capacity 1000sets/Mouth

Product Description

Portable Yt28 Pneumatic Air Leg Jack Hammer Rock Drill Rotary Rock Drill

The air leg rock drillis suitable for use in rock hardening and hardening (f = 8-18) rock drilling and tilting holes, and can also be vertical upwards to cut the anchor holes on the roof. It is best suited for large-scale mines, medium-sized mines and tunneling operations, pusher leg rock drill the best response in the domestic users in the Korean market share of more than 70%.

YT25 Rock Drill Jack Hammer is a new and efficient drilling machinery. Widely used in mine roadway excavation and a variety of drilling operations rock blasting, metallurgy, coal, railways, transportation, water conservancy construction and national defense stone engineering indispensable important equipment.

Technical parameters:


Machine weight	26	kg
Captain	661	mm
Cylinder diameter	80	mm
Piston stroke	60	mm
Working pressure	0.5-0.6	mpa
Impact frequency	≥34 ≥37	hz
Gas consumption	≤55 ≤81	l/min
Tracheal diameter	25	mm
Water pipe diameter	13	mm-
Drilling head diameter	34-42	mm
Drill tail size (hexagonal × length)	22×108±1	mm

YT25 air leg rock drill is a gas leg instead of human withstand rock drilling machine work, thus greatly reducing the labor intensity, air leg drilling machine is mainly used for horizontal drilling or horizontal up and down 45 degrees, because the air leg rock drill only one Handle, it is not suitable for drilling down the hole, after all, a portable one machine too. Pillar rail-type rock drilling machine walking on the track, drill a certain range of restrictions. The drill rigs are available in tracked, tandem and track versions, each with a specially designed site that houses one to several hand held rock drill  at the same time from different directions and angles, mostly in mining tunnels and Inside the tunnel.

FAQ:

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2:  No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equipment.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Our Company Information:


We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

About Our Factory:


About the products:



Packing and Shipping:



Purchase Process:

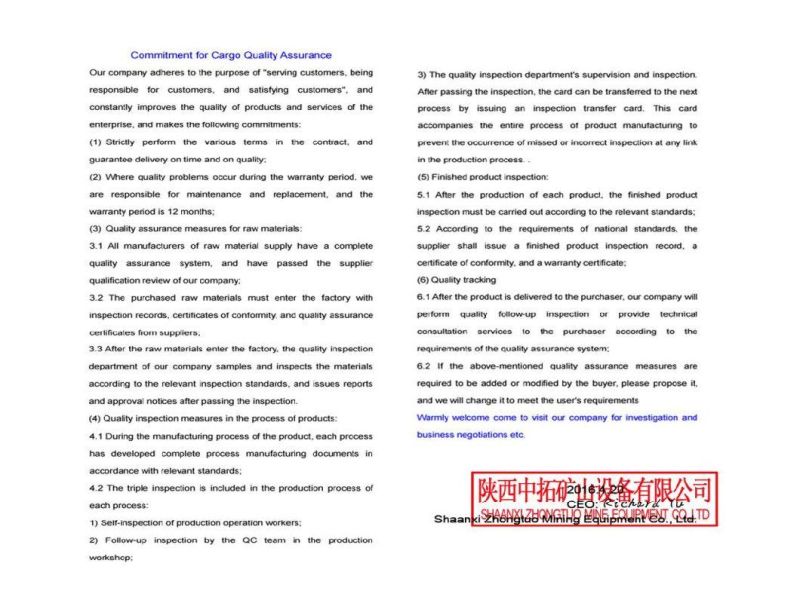

About the Quality:
