• Model NO.：SKD70
• Drilling Way：Impactor
• Model：Q-100
• Voltage：380V
• Air Pressure：0.6-0.8MPa
• Drilling Diameter：65-130mm
• Drilling Depth： ≥30m
• Transport Package：Wood Box
• Specification：470kg
• Trademark：ZT
• Origin：China
• Production Capacity：100sets,Mouth

Basic Info.

Model NO. SKD70 Drilling Way Impactor Model Q-100 Voltage 380V Air Pressure 0.6-0.8MPa Drilling Diameter 65-130mm Drilling Depth  ≥30m Transport Package Wood Box Specification 470kg Trademark ZT Origin China Production Capacity 100sets/Mouth

Product Description

Features of 2018 Electric DTH Drill Rig Hydraulic Drilling Rig Machine For Mining :
1 aircraft structure is reasonable, the use of light.
2 auxiliary time is short, low cost characteristics.


Introduction of 2018 Electric DTH Drill Rig Hydraulic Drilling Rig Machine For Mining :

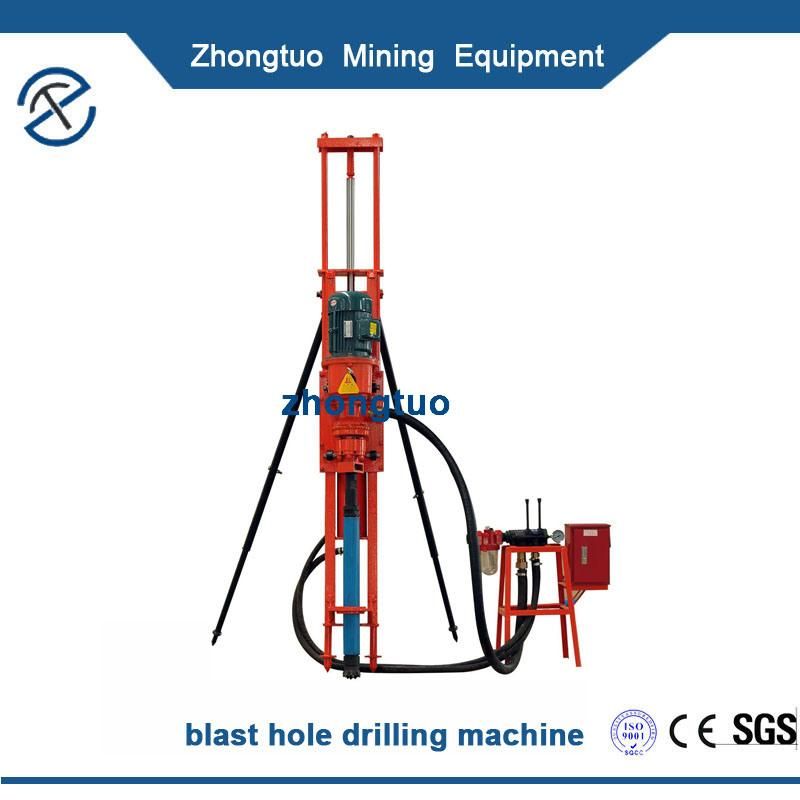

QD-100 Electric DTH Drill is a new, efficient and semi-mechanized advanced rock drilling equipment designed by our own factory.
Application of DTH Drill:
Portable DTH Drill Widely applicable to mining, water conservancy, highway, construction, blasting and other projects, the host can be directly water injection operations, blast hole drilling machine particularly suitable for drilling when the soil tunneling, can replace ordinary stones.


Parameters of 2018 Electric DTH Drill Rig Hydraulic Drilling Rig Machine For Mining :

model	Q-100
Voltage	380V
Air pressure	0.6-0.8mpa
Drilling diameter	65-130mm
Motor Power	4.0kw
Drilling direction	0°-90°
Hose Diameter	38mm
Drilling depth	≥30m
Cylinder advance stroke	1000

Precautions of operating DTH drill:
Opening, the first start the motor, to be transferred after the normal operation of the handle to pull the handle. So that it gets the appropriate propulsion, and then pull the handle to control the impactor to the working position. After drilling, you can open the water valve, so that gas and water mixture to maintain a proper ratio. The normal Electric DTH Drill  work. When the pushing work moves the lever to contact with the holder, a drill pipe is drilled. To stop the motor running and stop the blower to send air, water, the fork inserted into the drill holder drill groove, the motor reversing slide back, so that the joint and the drill pipe disconnected, then the second drill pipe, press Here you cycle to work continuously.
FAQ
Q:This is the first time I use this kind of machine, is it easy to operate?
A:There are English manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Q:If machine have any problem after I receive it, how can I do?
A:Free parts send to you in machine warranty period if machine have any problem.

MOQ?
The minimum order is 1 set machine, if you order more one time, the price will be better.



Welcome to your inquiry,we can customize for your every inquiry,thanks
