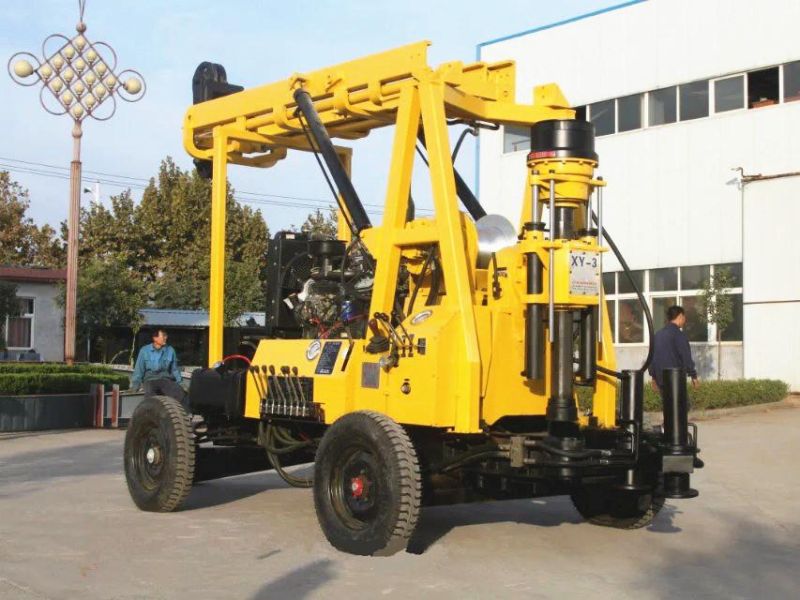

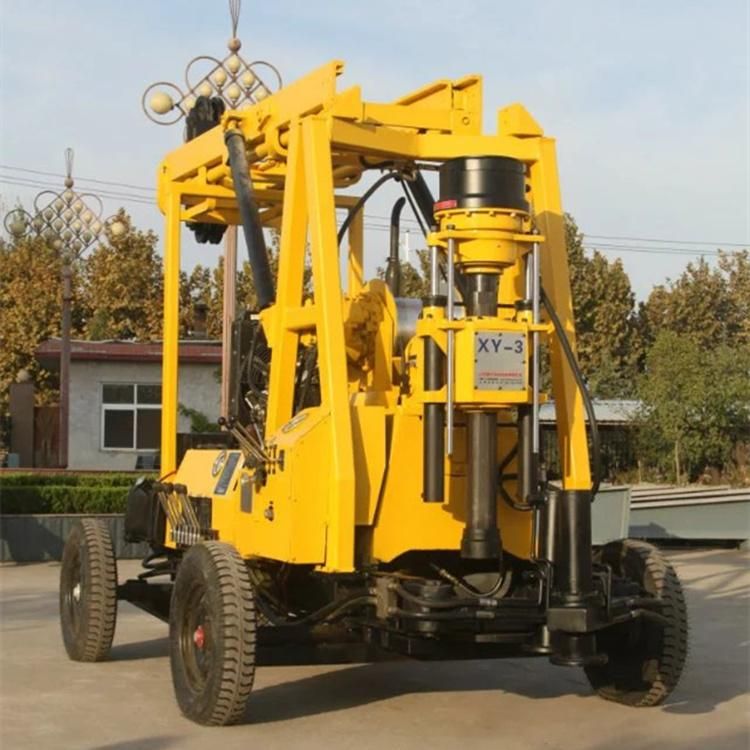

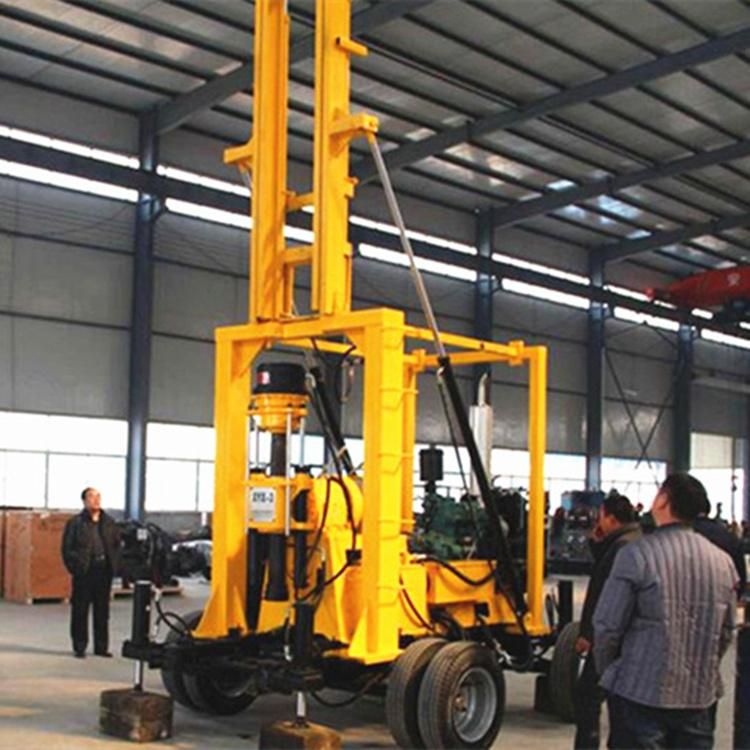

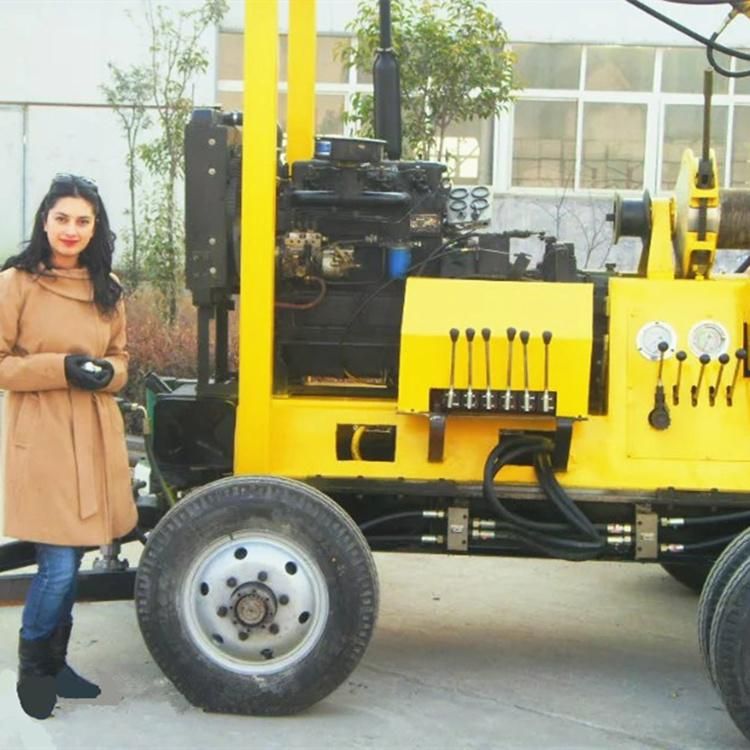

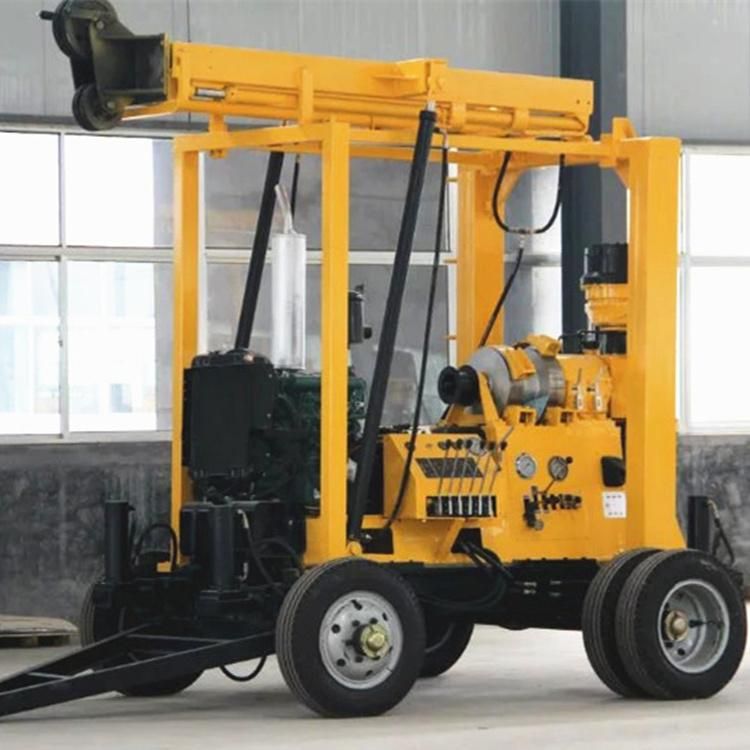

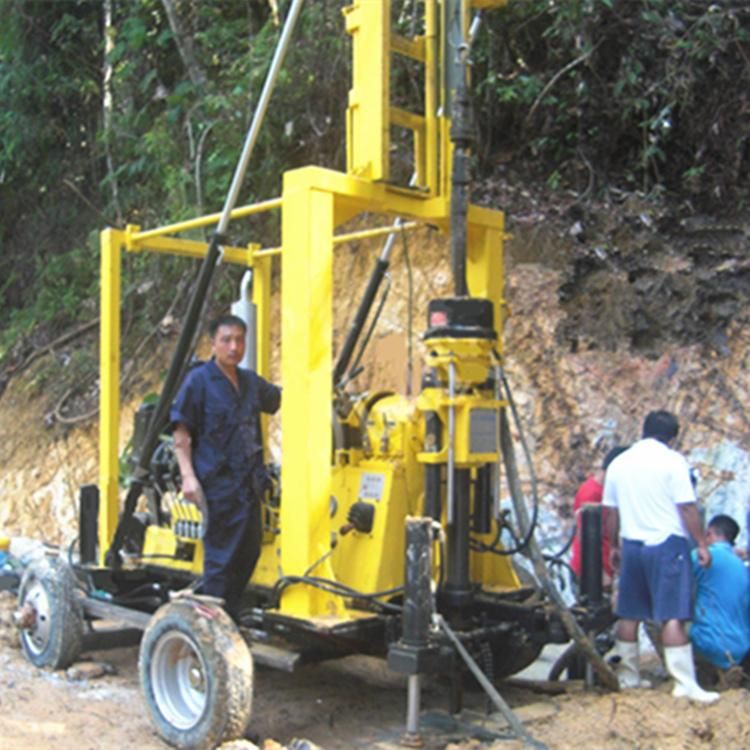

65kw Powerful Water Well Drilling Rig Machine Price

Henan Yugong Machinery Co., Ltd.

Certification：CE, ISO 9001:2008
Condition：New
Motor：AC Motor
Drill Hole Diameter：250-300mm
Drill Hole Depth：150-200m
Bit Type：Diamond Bit

Base Info

Drilling Way：Rotary
Type：Four-Wheel trailer
Product Name：Drilling Rig
Model：Xyx-200
Drill Depth：200m
Maximum Opening Diameter：300mm
Final Hole Diameter：75mm
Drill Pipe Diameter：50,60mm
Power(Diesel Engine)：15,2200kw,R,Min
Vertical Spindle Speed：64-557r,Min
Vertical Stroke：450mm
Single Line Lifting Capacity：24kn
Transport Package：Container
Specification：Drilling rig
Trademark：Yugong
Origin：China
HS Code：8430419000
Production Capacity：6000

Description

Mud pumpModelBW250BW160Flow250L/min160L/minMaximum pressure17Mpa1.2MpaReciprocating frequency93times/min93times/minWater inlet diameterΦ75mmΦ51mmWater to exit diameterΦ50Φ32mm
65kw Powerful Water Well Drilling Rig Machine Price

65kw Powerful Water Well Drilling Rig Machine Price

65kw Powerful Water Well Drilling Rig Machine Price

65kw Powerful Water Well Drilling Rig Machine Price

65kw Powerful Water Well Drilling Rig Machine Price

65kw Powerful Water Well Drilling Rig Machine Price

65kw Powerful Water Well Drilling Rig Machine Price
