• Model NO.：CMM1-18Y
• Drill Hole Depth：>300m
• Drilling Way：Rotary
• Boom Number：1
• Working Range Height：2.5-4.5 M
• Working Range Width：More 3
• Min. Turning Radius in Working State：2m
• Stable Width in Working State：1.2m
• Outer Edge Width of Crawler：0.8-1.2m
• Size：4000*1200*1850
• Weight：4t
• Power：22 Kw
• Rated Torque：200 N,M
• Rated Rotational Speed：500 R,Min
• Walking Speed：1.5 Km,H
• Propel Stroke：1400 mm
• Transport Package：Executed According to International Shipping Stand
• Specification：3.85*1.2*1.85m
• Trademark：Jikai
• Origin：Shijiazhuang City, Hebei Province, China
• HS Code：8430412200
• Production Capacity：100sets,Year

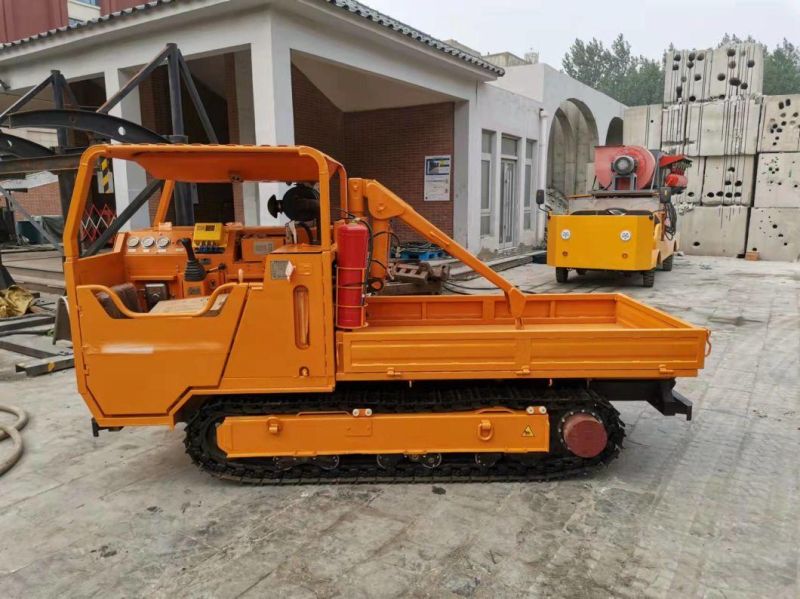

Main Features:

1..Full hydraulic driving, reliable performance, monolever bidirectional driving, simple and accurate.

2..Crawler-mounted, ground pressure less than 0.06MPa, adapted to soft ground transportation.

3..Compact design, passing space 1200mm (optional 1100mm), good for narrow tunnel.

4..Bi-directional driving could solve the turning problems effectively.

5..The crane jib installed in the transporter could lift up material which weight is 1000kg. Technical Features

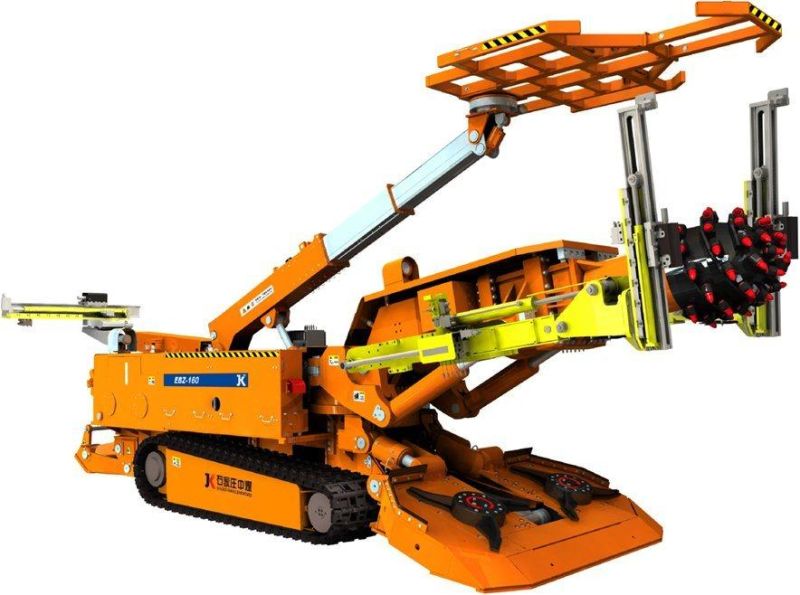

1. Multifunctional combination
Intelligent roadheader is a multi-functional roadheader with intelligent digging and anchoring protection;
2. Four operation modes
There are four mutual locking operation modes: local, line-of-sight, underground and ground remote.
3. Inertial Navigation Positioning
Equipped with inertial navigation system to automatically locate and guide the body.
4. Three cutting methods
With automatic, adaptive, memory three cutting methods.
5. Intelligent monitoring
Equipped with intelligent monitoring and audio and video acquisition system. Technical features:

         Efficient
         Double exhaust and the new type of sealing structure outriggers move up and down smoothly.

         Reliable performance
         Adopt advanced system design, reliable performance.

         Low noise
         The self-developed muffler system has low noise of the machine.
