• Model NO.：DR-285
• Type：Crawler
• After-Sales Service Provided：Online Service Provided
• Color：Customized
• Maximum Torque of Power Head：285kn.M
• Depth：60-80m
• Weight：70t
• Use：Pile Driving and Construction Buidling
• Speed：2km,H
• Chassis Length：6500mm
• Track Width：800mm
• Engine Power：220kw
• Application：New Machine
• Drill Tools：Two Drill Bit
• Transport Status Width：4500mm
• Transport Status Height：3610mm
• Power Head Speed：5-30rpm
• Transport Package：According to The Customer′s Requirements
• Specification：15500*3300*3610mm
• Trademark：dingli
• Origin：Shandong, China (Mainland)
• HS Code：8430509000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. DR-285 Type Crawler After-Sales Service Provided Online Service Provided Color Customized Maximum Torque of Power Head 285kn.M Depth 60-80m Weight 70t Use Pile Driving and Construction Buidling Speed 2km/H Chassis Length 6500mm Track Width 800mm Engine Power 220kw Application New Machine Drill Tools Two Drill Bit Transport Status Width 4500mm Transport Status Height 3610mm Power Head Speed 5-30rpm Transport Package According to The Customer′s Requirements Specification 15500*3300*3610mm Trademark dingli Origin Shandong, China (Mainland) HS Code 8430509000 Production Capacity 5 Sets/Month

Product Description



Product Details
Full hydraulic crawler type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 60-80m. matching the different specifications of drilling tools, pile hole diameter range up to 600-2400mm.

Features
1.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.

2.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.

3.Driving power is strong, the power head acts directly on the drill bit and keeps the torque unabated during piling.

4.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.

5.Small investment,quick gains:
The utility model also has high cost performance, wide application scope and high social and economic benefits;

6.The characteristic of stabilization, credibility, speediness and high capability which makes the Rotary Drilling Rig is favored.

Parameter

Product Type	DR-285
Chassis length(mm)	6500
Track width(mm)	800
Overall height(M)	3.61
Machine weight(t)	70
Maximum drilling depth(M)	60-80
Drilling diameter(mm)	600-2200
Engine rated power(KW/rpm)	220-300kw
Maximum torque of power head(N.m)	285000(optionl)
Power head speed rpm	5-30
Power head can be customized	YES
Drill mast	±5
Pitch angle	5
Maximum travel speed of chassis(KM/h)	4
Maximum creep degree of chassis	30
Maximum travel torque(N.m)	110000
Working state width(mm)	4500
Transport status width(mm)	3300
Transport status height(mm)	3610

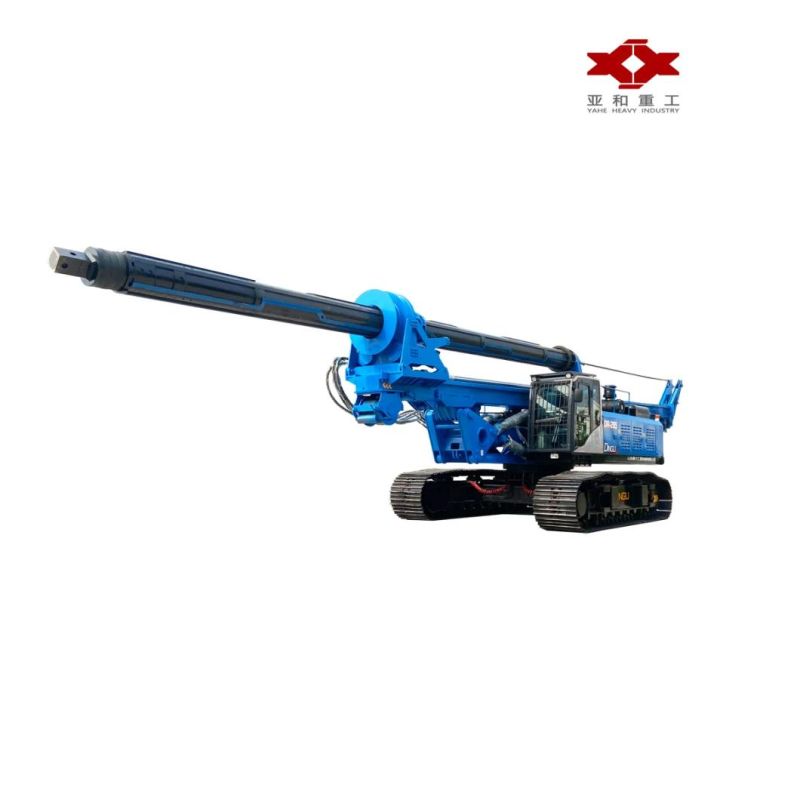

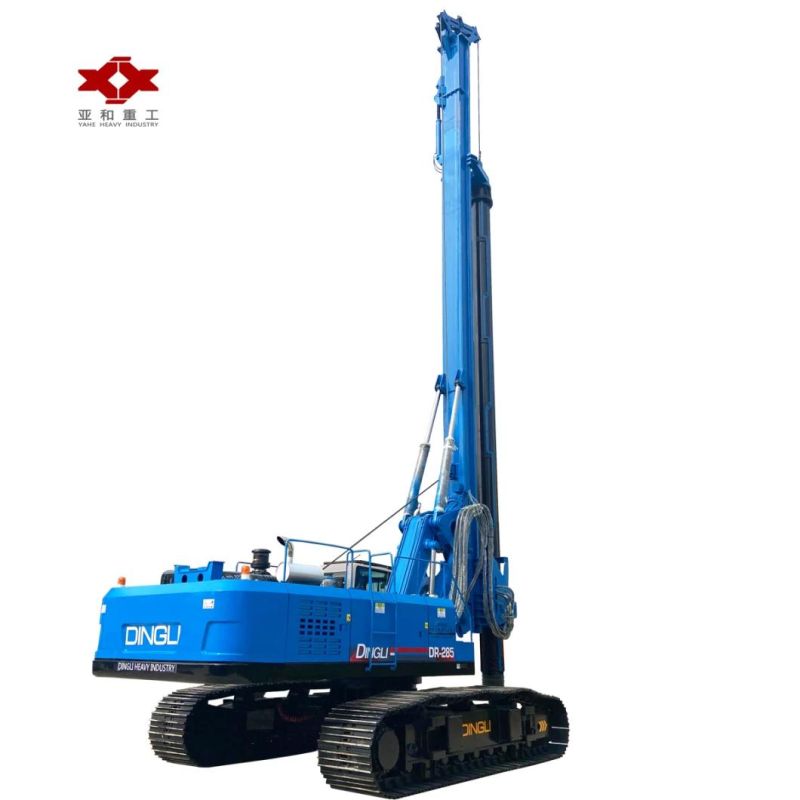

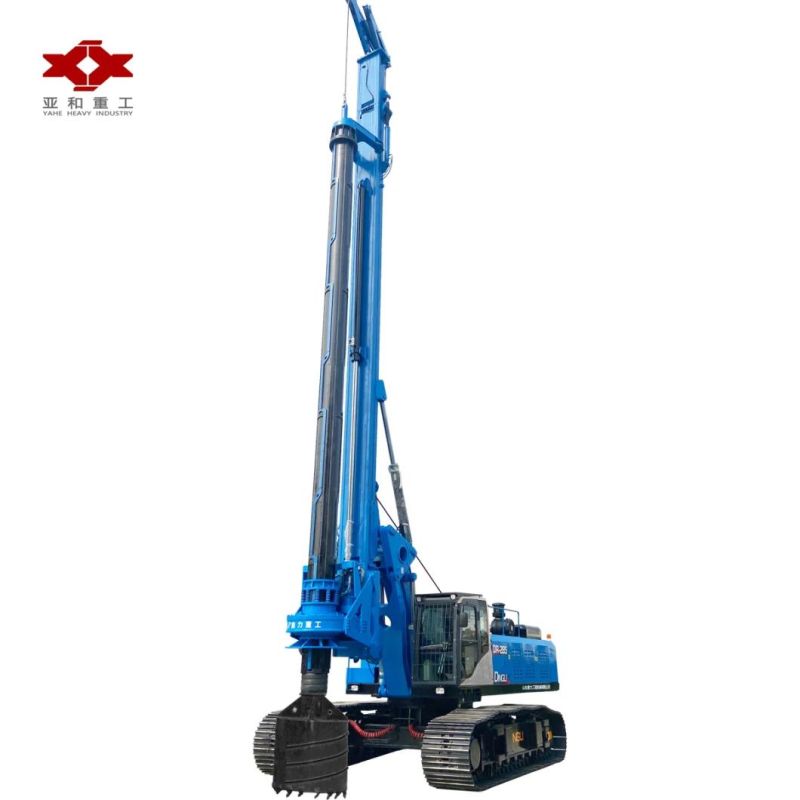

Machine Photos











Our service

1. Pre-sale service:
1) DingLi will provide production design, quotation sheet, working sites video, machinery photos.
2) Welcome to visit us at any time, we will pick you up.

2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.

3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.

Company profile

     Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.


 FAQ
1.Q: Are you a manufacturer?
   A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?
   A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?
   A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?
   A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?
   A: Yes, price depends on different quantity, different quantity will give you different price.
