• Model NO.：CDH-1300
• Drilling Way：Rotary
• Mast Height：11m
• Max. Torque：4,650n.M
• Weight：8,500kg
• Mud Pump：Bw250
• Drilling Angle：45-90
• Power：Diesel Engine
• Transport Package：Nude Packing
• Specification：6, 200 x 2, 240 x 2, 650 mm
• Trademark：BOHWA
• Origin：China
• HS Code：84304900
• Production Capacity：5set,Month

Basic Info.

Model NO. CDH-1300 Drilling Way Rotary Mast Height 11m Max. Torque 4,650n.M Weight 8,500kg Mud Pump Bw250 Drilling Angle 45-90 Power Diesel Engine Transport Package Nude Packing Specification 6, 200 x 2, 240 x 2, 650 mm Trademark BOHWA Origin China HS Code 84304900 Production Capacity 5set/Month

Product Description

CDH-1300 Full Hydraulic Core Drilling Rig
Technical Specification

1. Drilling Capacity
B-1,500 m
N-1,300 m
H-1,000 m
P-680 m

2. Drill Head
1)   Hole Diameter                                    121 mm
2)   Max. Torque                                       4,650N.m
3)   Spindle Max. Lifting Capacity             15,000 kg
4)   Max. Feeding Power                          7,500 kg
5)    Spindle Speed                                  Two Shifts/ Step less 0-1050 rpm

3. Winch
1)     Capacity of Main Winch

• Lifting Force(single wire)                   7,700 kg
• Steel Wire Diameter                           18 mm
• Steel Wire Length                               50 m

2)      Capacity of Wire Line Winch

• Lifting Force(single wire)                    1,200 kg (Bare drum)
• Steel Wire Diameter                            6.0 mm
• Steel Wire Length                               1,500 m

4. Diesel Engine

• Model                                                 Cummins
• Power                                                 145kw
• Speed                                                 2,200 rpm

5. Drill Mast

• Height                                                 11 m
• Adjustale Angle                                   0°- 90°
• Drilling Angle                                       45°- 90°
• Feeding Stroke                                   3,800 mm
• Dump Stroke                                       1,500 mm

6. Mud Pump

• Model                                                   BW250

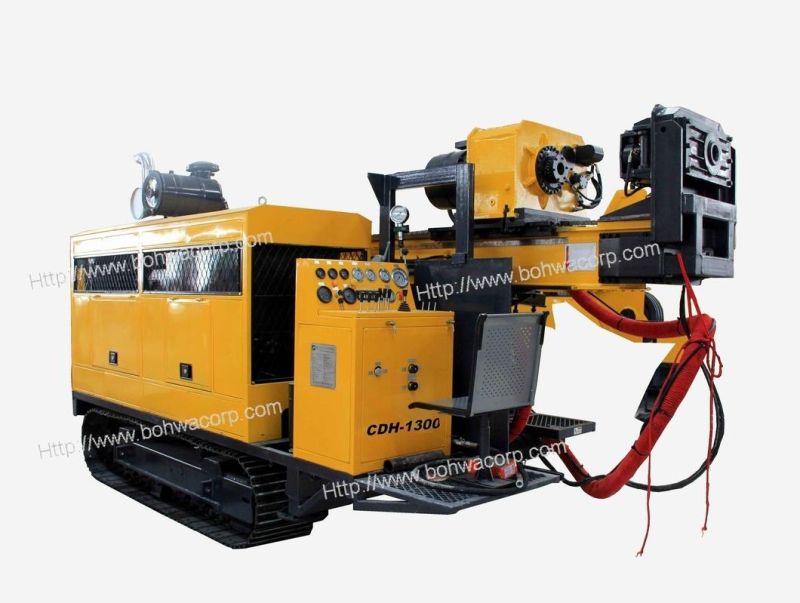

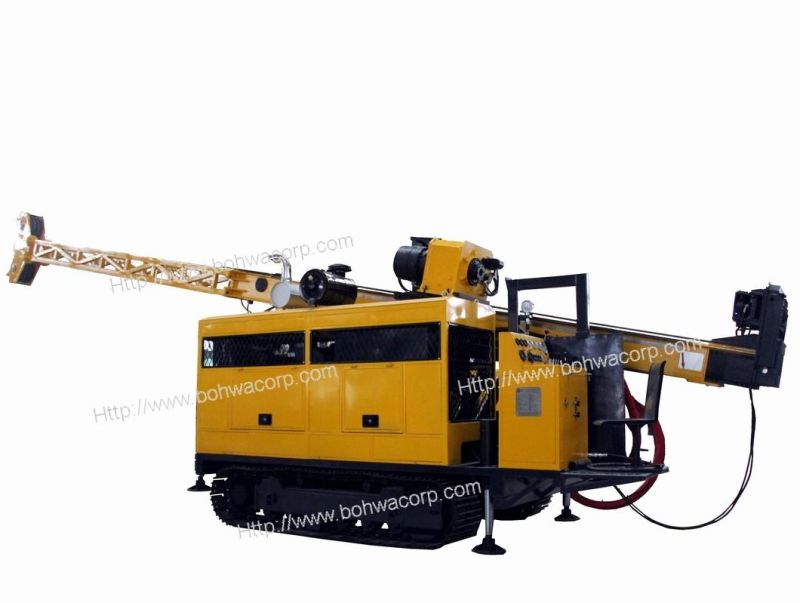

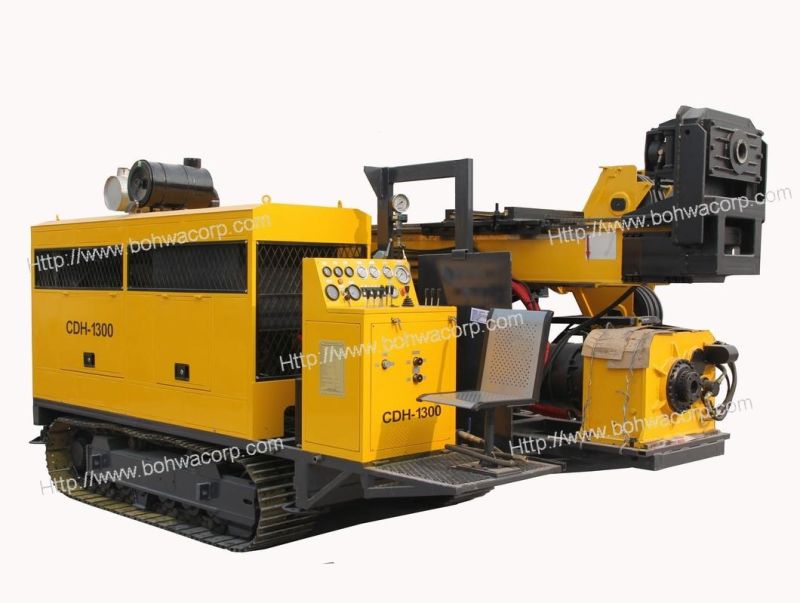

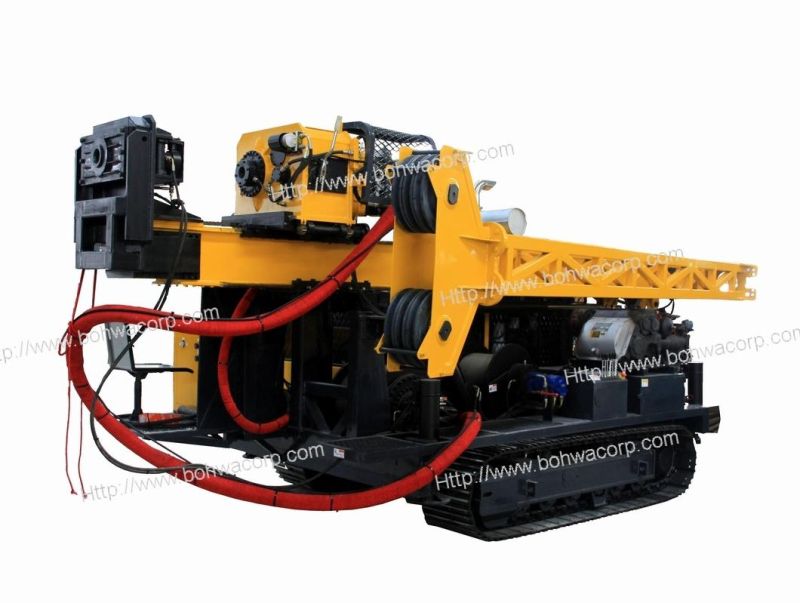

Product Show
