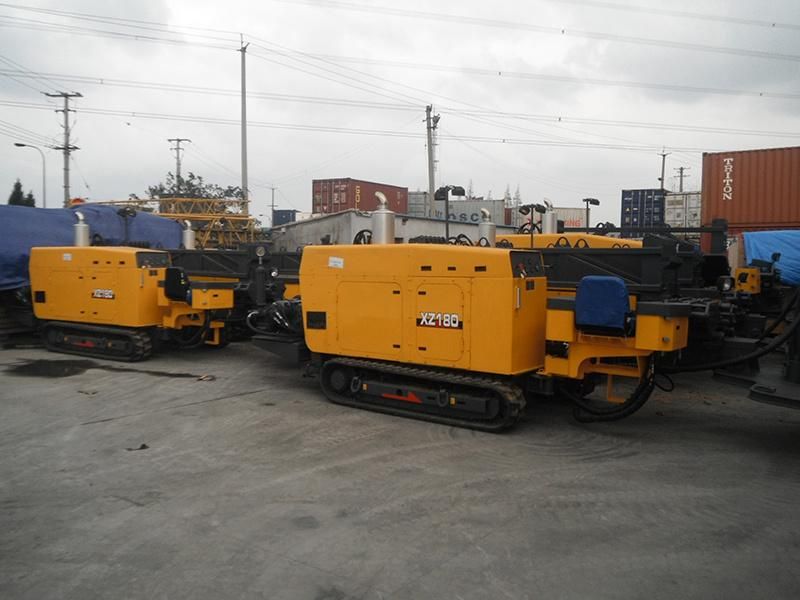

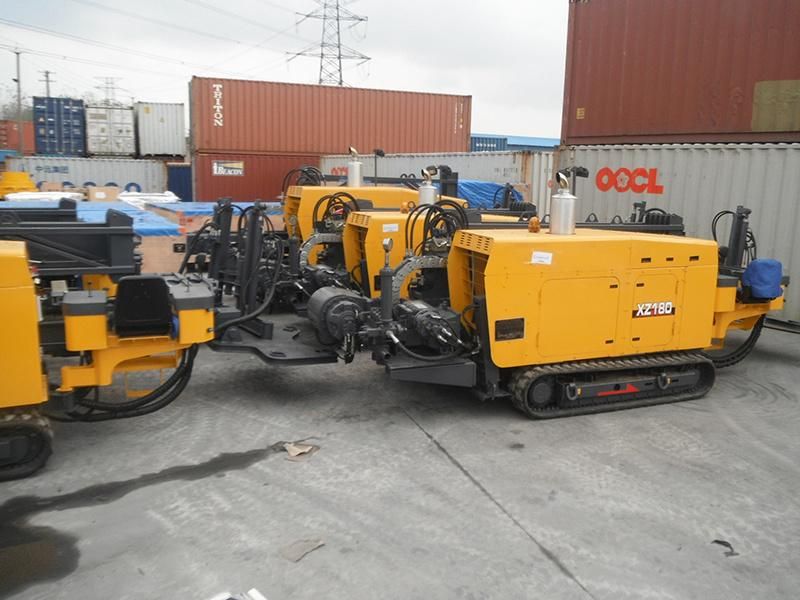

Horizontal Directional Drilling Rig Xz180 with Attachments
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：200-250mm
- Drill Hole Depth：100-150m
Base Info
- Model NO.：XZ180
- Bit Type：Drag Bit
- Drilling Way：Rotary
- Type：Crawler
- Rate Power：97,2200kw,R,Min
- Engine：6bt5.9-C130
- Max Thrust-Pull Force：180kn
- Thrust-Pull Speed：23m,Min
- Torque：6000n*M
- Max Spindle Speed：23r,Min
- Max Flow Rate：250L,Min
- Max Pressure：8MPa
- Weight：8.5t
- Transport Package：Nude
- Specification：6500*2270*2340mm
- Trademark：Famous
- Origin：China
- Production Capacity：5000
Description
Product DescriptionParameter
Company Profile
Project
Unit
Parameter
Engine
Type
6BT5.9-C130
Pated power
(kW/r/min)
97/2200
Thrust-Pull
Max thrust-pull force
(kN)
180
Thrust-pull speed
(m/min)
23
Rotation
Torque
(N·m)
6000
Max spindle speed
(r/min)
23
Mud pump
Max flow rate
(L/min)
250
Max pressure
(MPa)
8
Pipe
(mm×m)
φ60×3
Loader Crane
Lifting weight
(t)
-
Loading capacity
(t•m)
-
Max inclination angle
(°)
22
Max backreamer diameter
(mm)
φ600
Weight
(t)
8.5
Dimension
(mm)
6500×2270×2340
