Mining Drilling Machine / Jumbo / Rigs / CNC Drilling Rock China Brand High Quality Underground Drill Mining Equipment
Jikai(Hebei)Mechatronics Technology Co., Ltd.- After-sales Service：Service Machinery Overseas
- Warranty：One Year
- Certification：CE, ISO 9001:2000, Atex
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：200-250mm
Base Info
- Model NO.：CMS1-800
- Drill Hole Depth：200-250m
- Bit Type：Drag Bit
- Drilling Way：Rotary
- Rated Torque：800 N.M
- Rated Speed：200 R,Min
- Rated Rotary Pressure：17 MPa
- Rated Feed Pressure：17 MPa
- Propulsion Force：29 Kn
- Pull out Force：29 Kn
- Propulsion Stroke：1300 mm
- Max. Height：3400 mm
- Min. Height：2600 mm
- Column Tight Force：80 Kn
- Transport Package：Container
- Specification：2220*1000*2638
- Trademark：JIKAI
- Origin：Shijiazhuang City, Hebei, China
- HS Code：8430412200
- Production Capacity：100sets,Year
Description
At present, our company has built an advanced R&D system:Since 2007, the company has realized the network and digitization of R&D and design work;3D solid design and finite element analysis;Implemented product data lifecycle management (PLM);project workflow management; the integration of PLM system and ERP system;the paperless application of drawings and all technical data.

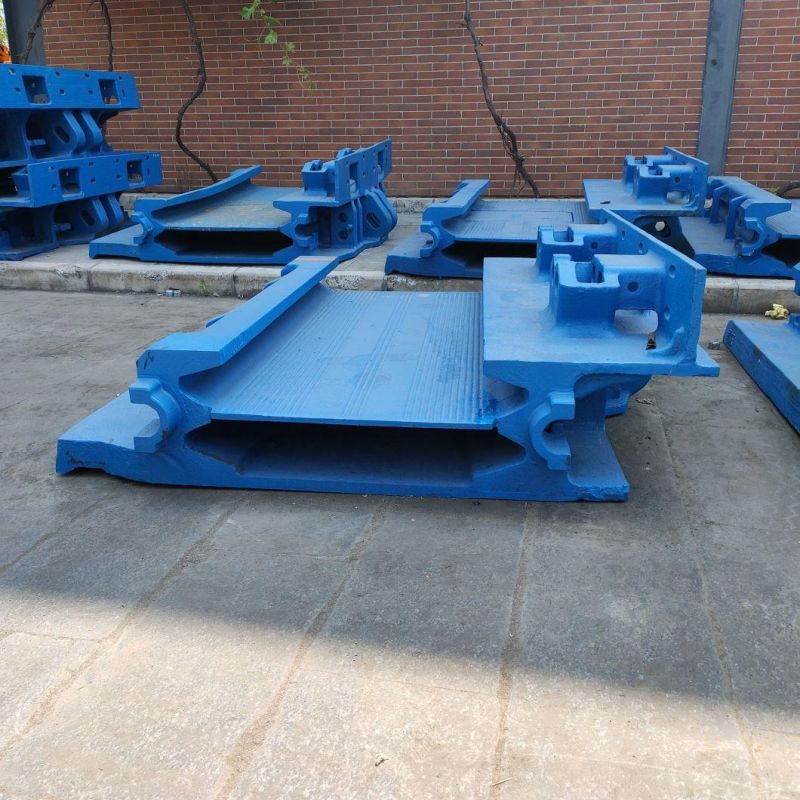

For example: 3D integral casting scraper conveyor not only greatly improves the service life of the scraper, but also promotes the intelligent construction of fully mechanized mining;Anti-gas and anti-groundpressure automatic drilling rig, equipped with remote control and video monitoring system, with real-time data collection functions, with one-key drilling function and anti-stucking functions, suitable for groundpressure prevention;The national III standard explosion-proof diesel engine monorail crane locomotive realizes multi-point direct transportation of hydraulic supports (48T); the drilling and bolting jumbo can drill with one key, and realize the automatic construction of anchor rods and anchor cable holes.
With firm determination and strong investment, our company has always improved the quality management system, and effectively implemented the quality management system of full participation, full responsibility, whole process control and continuous improvement.We vigorously improve the quality management level to ensure product quality,meet user requirements and be responsible for users.At present, our company has established an advanced quality assurance system.According to the continuously improving quality management requirements, the company has successively developed quality management software that meets the standard requirements, realizing automatic detection and controlling the whole process.
All products have corresponding quality control standards, which are completed simultaneously with design drawings and processes, and are recorded in the information management system.
Each product is marked with a unique permanent laser identification code when it is submitted for inspection. The inspection items and records correspond to each identification code, which realizes:1. Unique product quality identification; 2. Traceability of product quality problems; 3. Lifelong responsibility for product quality; 4. The basis for improvement is accurate and sufficient, and the improvement effect is tracked in place.
In recent years, we have been rated as Hebei Provincial Enterprise Technology Center, Shijiazhuang Coal Mining Machinery Engineering Technology Research Center, Hebei Coal Mine Safety Equipment Engineering Technology Research Center (in preparation), Hebei Coal Mine Safety Equipment Inspection and Testing Platform (in preparation), The public technology research and development platform for coal mining machinery and equipment of the Ministry of Commerce has been fully affirmed by relevant departments in terms of product research and development, quality inspection, engineering technology transformation, and public services.
In the future, the engineering laboratory will obtain income through technical patents and paid use of new products, undertaking technical engineering research and development tasks for coal mine safety equipment industry, government scientific research funding, technical training and technical services, etc. "The virtuous cycle operation mode, and strive to achieve the sustainable development of the laboratory.
Related product recommendation

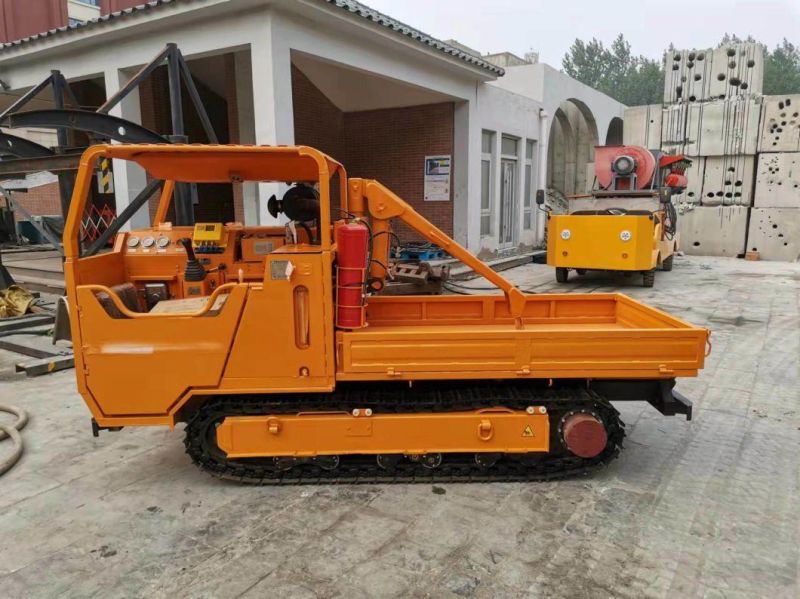

Main Features:1..Full hydraulic driving, reliable performance, monolever bidirectional driving, simple and accurate.
2..Crawler-mounted, ground pressure less than 0.06MPa, adapted to soft ground transportation.
3..Compact design, passing space 1200mm (optional 1100mm), good for narrow tunnel.
4..Bi-directional driving could solve the turning problems effectively.
5..The crane jib installed in the transporter could lift up material which weight is 1000kg.

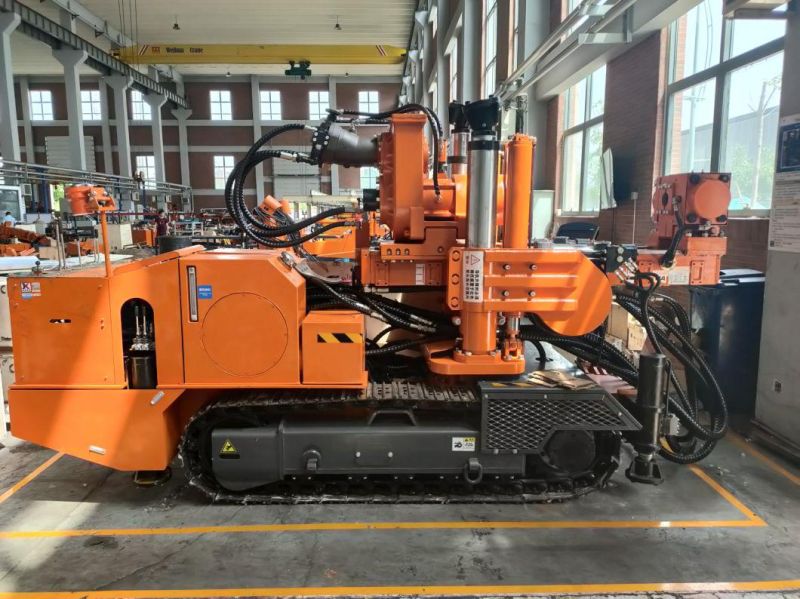

Technical Features:Stable structure,large drilling angle
Equipped with guide rails anc column fixed guide rail,up and down supporting type;guide rails and column are connected by taper shaft,which eliminates the clearance of guide rails and column and the drilling angle can be adjusted frolm -20° to +60°.
Cross barriers drilling
It can cross barriers such as belt conveyor to realize long distance drilling.
Fixed main frame, guide rail turns
The main frame can be fixed,turn the guide rail to realize drilling to different height,angle,and roadway sides.
Improve work efficiency by 3-5 times
With crawler self-propelled,move quickly and improve work efficiency by 3-5 times.
