• Model NO.：DRZ-Drill Truck
• Drill Hole Depth：100-150m
• Bit Type：Drag Bit
• Drilling Way：Rotary
• Type：Truck Mounted Drill
• Transport Package：Naked
• Specification：8000X2500X3800mm
• Trademark：DRZ
• Origin：China
• HS Code：8705909990
• Production Capacity：10000

Basic Info.

Model NO. DRZ-Drill Truck Drill Hole Depth 100-150m Bit Type Drag Bit Drilling Way Rotary Type Truck Mounted Drill Transport Package Naked Specification 8000X2500X3800mm Trademark DRZ Origin China HS Code 8705909990 Production Capacity 10000

Product Description

150m 4X4 Double Cabin Drill Truck DFAC
150m 4X4 All Wheel Drive Water Well Drilling Truck
Drill Trucks,Water Well Drilling Truck
Drill trucks For Sale,China Well Drilling Truck

Technical Parameters of 150m 4X4 Double Cabin Drill Truck DFAC


Drilling depth	Drilling diameter φ200mm Hourly depth 70m Drilling diameter φ150mm, hourly depth 100m
Drill rod diameter	φ50, 42 mm
Rotatory speed	Forward rotation   57-96-169 r/min Reverse rotation   38 r/min
Feeding force Drawing force	30/50 kN
Give progress	450 mm
Hoisting single rope lifting force	12.5 kN
Mud pump working pressure	2 Mpa
Mud pump displacement	450 Liters/Min
Hydraulic system pressure	8 Mpa

Dedicated function description for 150m 4X4 Double Cabin Drill Truck DFAC:
The crushing method is a percussive rotary drilling rig, which is mainly used for the construction of seismic blast holes, the general survey exploration of oil, natural gas and solid minerals, and the construction of engineering geological exploration in the urban construction, railway, and hydropower departments. It is also used for shallow formations. Hydrogeological exploration and water well drilling. It has a wide range of uses, and the operation is simple and easy to learn.

Use range for 150m 4X4 Double Cabin Drill Truck DFAC:
1).Used for the construction of seismic blast holes.
2).It is used for general survey and exploration shallow hole construction of oil, natural gas and solid minerals.
3).For urban construction, railway and hydropower departments to conduct engineering geological survey and construction.
4).Used for shallow hydrogeological survey and water well drilling.

Main advantage for 150m 4X4 Double Cabin Drill Truck DFAC:
1).Hydraulic pressure and strong lifting, saving manpower and reducing labor intensity.
2).The winch is a planetary winch, which is flexible, safe and reliable in operation.
3).A reverse gear mechanism is added to the reduction gearbox. A handle can be manipulated to enable the gyrator to have three positions of forward rotation, stop, and reverse rotation, which makes it easy to screw and unload the active drill rod, save time and effort.
4).The mud pump has a strong self-priming ability, and the flow rate can be adjusted to 10 levels.
5).The faucet is small in size, light in weight, and reliable in sealing.
6).The active drill pipe has good rigidity and self-heavy weight. It can be pressurized by its own weight when drilling, and the drilling efficiency is high.
7).The lifting and lowering derricki is hydraulically operated, which is easy to operate, safe and reliable.
8).The whole vehicle is equipped with four sets of hydraulic outriggers, which can adjust the extension length of any leg at will to adapt to different work sites.
9).The automobile transfer case is an integral, All wheel drive off-road type.

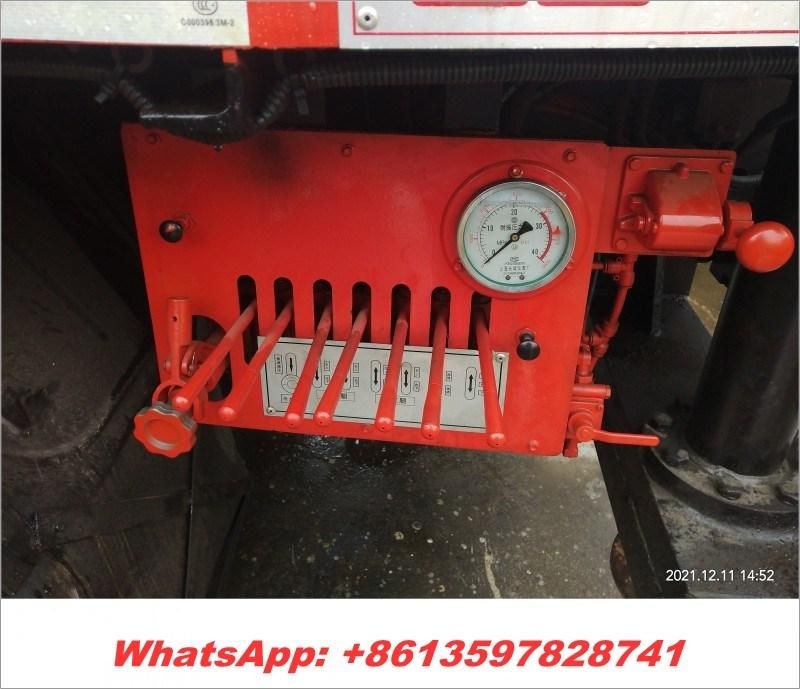

10).The forward and reverse rotation of the drilling rig can be realized on the console, and the operation is convenient and flexible.

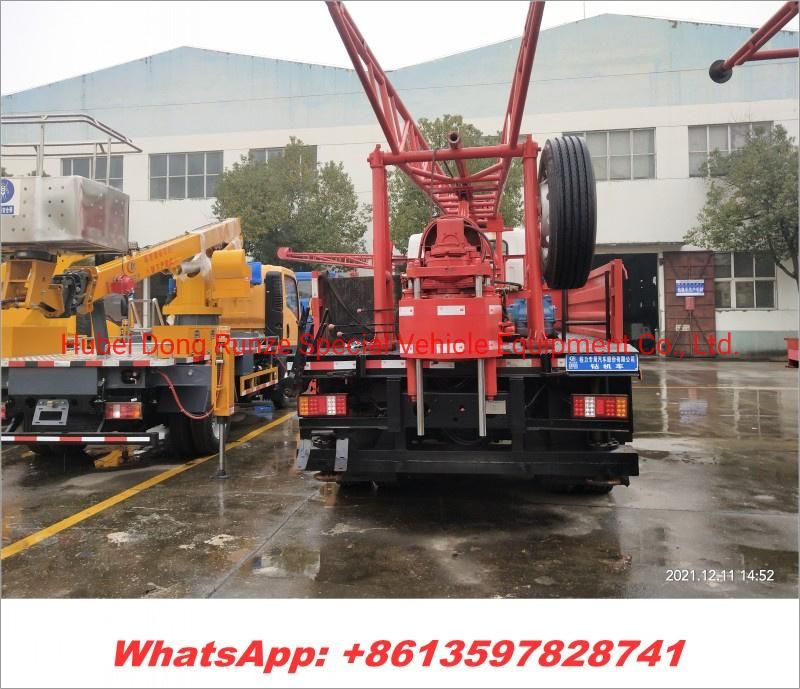

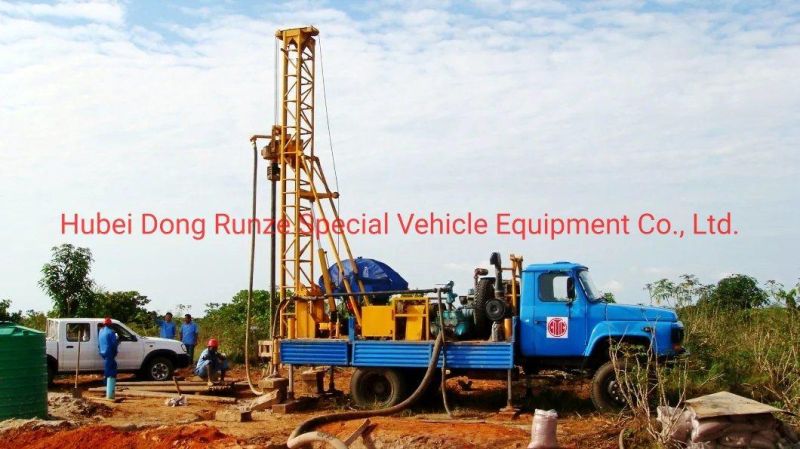

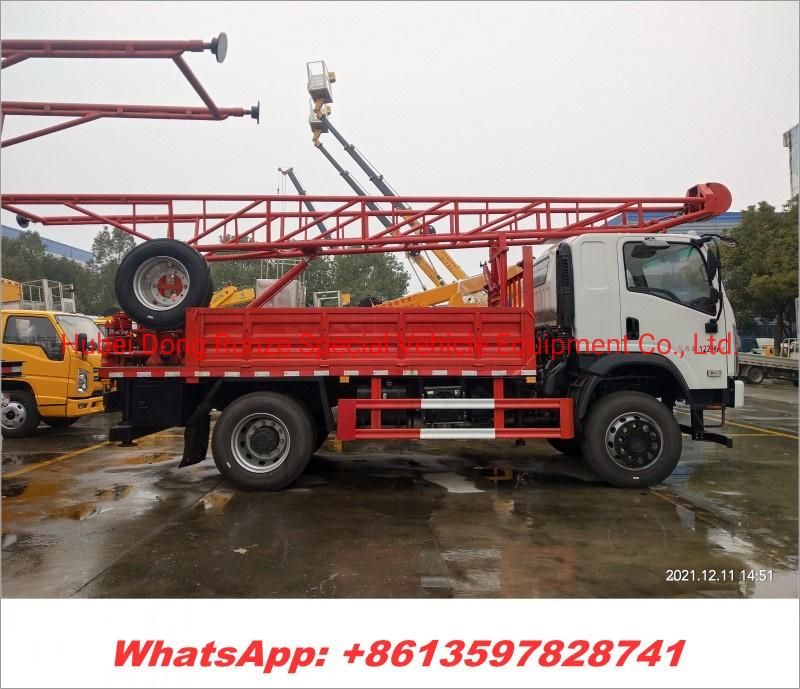

More Pictures for 150m 4X4 Double Cabin Drill Truck DFAC:

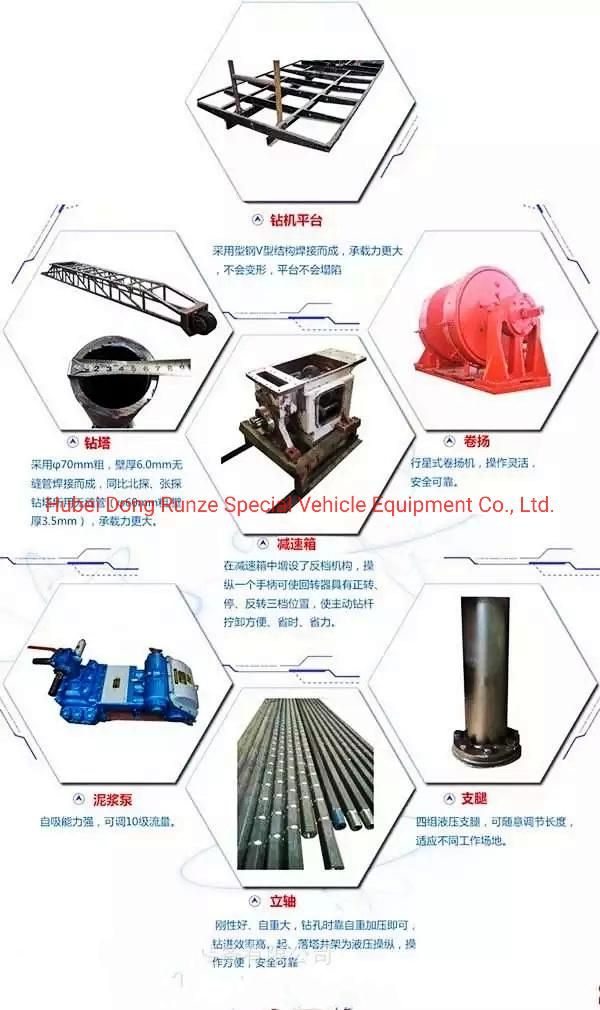

Advantage Technology for 150m 4X4 Double Cabin Drill Truck DFAC:
