Air Compressor Integrated Machine Down The Hole DTH Machine Price

Jinan Duobo Intelligent Technology Co., Ltd.
  • After-sales Service：Yes
  • Warranty：One Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：100-150mm

Base Info

  • Model NO.：ZGYX-453
  • Drill Hole Depth：<100m
  • Bit Type：Cone Bit
  • Drilling Way：Rotary
  • Total Weight：15t
  • Drill Pipe Length：5.0m
  • Host Power：264kw
  • Rotation Torque：4000n.M
  • Fad：19m3,Min
  • Swing Speed：40-70rpm
  • Drilling Speed：30-50 M,H
  • Walking Speed：2.5km,H
  • One Time Advance Length：3.3m,4.8m
  • Using Air Pressure：2.1MPa
  • Diesel Engine：Cummins Brand
  • Pull up Force：31kn
  • Hole Range：115-152mm
  • Drill Pipe Diameter：89mm
  • Climbing Angle：25 Degree
  • Transport Package：Export Standard Seaworthy Packing
  • Specification：11500x2300x3100mm
  • Trademark：Qingchi
  • Origin：Shandong, China
  • HS Code：843041
  • Production Capacity：100 Sets,Year

Description

Overview

Product Description

Detailed Photos

 Product Parameters

EngineCummins QSL8.9-C360-30   264KW, 2000rpmHole RangeDia. 115-152mmDrill pipe sortage4+1Drill pipe diameter89*5000mmDTH hammmer4"/5"Rotarion torque (Max.)4,000 N.mF.A.D.19M3/minWorking pressure (Max.)21barPull up force(Max.)31KnTravelling speed3 km/hGradient25 degreeTrack frame oscilation+/- 10 degreeTransportation diemension11200x2360x3100mmTotal weight15,000kg

Packaging & Shipping

Air Compressor Integrated Machine Down The Hole DTH Machine Price

Company Profile

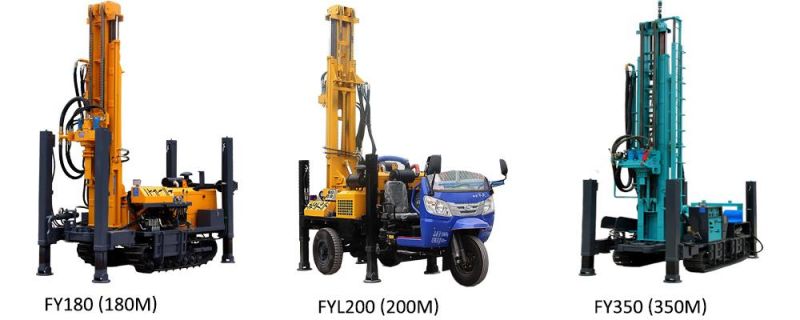

Other product

Air Compressor Integrated Machine Down The Hole DTH Machine Price



Our team

FAQ

1. Q: What kind of terms of payment can be accepted?
A: Normally we can work on T/T or L/C.

2. Q: Which incoterms 2010 terms can we work?
A: Normally we work on FOB, CFR, CIF, EXW, DDU.

3. Q: What about the delivery time?
A:7 days after receiving the deposit.

4. Q: What about the warranty time?
A:12 months after shipment, the engine is 6 months.

5. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 set.

6. Q: Could you stick customers' brands on the products?
A: We warmly welcome the OEM orders.
