Light in Weight Mqt Anchor Drilling Machine Pneumatic Roof Bolter
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Certification：CE, TUV, BV
- Condition：New
- Motor：Pneumatic
- Drill Hole Diameter：<100mm
- Drill Hole Depth：<100m
- Bit Type：Rock Anchor Bolt
Base Info
- Model NO.：MQT
- Drilling Way：Rotary
- Working Air Pressure：0.4-0.63 MPa
- Free Running Speed：600 Rpm
- Static Torque：200nm
- Working Air Pressuretmpat0.4-0.63 Free：0.5MPa
- Rated Rotate Speed：190rpm
- Rated Torque：120nm
- Power Output：2.1-2.8kw
- Air Consumption：3.5m3,Min
- Maximum Push Force：8.2kn
- Flushing Water Pressure：0.6-1.2MPa
- Transport Package：Carton Box, Plastic Bagsor as Your Payment
- Specification：CE
- Trademark：China Coal
- Origin：China
- Production Capacity：1000 Sets Per Month
Description
<90Leg Type I II III I II III I II III I II III Weight (Kg) 45 47 49 48 50 50 48 50 52 48 50 52 Max Height (Mm) 2566 3046 3614 2552 3032 3600 2552 3032 3600 2552 3032 3600 Min Height (Mm) 1189 1309 1451 1175 1295 1437 1175 1295 1437 1175 1295 1437

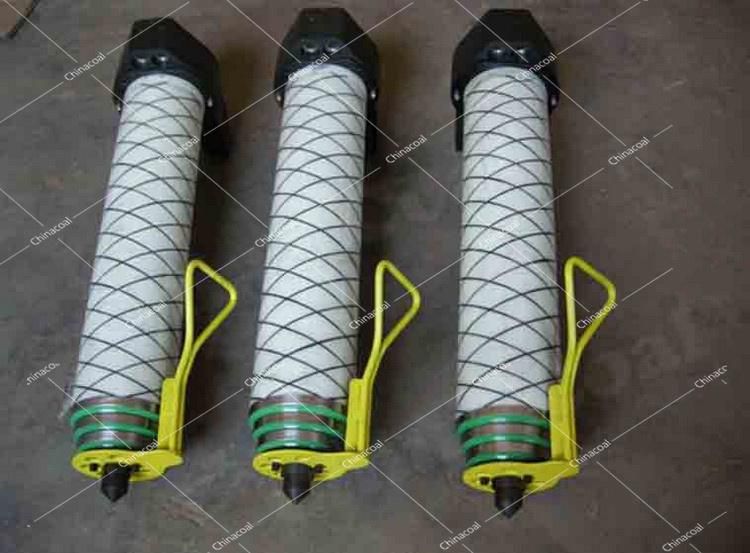

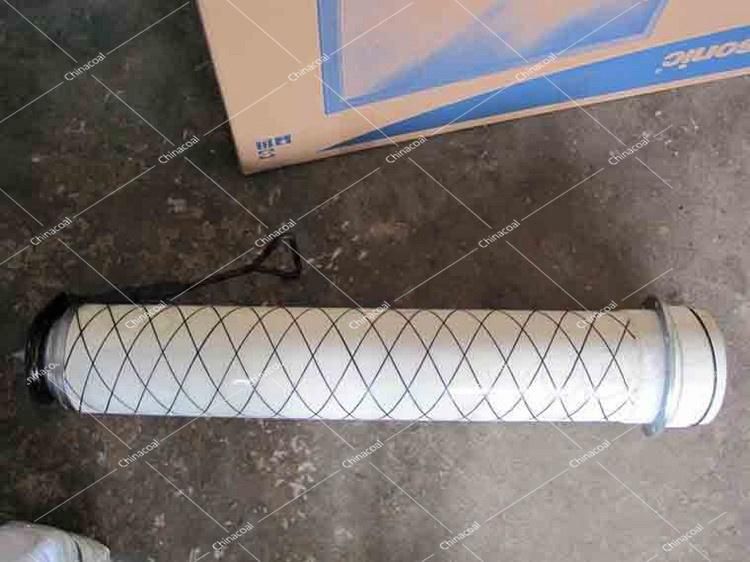

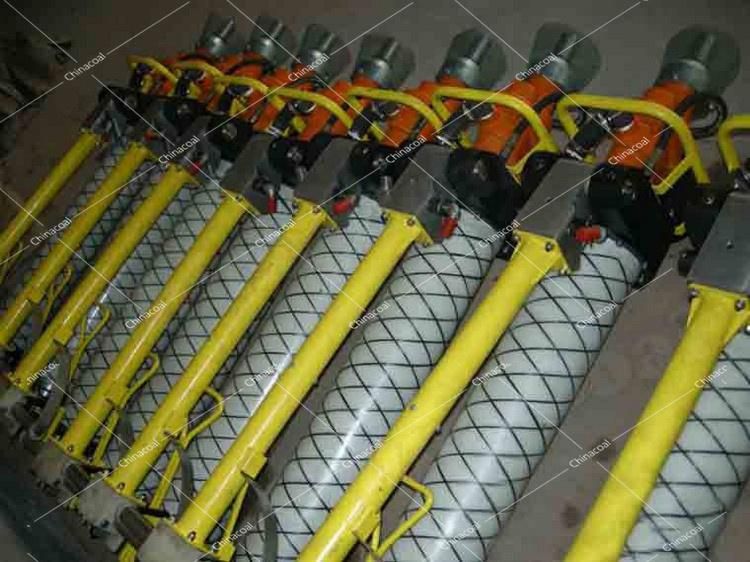

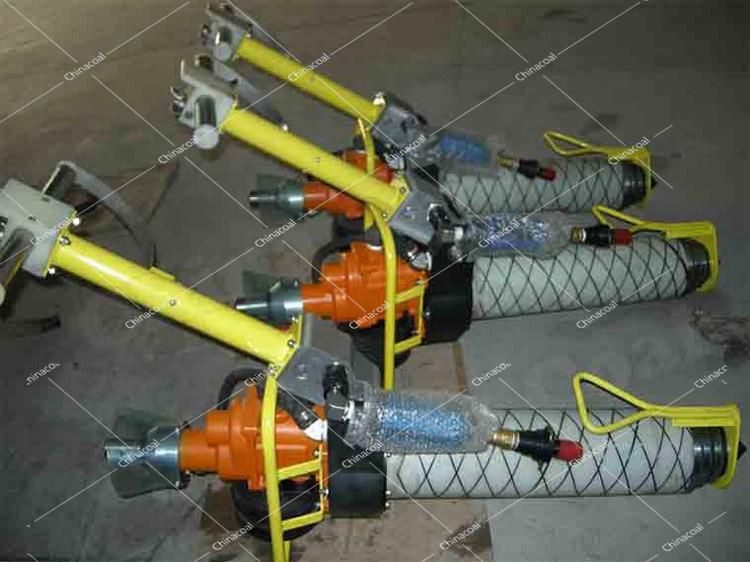

Pictures of Light In Weight Mqt Anchor Drilling Machine Pneumatic Roof Bolter
