• Model NO.：ZDY6000LD(B)
• Drill Hole Depth：>300m
• Bit Type：Drag Bit
• Drilling Way：Compound
• Rated Torque：6000~1600 N·m
• Rotary Speed：50~190 R,Min
• Braking Torque：1000 N·m
• DIP of The Main Axis：-30~30 °
• Horizontal Drill Height：1.45 M
• Max Feed/Pull Force：230,230 Kn
• Feed/Pull Stroke：1000 mm
• Power：75 Kw
• Max Travelling Speed：2.2 Km,H
• Max Gradeability：15 °
• Weight：7500 Kg
• Transport Package：Wooden Box
• Specification：3.70*1.45*2.00
• Trademark：MK
• Origin：Xi′an

Basic Info.

Model NO. ZDY6000LD(B) Drill Hole Depth >300m Bit Type Drag Bit Drilling Way Compound Rated Torque 6000~1600 N·m Rotary Speed 50~190 R/Min Braking Torque 1000 N·m DIP of The Main Axis -30~30 ° Horizontal Drill Height 1.45 M Max Feed/Pull Force 230/230 Kn Feed/Pull Stroke 1000 mm Power 75 Kw Max Travelling Speed 2.2 Km/H Max Gradeability 15 ° Weight 7500 Kg Transport Package Wooden Box Specification 3.70*1.45*2.00 Trademark MK Origin Xi′an

Product Description

[Application scope and technical characteristics]
ZDY6000LD(B) directional drill rig (pictures and technical specification are as follows) is a kind of low-speed & high-torque full hydraulic drill rig used to drill large-diameter boreholes. The rig is specifically designed to drill especially long directional drilling boreholes (depth up to 1000 meters) in explosive underground environments. It has a compact footprint mounted on tracks, and is integrated with certified explosion-proof electrics and explosion-proof laptop. The machine has many advantages, such as reasonable structure, advanced technical performance, strong technology adaptability, labor-saving, safe and reliable, good disassembly performance, convenient to move etc.

[Components of directional drilling system]

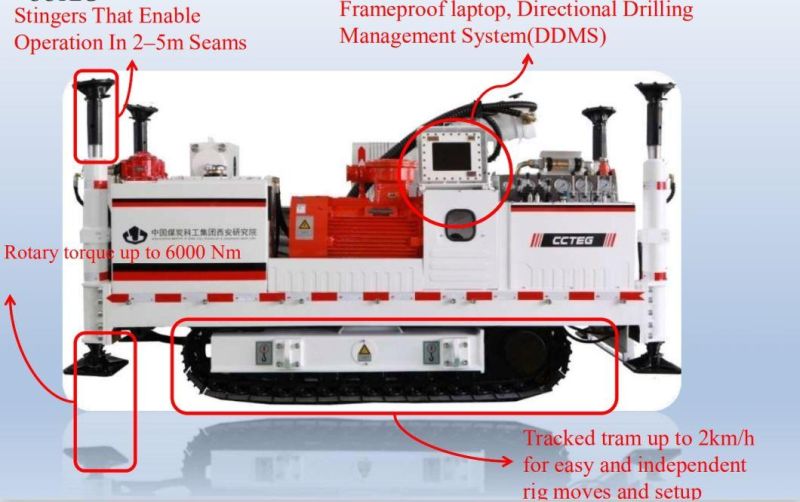

1. Drilling rigThe rig has a compact footprint mounted on tracks, and is integrated with certified flameproof electrics and flameproof laptop. The rigs is designed to drill in-seam in excess of 1000m with downhole motor, directional drilling management system, CHD drill rods and PDC drill bits.

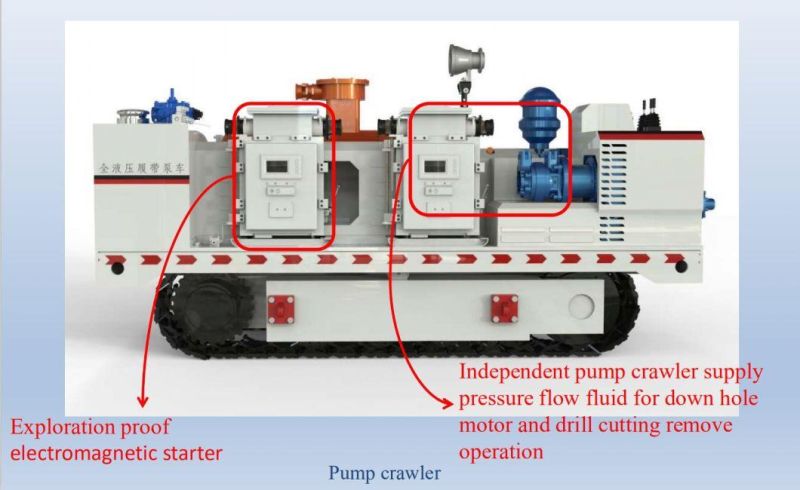

2. Pump stationBLY260/9 mud pump crawler is a hydraulic pump crawler with large flow rate (the max flow rate is 260l/min) and high mud pressure (rated pressure is 9Mpa). The pump can maintain enough flow rate under high pressure work situation. It can supply enough hydraulic fluid power for downhole motor operation and drill cut remove to meet the requirement of long depth directional borehole drilling.



[Technical specification]


Type	ZDY6000LD(B)
Rated torque/N • m	6000~1600
Rated speed/(r/min)	50~190
Brake torque/N • m	1000
Borehole depth/m	1000/600
Rod diameter/mm	73
Dip of the main axis/°	-30~30
Horizontal drill height/m	1.45
Max feed/pull force/kN	230/230
Feed/pull stroke/mm	1000
Power/kW	75
Max travelling speed/(km/h)	2.2
Max gradeability/°	15
Weight/kg	7500
Dimension(L×W×H)/m	3.70×1.45×2.00

[Application]
(1) Sihe Coal Mine, Jincheng Mineral Group, China
Sihe Coal Mine is a highly gassy mine of Jincheng Mineral Group. ZDY6000LD(B) directional drilling system have been used to execute relative long-distance directional sub-horizontal boreholes for gas drainage. Hundreds boreholes with multi-sidetracks were accomplished and gas drainage efficiency was to increase dramatically which ensure mining safety. Application of directional drilling technology leads to millions cost save to the company. Several typical directional boreholes in the mine are as follows.

Borehole 1# in Dongyi mining area: Maximum depth is 690 meters. 14 sidetracks were drilled. Accumulated footage is 3162m.

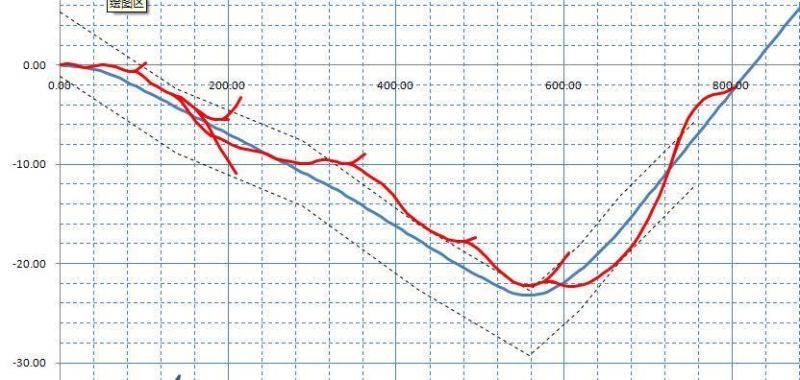

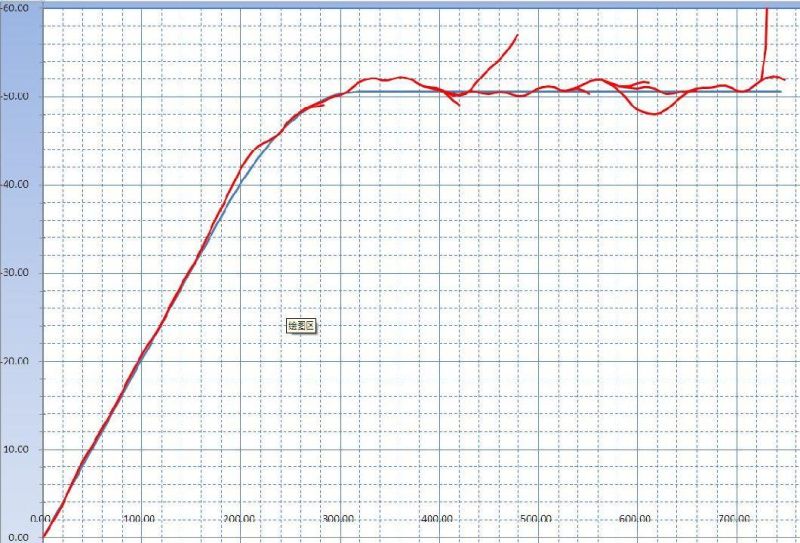

                                    Profile graph of borehole trajectory Borehole 1# in Dongyi mining area

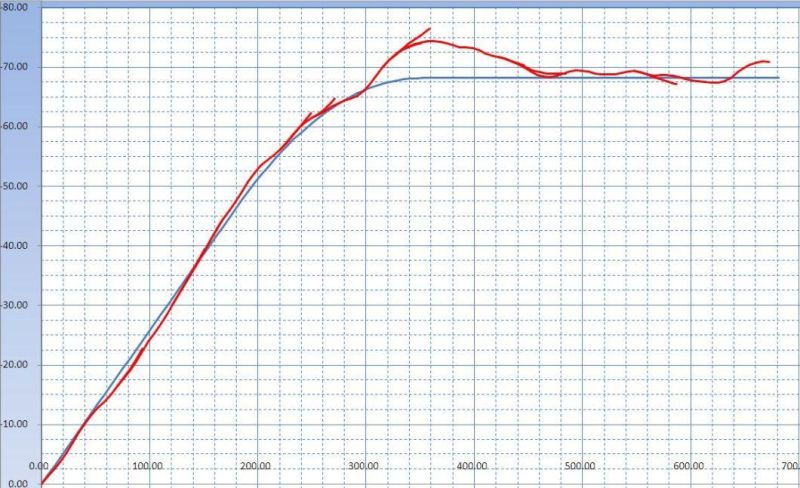

                                      Planar graph of borehole trajectory Borehole 1# in Dongyi mining area

Borehole 2# in Dongyi mining area: Maximum depth is 762 meters, 6 sidetracks were drilled.

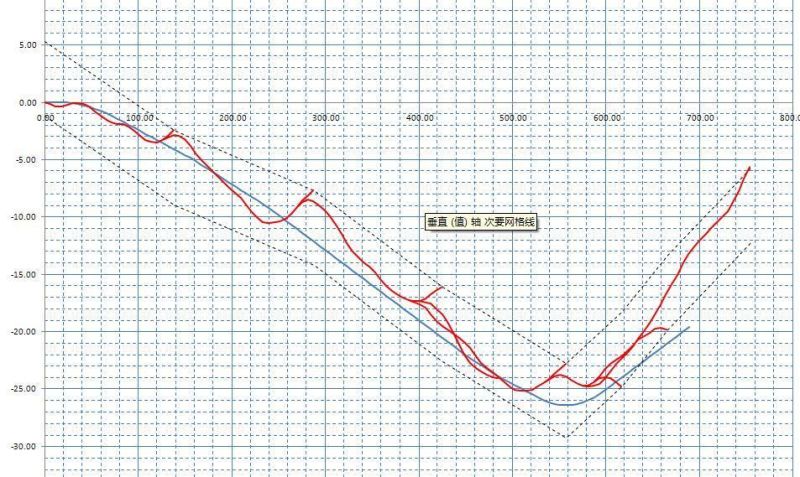

                                 Profile graph of borehole trajectory Borehole 2# in Dongyi mining area


                                   Planar graph of borehole trajectory Borehole 2# in Dongyi mining area

Borehole 3# in Dongyi mining area: Maximum depth is 807 meters, 5 sidetracks were drilled.

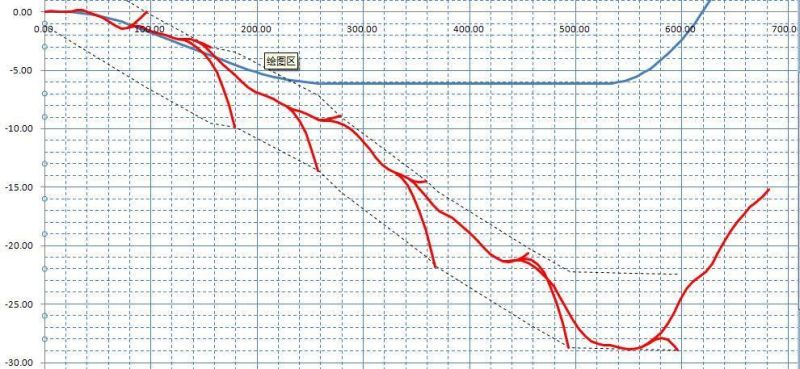

                                     Profile graph of borehole trajectory Borehole 3# in Dongyi mining area


                                    Planar graph of borehole trajectory Borehole 3# in Dongyi mining area

Borehole 4# in Dongyi mining area: Maximum depth is 1014 meters, 7 sidetracks were drilled. Accumulated footage is 1317m.

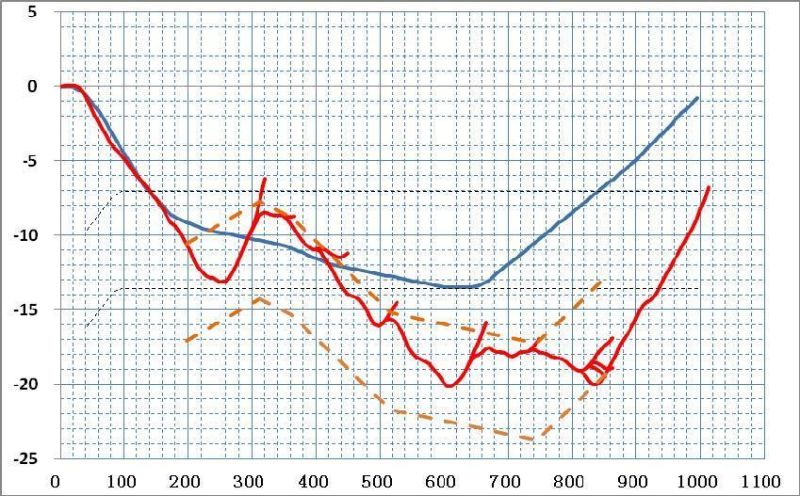

                                      Profile graph of borehole trajectory Borehole 4# in Dongyi mining area

Borehole 5# in Dongyi mining area: Maximum depth is 1059 meters, 10 sidetracks were drilled. Accumulated footage is 1656 meters.

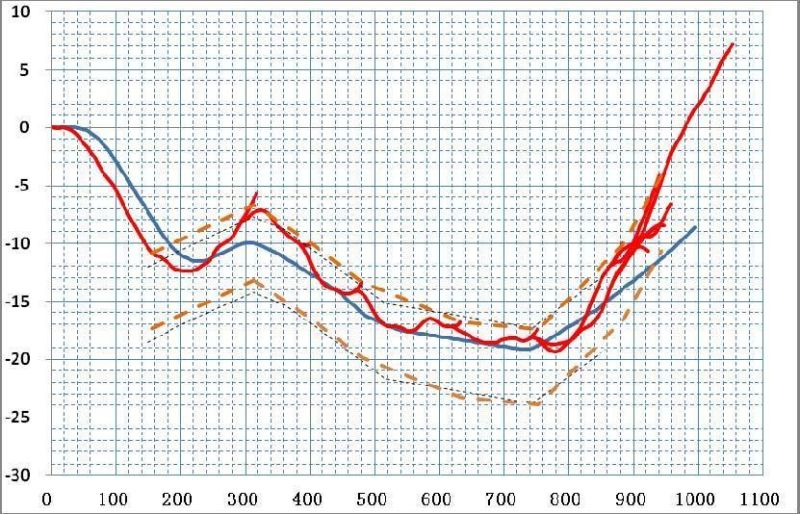

                                        Profile graph of borehole trajectory Borehole 5# in Dongyi mining area

(2) Baode Coal Mine, Shenhua Group, China
ZDY6000LD(B) directional drilling system has been widely used in Baode Coal Mine, Shenhua Group. Tens of directional boreholes have been accomplished to solve gassy problem in the coal mine. A typical borehole depth exceed 1100 with 7 sidetracks is listed in the following graph.

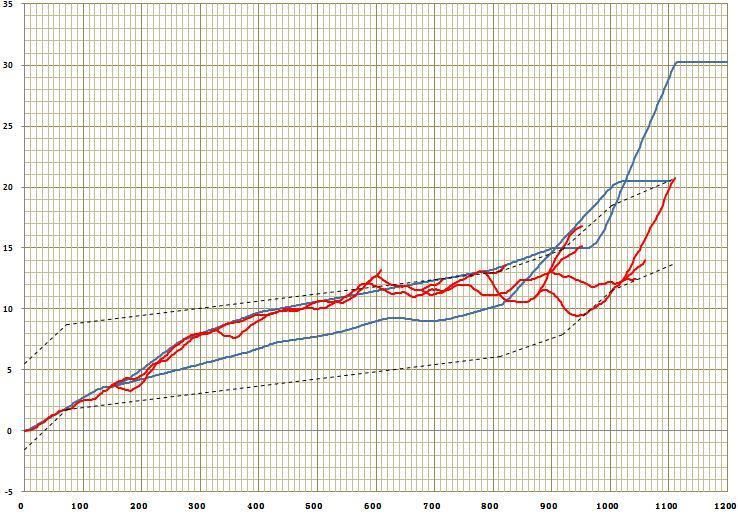

                                        Profile graph of directional borehole trajectory in Baod Coal Mine

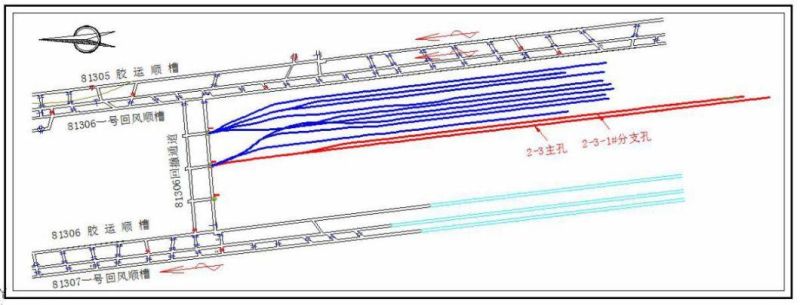

                                       Directional drilling borehole design in 81306 working face, Baode Coal Mine
