• Model NO.：YG-MG40,50,70,70A
• Type：Portable
• Product Name：Anchor Drilling Rig
• Application：Support Hole Drilling
• Hole Angle：0-90°
• Output Rotary Speed：90,70rpm
• Max Lifting Force：25,30,35kn
• Electric Voltage：380V
• Drilling Rod Diameter：76*1500mm
• Rated Output Torque：2400,2500,3900n*M
• Power Head Max Stroke：1800mm
• Oil Pump Electric Power：4,22kw
• Transport Package：Standard Wooden Case
• Specification：3100*1000*1500mm
• Trademark：YUGONG
• Origin：China (Mainland)
• HS Code：8401200000
• Production Capacity：2600sets,Month

Basic Info.

Model NO. YG-MG40/50/70/70A Type Portable Product Name Anchor Drilling Rig Application Support Hole Drilling Hole Angle 0-90° Output Rotary Speed 90/70rpm Max Lifting Force 25/30/35kn Electric Voltage 380V Drilling Rod Diameter 76*1500mm Rated Output Torque 2400/2500/3900n*M Power Head Max Stroke 1800mm Oil Pump Electric Power 4/22kw Transport Package Standard Wooden Case Specification 3100*1000*1500mm Trademark YUGONG Origin China (Mainland) HS Code 8401200000 Production Capacity 2600sets/Month

Product Description

Deep Foundation Pit Support Anchoring Tunnel Boring Machine
Rig Description

The anchor drilling machine is mainly used in the sliding wave control engineering of railway, highway, water conservancy and hydropower facilities, the anchorage engineering of dangerous rock mass, the anchorage engineering of high slope rock mass such as controlling the displacement of buildings, etc. It is also used for the construction of deep foundation pit support and foundation reinforcement engineering holes, water well hole drilling, blasting engineering holes and tunnel pipe shed support holes. It is characteristic of compact structure, small size, light weight, flexible, and wide application. You can choose different models of this drilling rig according to your construction requirements and geological conditions to achieve the best drilling efficiency.



Technical Parameter of the Drilling Rig


Model	YG-MG40	YG-MG50	YG-MG70	YG-MG70A
Hole Depth(m)	10-60	25-70	35-80	35-80
Hole Diameter(mm)	90-180	90-165	90-200	110-230
Rod Spec(mm)	Φ76*1500	Φ76*1500/ Φ89*1500	Φ76*1500/ Φ89*1500	Φ76*1500/ Φ89*1500
Hole Angle	0-90°	0-90°	0-90°	0-90°
Output Rotary Speed(rpm)	90	70	70	---
Rated Output Torque(N*m)	2400	2500	3900	3900
Power Head Max Stroke(mm)	1800	1800	1800	1800
Max Lifting Force(KN)	25	30	30	35
Power Head Max Feeding Force(KN)	20	25	25	25
Hydraulic System Rated Pressure(Mpa)	16	17-18	17-18	17-18
Rotary Electric Power	4-pole/7.5kw	Hydraulic	Hydraulic	Hydraulic
Oil Pump Electric Power(kw)	4	22	22	22
Electric Voltage	380v	380v	380v	380v
Weight(kg)	1000	1260	1460	1600
Hydraulic Station Dimension(mm)	640*600*580	1850*780*1360	1850*810*1280	---
Dimension(mm)	2800*800*1400	3000*780*1360	3100*1000*1500	3100*1000*1500

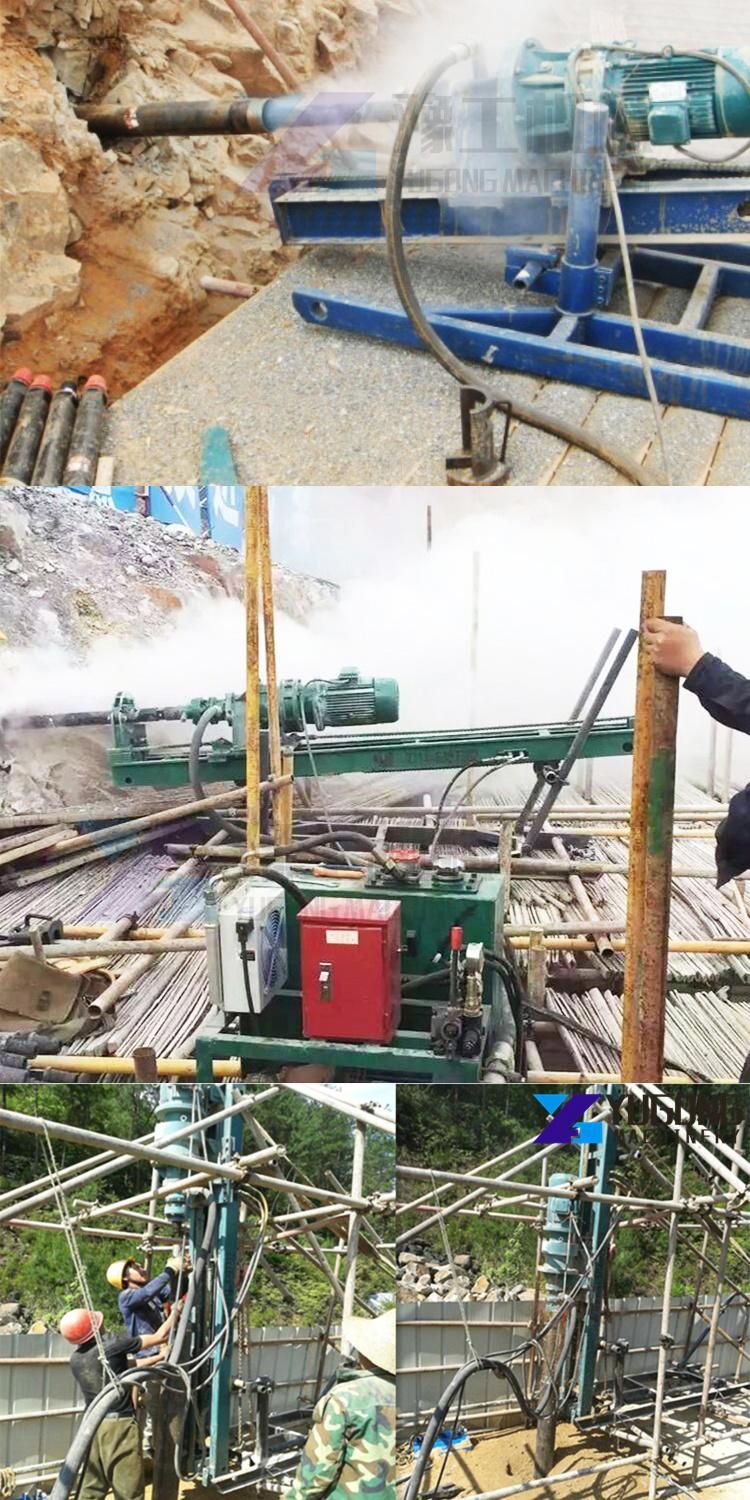

Wide Application of the Anchor Drilling Machine:

1. Reinforcement of slope of hydropower station/railway/highway;
2. Landslide and dangerous rock mass anchoring engineering in geological disaster prevention and control;
3. High slope rock mass anchoring engineering;
4. Urban deep foundation pit support;
5. Anti - floating bolt and foundation grouting reinforcement engineering hole drilling;
6. Blasting hole in blasting engineering;
7. High pressure rotary jet pile;
8. Tunnel shed support hole drilling.

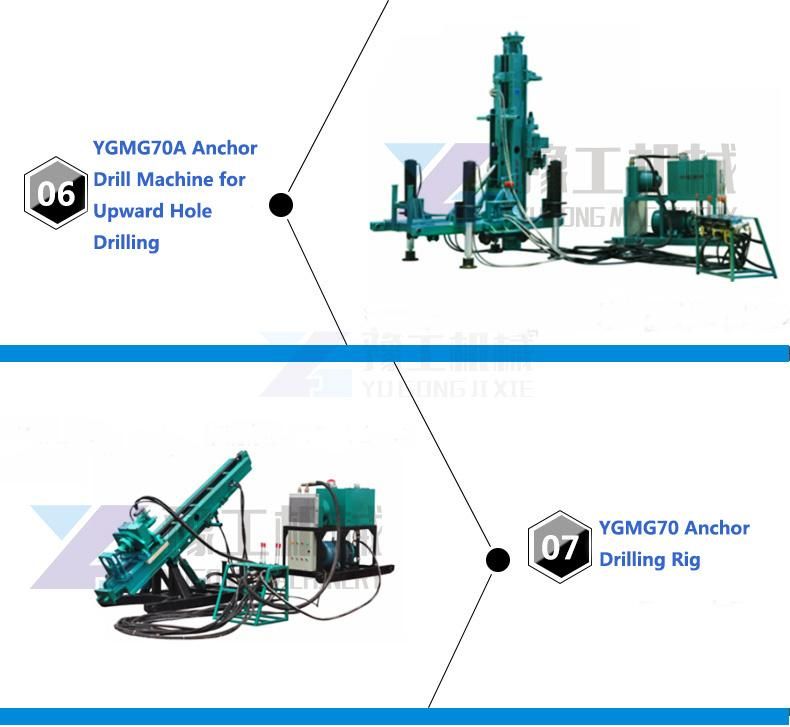

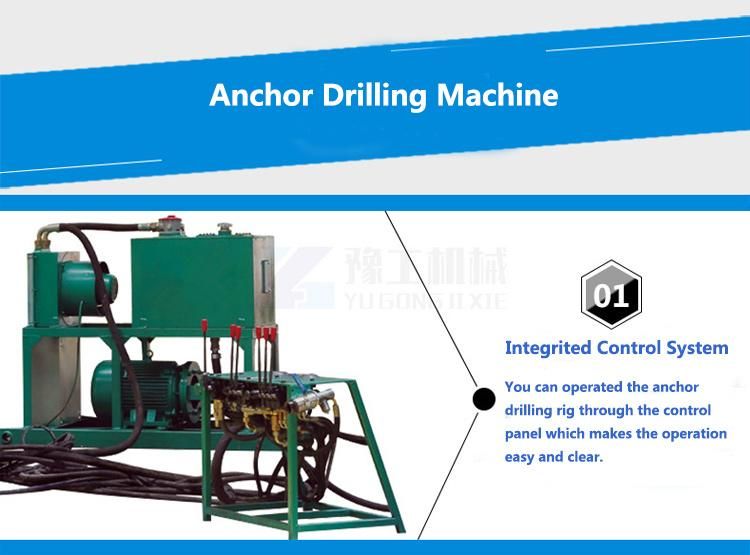

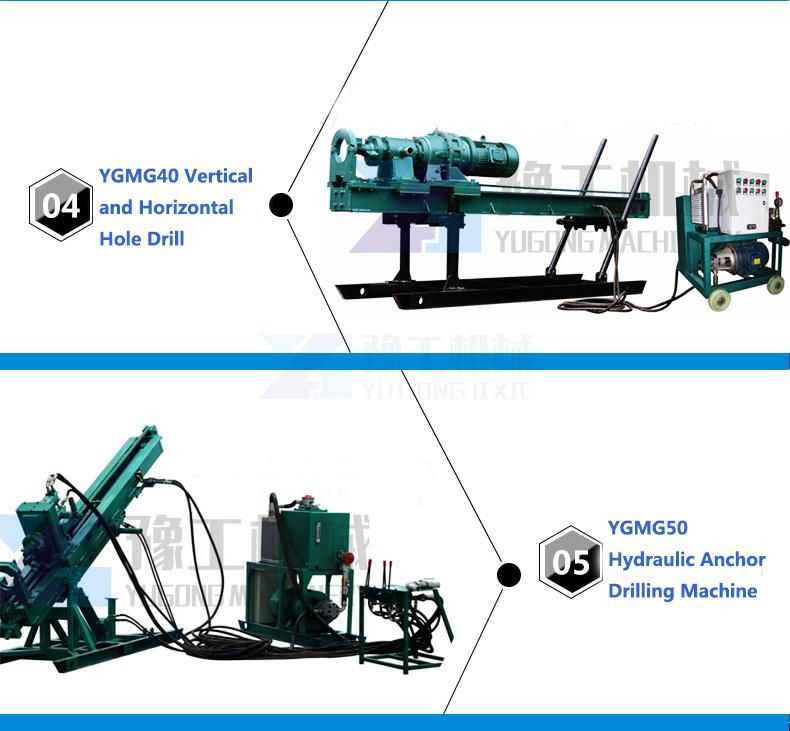

Details Overviews

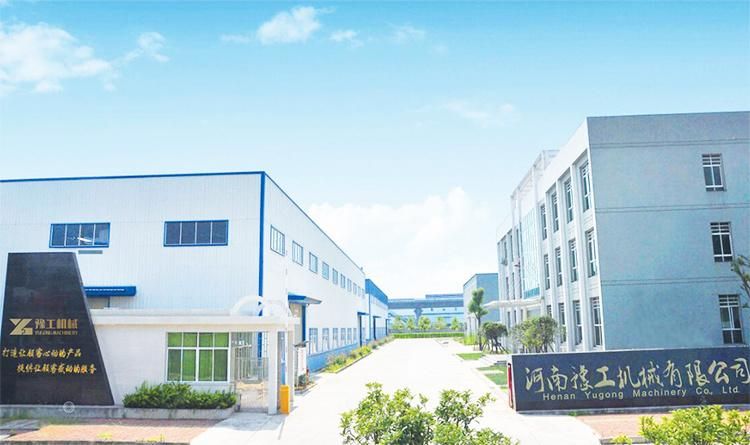

Company Information



Henan Yugong Machinery Co., Ltd., located in Room 2702, 27th Floor, Block B, Jingsha Plaza, Jingguang Road, Erqi District, Zhengzhou, Henan, China, gains its rapid development as a reputable machinery manufacturer. We develop from a small company with only 6 people to a company with over 100 people thanks to the trust of our customers and innovation of ourselves. We always insist that only quality can make us successful, and only innovation creates wider development direction for us.


For drilling rigs, we have exported to countries like America, Honduras, South Africa, Sri Lanka, Bolivia, Domini, Ghana, Pakistan, Afghanistan, Norway, Australia, Philippines, Lizhi, Ethiopia, Mexico, Qatar, etc. And we believe, we still have a long way to go. We will dedicate to the design and production of the drilling rigs.

You can find water well drilling rigs, core drilling machine, engineering drilling rigs, DTH drilling rigs, air drilling rigs, crawler drilling rigs, and tractor-, truck-, and trailer-mounted drilling rigs here in Yugong. If you want to know details, just click into and check. If you need price list, please send email, and we will reply you within 12 hours.

Our Services

1. Pre-Sale Service: Recommend Suitable Machine According to Your Application.
2. In-Sale Services: Confirm the Order, Arrange Item Production, Supervise the Packaging and Shipping, and Offer Buying Guide to Finish the Purchase.
3. After-Sale Services: 24 Hour Technical Support Online. Contact Us to Get the Prompt Reply.


FAQ

1. Q: You are a Trading Company or Manufacturer?
    A: We are an original reliable machinery manufacturer
2. Q: Do you Provide Samples? For Free or charge?
    A: Yes, we can provide samples, but not for free. You have to pay for samples and freight.
3. Q: What Should We do if the Item doesn't Meet our Requirements after Receiveing?
    A: If the item doesn't meet your requirements after receiving it, you can return it within 10-15 days.
4. Q: How Long is your Delivery Time?
    A: It depends on the machine you buy and the quantity. Generally it is 3-5 days if the machine is in stock. And it will take 15-30    days if you want customized type.
5. Q: What is your Payment Term?
    A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc. Payment<=USD 5000, 100% in advance.  Payment>=USD 5000, 30% T/T in advance, balance before shipment

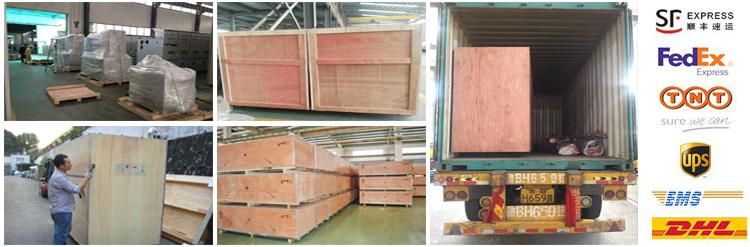

Packaging & Shipping



Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 20-30working days after deposit.
