Yuchai Rotary Drilling Machine Ycr60d Drilling Rig
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Motor:AC Motor
- Drill Hole Diameter:150-200mm
- Drill Hole Depth:100-150m
- Bit Type:Diamond Bit
Base Info
- Model NO.:YCR60D
- Drilling Way:Rotary
- Type:Crawler
- Total Weight:20000kg
- Max. Output Torque:60kn*M
- Rated Power:86,2200kw,Rpm
- Traction Force:104kn
- Rotary Speed:0-35rpm
- Max. Pulling Force(Main Winch):70kn
- Track Width:2600mm
- Transport Package:Nude Package
- Specification:Hydraulic
- Trademark:xc
- Origin:Jiangsu China
- Production Capacity:3000
Description
item
Parameters
(Chasis)
Engine type
QSF3.8-115
/ Power/ revolution
86kW/2200rpm
()Deployment speed (margin)
2600mm
Track shoe width
600mm
Traction
104KN
(Power head)
The maximum out torque
60kN·m
Power head revolution
0~35rpm
The maximum pressure increased
55kN
The maximum pullout force
80kN
Pressurizing oil cylinder stroke
1500mm
(Winch)
(Main winch)
Lifting force of the first layer
70kN
The maximum lifting speed
59m/min
Steel wire diameter
∅18mm
Auxiliary winch
Lifting force of the first layer
15kN
The maximum lifting speed
50m/min
Steel wire diameter
∅12mm
(Mast)
Front inclination angle of mast
5°
Left and right inclinations of mast
±4°
(Hydraulic pump)
The maximum working pressure of system
32MPa
(Hole depth
and diameter)
The maximum drilling diameter
1.2m
The maximum drilling depth
28m/22m(4/3)
Weight at working state
20 t
15.7t
19t
Drill pipe
(The standard configuration)
∅299-4x7.6 m
(optional configuration )
∅299-3x7.6 m

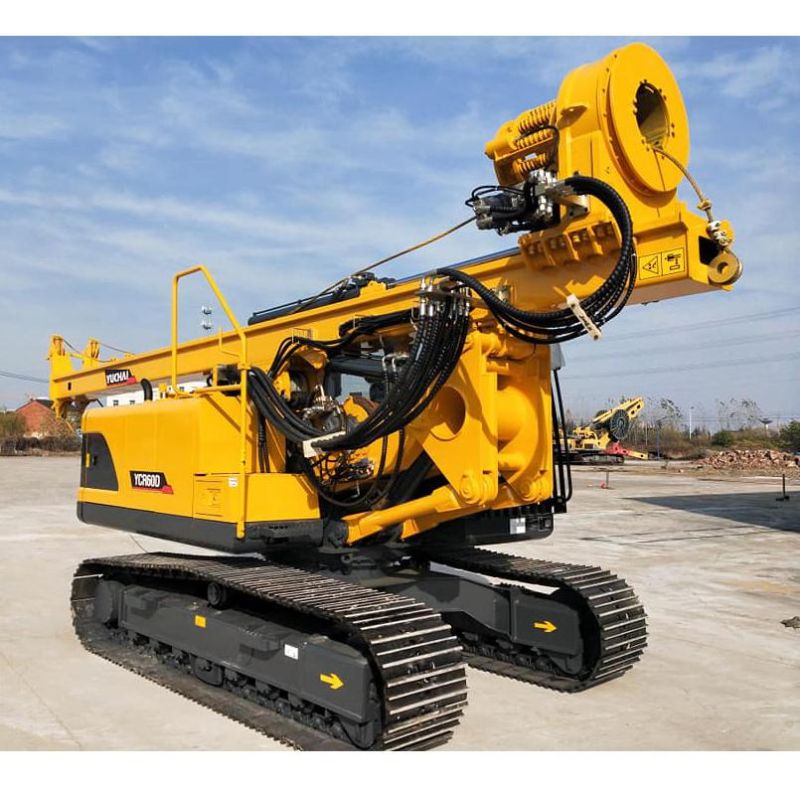

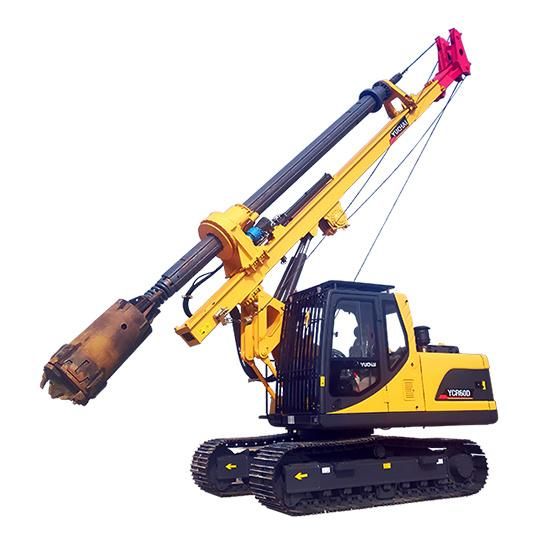

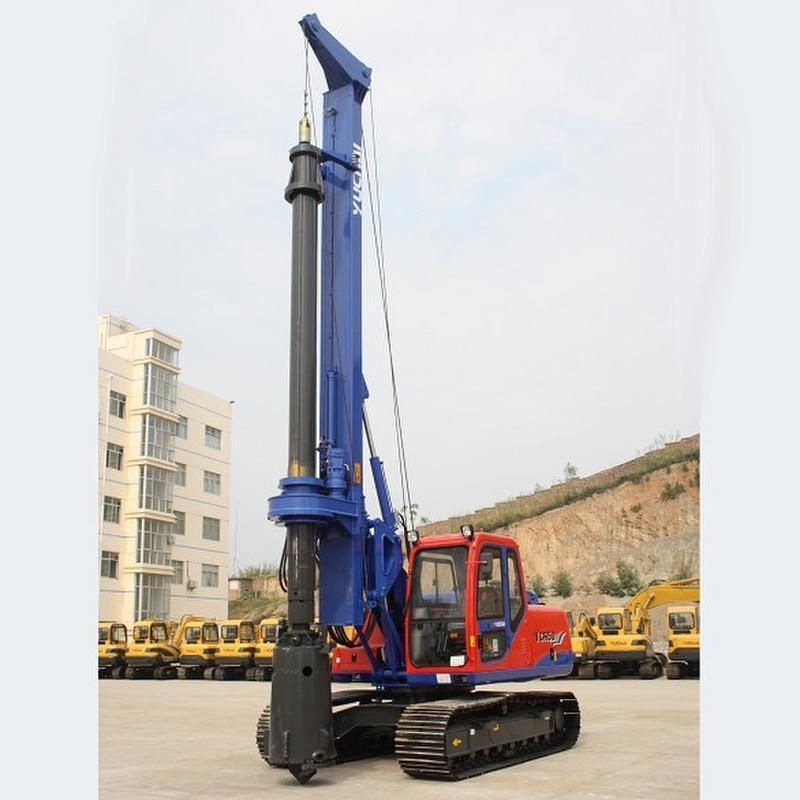

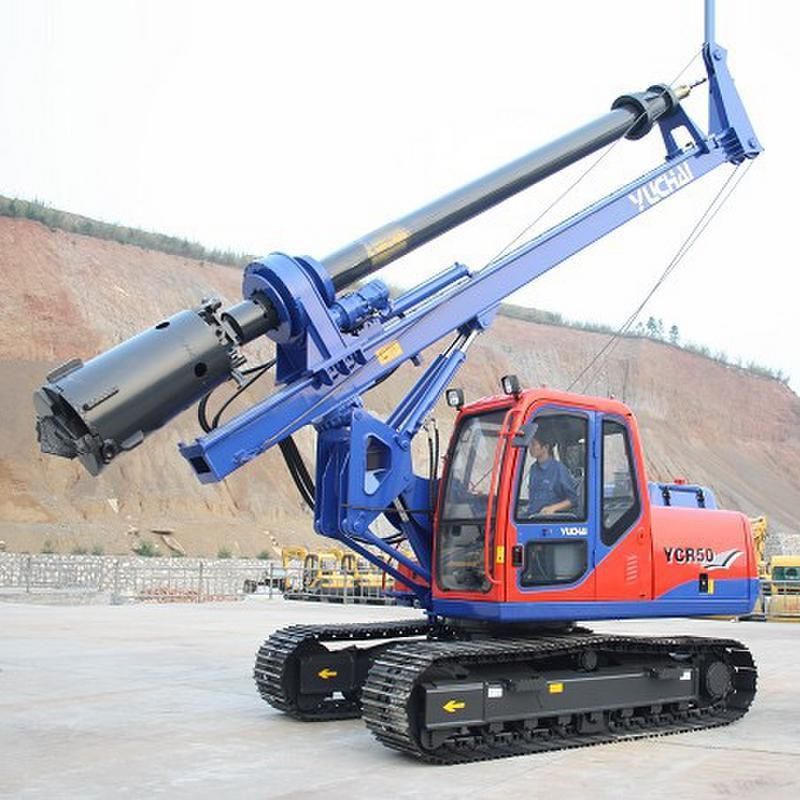

Detail pictures
