Ycr160d Yuchai Brand Drilling Rig Water Well on Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：200-250mm
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：YCR160D
- Drilling Way：Rotary
- Type：Crawler
- Rated Power：164,2200kw,Rpm
- Track Shoe Width：800mm
- Traction Force：300kn
- Rotary Speed：6-30rpm
- Max. Output Torque：160kn*M
- Max. Pulling Force(Main Winch)：160kn
- Max. Working Pressure：34MPa
- Transport Package：Nude Package
- Specification：Hydraulic
- Trademark：xc
- Origin：Jiangsu China
- Production Capacity：3000
Description
(item)
(Parameters)
(Chasis)
Engine type
QSB6.7
/ Power/ revolution
164kW/2200rpm
()Deployment speed (margin)
4000mm
Track shoe width
800mm
Traction
160KN
(Power head)
The maximum out torque
160kN·m
Power head revolution
6~30rpm
The maximum pressure increased
55kN
The maximum pullout force
80kN
Pressurizing oil cylinder stroke
1500mm
(Winch)
(Main winch)
Lifting force of the first layer
70kN
The maximum lifting speed
59m/min
Steel wire diameter
∅18mm
Auxiliary winch
Lifting force of the first layer
15kN
The maximum lifting speed
50m/min
Steel wire diameter
∅12mm
(Mast)
Front inclination angle of mast
5°
Left and right inclinations of mast
±4°
(Hydraulic pump)
The maximum working pressure of system
32MPa
(Hole depth
and diameter)
The maximum drilling diameter
1.2m
The maximum drilling depth
28m/22m(4/3)
Weight at working state
20 t
15.7t
19t
Drill pipe
(The standard configuration)
∅299-4x7.6 m
(optional configuration )
∅299-3x7.6 m

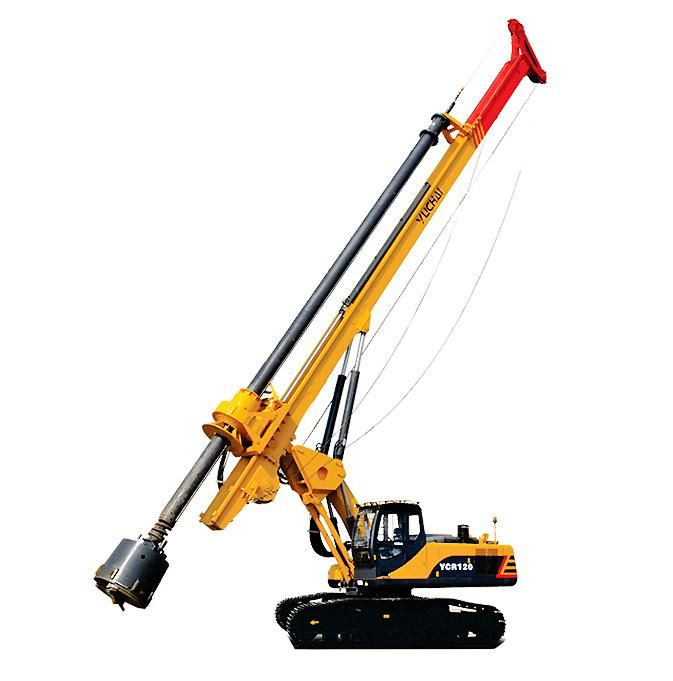

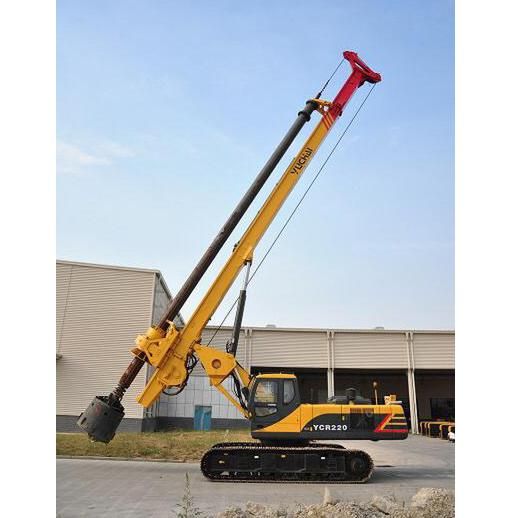

Products pics
