• Model NO.：YG-MDL80,150,200
• Drilling Way：Rotary
• Type：Self-Propelled Water Well Drilling Rig
• Product Name：Water Well Driling Rig
• Model：Yg-S220
• Hole Diameter：80-280mm
• Drill Depth：80-200m
• Voltage：220,380V
• Power：1.5-4kw
• Water Pump：2.2kw
• Drill Pipe：1.5m
• Rod Diameter：42-60mm
• Weight：120-200kg
• Color：Requirements
• Transport Package：Standard Wooden Case
• Specification：700*700*2500mm
• Trademark：YUGONG
• Origin：China (Mainland)
• HS Code：8430490000
• Production Capacity：1500sets,Month

Basic Info.

Model NO. YG-MDL80/150/200 Drilling Way Rotary Type Self-Propelled Water Well Drilling Rig Product Name Water Well Driling Rig Model Yg-S220 Hole Diameter 80-280mm Drill Depth 80-200m Voltage 220/380V Power 1.5-4kw Water Pump 2.2kw Drill Pipe 1.5m Rod Diameter 42-60mm Weight 120-200kg Color Requirements Transport Package Standard Wooden Case Specification 700*700*2500mm Trademark YUGONG Origin China (Mainland) HS Code 8430490000 Production Capacity 1500sets/Month

Product Description

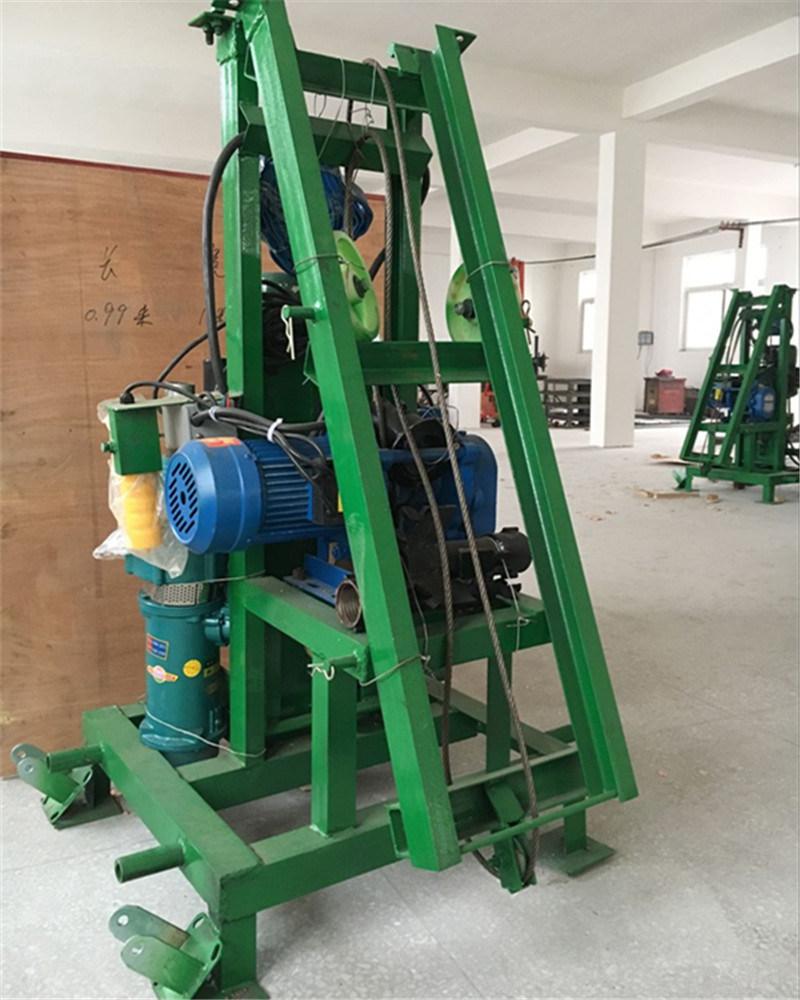

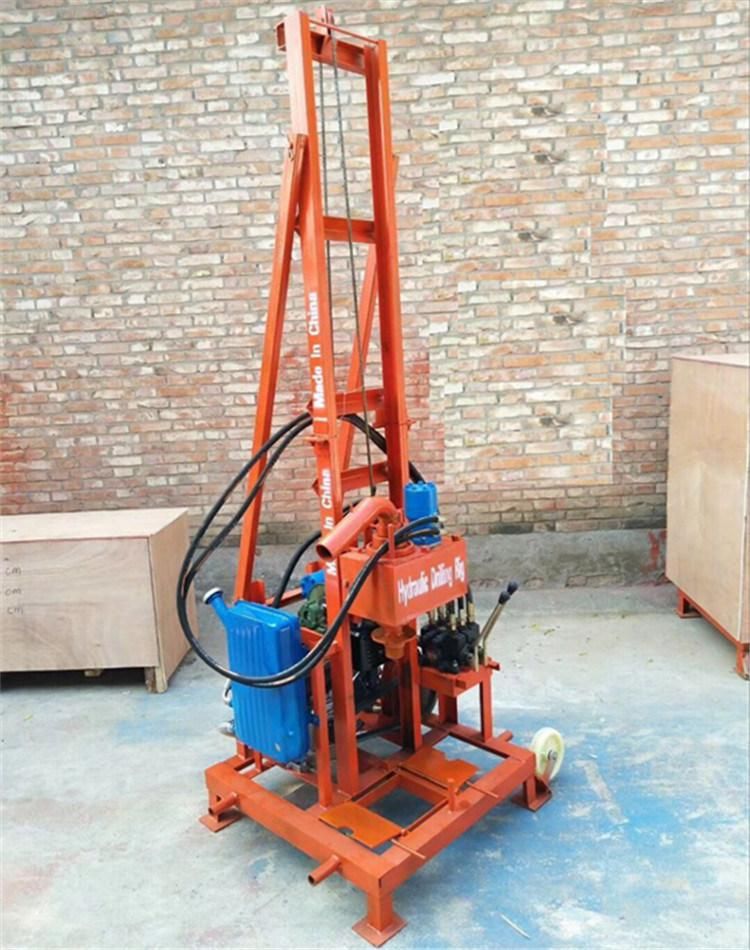

2019 Yugong Portable water well drilling rig



Product introduction
1.Small drilling machine is widely used in family drilling wells, drilling wells, take domestic water, farm irrigation wells, water and air conditioning installation, solar water heaters, site piling.
2.Mainly used to hit the earth, limestone and other soft rocks,Hard rock is not recommended.

Technical Parameters

Model	YG-S180	YG-S120	YG-S240	YG-S350	YG-S220	YG-S280
Hole depth(m)	80	80	100	100	100	120
Hole diameter(mm)	80-120mm	80-200mm	80-220mm	80-350mm	80-220mm	80-280mm
Drill pipe(m)	1.5	1.5	1.5	1.5	1.5	1.5
Voltage	220v	220v	220v	380v	Gasoline/Diesel	Gasoline/Diesel
Power(Kw)	1.5-2	1.26-1.5	4	3	15hp	15hp
Water Pump (Kw):	2.2	2.2	2.2	2.2	7.5hp	7.5hp
Dimension(mm)	700*700*2500	700*700*2900	700*700*2500	700*700*2000	700*700*2500	700*700*2500
Weight(kg)	120	120	150	250	200	200

Main Features
1.Drilling speed, soil one hour can drill 30-40 meters;
2.Rig models smaller, easy to move;
3.The price is more affordable.

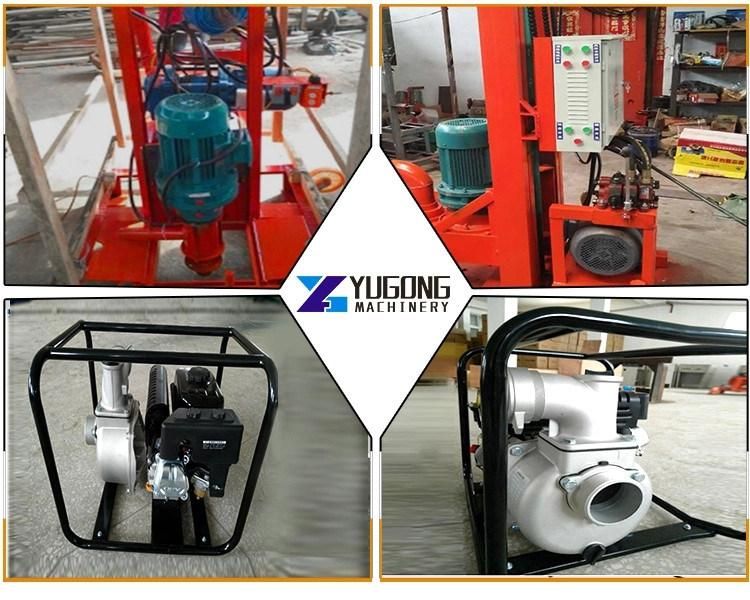

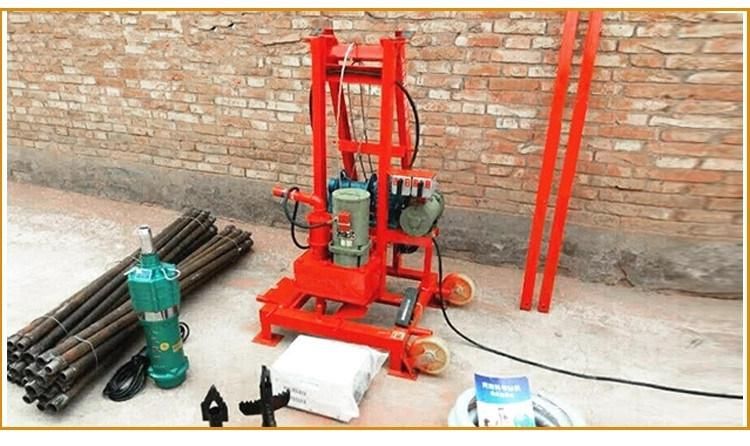

Product Show

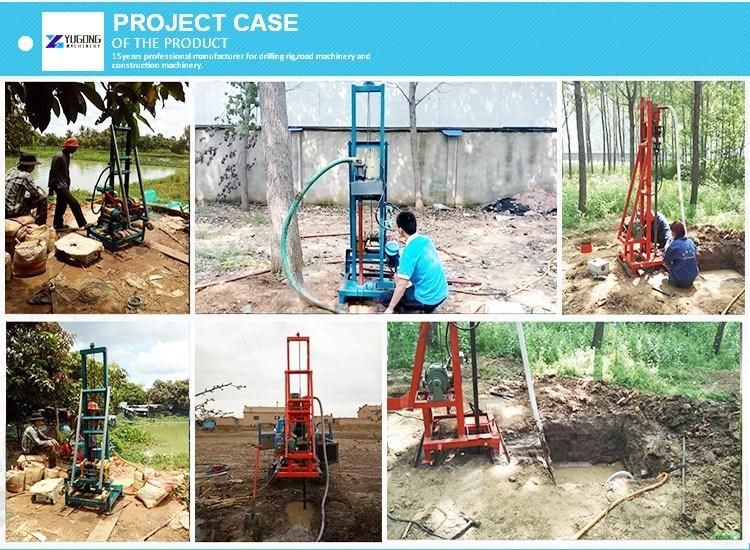

Product Case

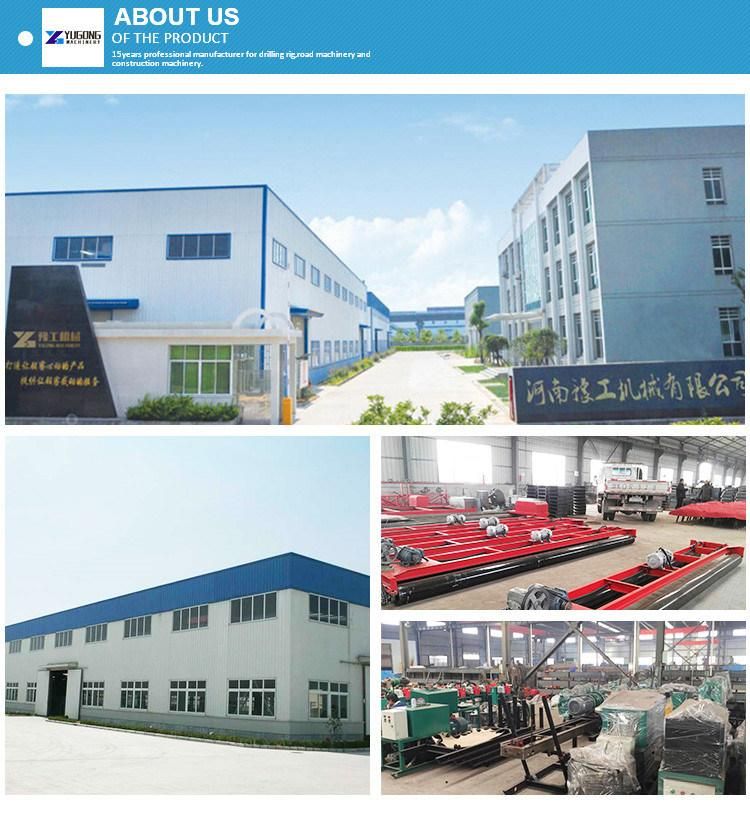

Company & Factory Information


Henan Yugong Machinery Co., Ltd located in Zhengzhou, Henan province, China. Its a large engineering machinery manufacturing enterprise which focus on research and development, production and sale kinds of drilling rigs. Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on. We insist on the strategy of technology research and development. Technical design, material purchasing, precised manufacturing and strict quality inspection are all processed according to the ISO9001 standard. Sincerely hope we can establish close, trustworthy and long term relationship with each customers. Any interests and needs about our Drilling rigs, please contact us.
