Earth Drilling Equipment Hydraulic Rotatory Drilling Rig Core Bore Drilling Machine Drilling Equipment Manufacturers

TYSIM Piling Equipment Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：30-50m
  • Drilling Way：Rotary
  • Type：Crawler

Base Info

  • Model NO.：KR90A
  • Torque：90 Kn.M
  • Max. Diameter：1200 mm
  • Max. Drilling Depth：36 M
  • Max. Crowd Pressure：90 Kn
  • Max. Crowd Pull：120 Kn
  • Main Winch Line Pull：80 Kn
  • Operating Height：12705 mm
  • Operating Width：2890mm

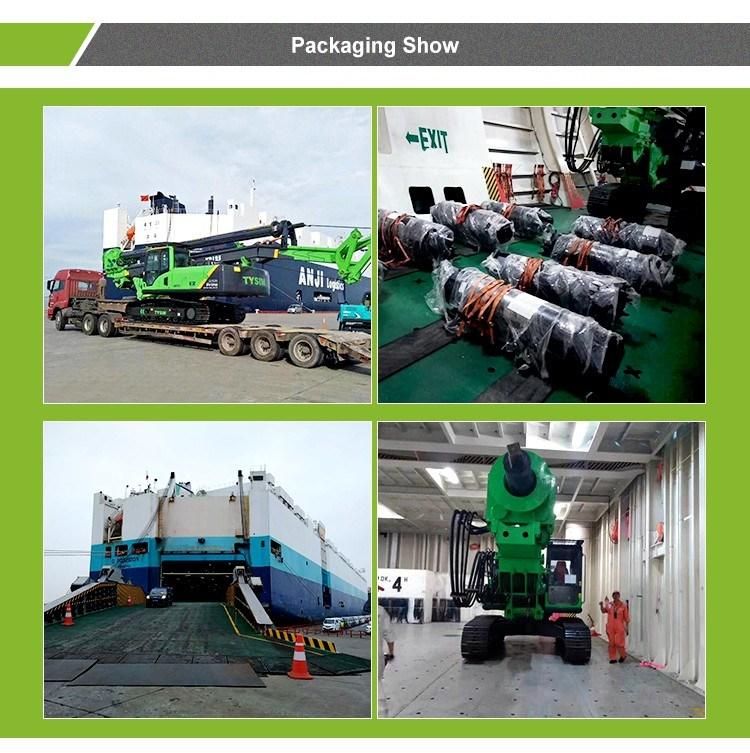

  • Transport Package：Bulk Pack
  • Specification：24 t
  • Trademark：tysim
  • Origin：Jiangsu, China
  • HS Code：8431499900
  • Production Capacity：30pieces,Month

Description

Basic Info.

Model NO. KR90A Torque 90 Kn.M Max. Diameter 1200 mm Max. Drilling Depth 36 M Max. Crowd Pressure 90 Kn Max. Crowd Pull 120 Kn Main Winch Line Pull 80 Kn Operating Height 12705 mm Operating Width 2890mm Transport Package Bulk Pack Specification 24 t Trademark tysim Origin Jiangsu, China HS Code 8431499900 Production Capacity 30pieces/Month

Product Description

Earth Drilling Equipment Hydraulic Rotatory Drilling Rig Core Bore Drilling Machine Drilling Equipment Manufacturers
Technical Specification
TypeKR90A
Torque90 KN.m
Max. diameter1200 mm
Max. drilling depth36 m
Speed of rotation6~30 rpm
Max. crowd pressure90 kN
Max. crowd pull120 kN
Main winch line pull80kN
Main winch line speed75 m/min
Auxiliary winch line pull50kN
Auxiliary winch line speed40 m/min
Stroke(crowd system)3500 mm
Mast inclination(lateral)±3°
Mast inclination(forward)4°
Max. operating pressure34.3 MPa
Pilot pressure3.9 MPa
Travel speed3 km/h
Traction force122 kN
Operating height12705 mm
Operating width2890mm
Transport height3465 mm
Transport width2770 mm
Transport length11385mm
Overall weight24 t
Earth Drilling Equipment Hydraulic Rotatory Drilling Rig Core Bore Drilling Machine Drilling Equipment Manufacturers

Earth Drilling Equipment Hydraulic Rotatory Drilling Rig Core Bore Drilling Machine Drilling Equipment Manufacturers



Earth Drilling Equipment Hydraulic Rotatory Drilling Rig Core Bore Drilling Machine Drilling Equipment Manufacturers

Earth Drilling Equipment Hydraulic Rotatory Drilling Rig Core Bore Drilling Machine Drilling Equipment ManufacturersEarth Drilling Equipment Hydraulic Rotatory Drilling Rig Core Bore Drilling Machine Drilling Equipment Manufacturers
Earth Drilling Equipment Hydraulic Rotatory Drilling Rig Core Bore Drilling Machine Drilling Equipment Manufacturers
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
