• Model NO.：DL-360
• Condition：New
• Drill Hole Diameter：>300mm
• Drill Hole Depth：10-30m
• Bit Type：Cone Bit
• Drilling Way：Rotary
• Type：Four-Wheel Trailer
• Usage：Pile Driver, Drill Hole Flling Pile Construction
• Drilling Diameter：500-1800mm
• Power Source：Diesel
• Maximum Depth：20m
• Travel Drive：Mechanical
• Drill Rod Type：Square Drill Pipe
• Drive System：All Wheel Drive Tyoe
• Torque：33000
• Whole Weight：14tons
• Engine：Cummnis ,Weichai,Yuchai ,Isuzu
• Whether Can Be Customized：Yes
• Drilling Tools：Auger,Bucket ,Open Bucket Drill Bit
• Whether Have Winch：Yes
• Whether Can Lift Casing：Have Hook
• Chassis Length：3700mm
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：9800mm*2200mm*2950mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month
• Package size per unit product：10200.00cm * 2600.00cm * 3400.00cm
• Gross weight per unit product：16000.000kg

Basic Info.

Model NO. DL-360 Condition New Drill Hole Diameter >300mm Drill Hole Depth 10-30m Bit Type Cone Bit Drilling Way Rotary Type Four-Wheel Trailer Usage Pile Driver, Drill Hole Flling Pile Construction Drilling Diameter 500-1800mm Power Source Diesel Maximum Depth 20m Travel Drive Mechanical Drill Rod Type Square Drill Pipe Drive System All Wheel Drive Tyoe Torque 33000 Whole Weight 14tons Engine Cummnis /Weichai/Yuchai /Isuzu Whether Can Be Customized Yes Drilling Tools Auger/Bucket /Open Bucket Drill Bit Whether Have Winch Yes Whether Can Lift Casing Have Hook Chassis Length 3700mm Transport Package Rotary Drilling Rig Package According to The Custo Specification 9800mm*2200mm*2950mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Packaging & Delivery

Package size per unit product 10200.00cm * 2600.00cm * 3400.00cm Gross weight per unit product 16000.000kg

Product Description

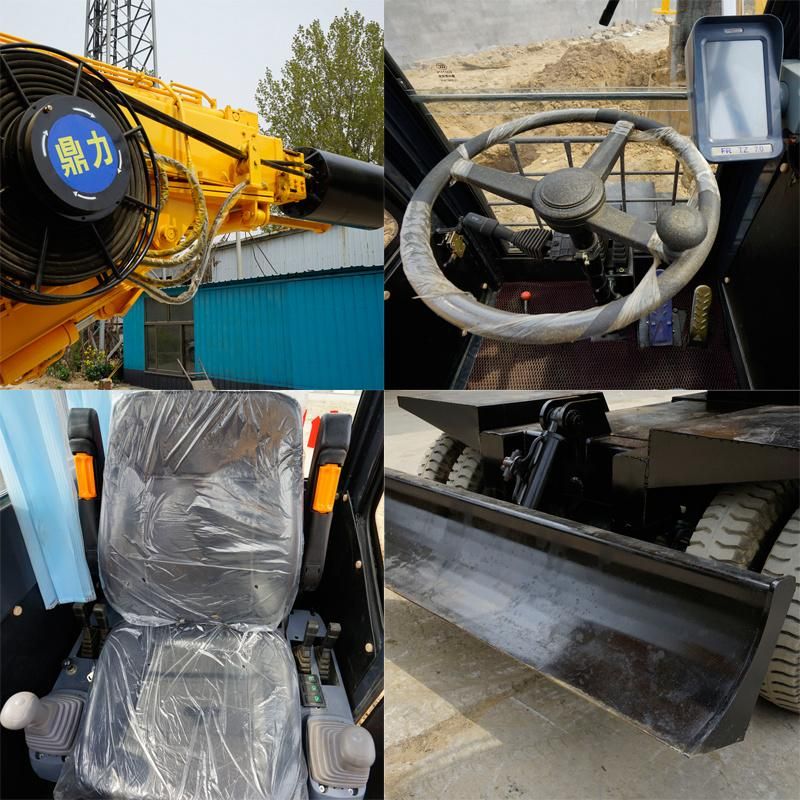

Product Details

It is widely praised by customers for its compact size, powerful functions and high cost performance. The drilling rig is equipped with a four-drive power transmission system and a hydraulic expansion center of gravity. The upper body can be rotated 360 degrees stably, which increases the working range and area. The maximum drill rod depth of the drilling rig can reach 20 meters, and the drilling radius is 500-1500MM.

Parameter


model	DL-360
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1500
drilling depth (m)	5-20m
Kelly bar diameter (mm)	315
Diamension (mm)	9800X2350X3300mm
Total weight (t)	13t
Power head max output torque (KN.m)	24000N.m
Rotary speed (r/min)	10-30RPM
Pressurized oil cylinder max pressure	80KN
Pressurized oil cylinder max lifting force	80KN
Pressurized oil cylinder max stroke	13-20m
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	20Mpa
pilot pressure	12Mpa
Travelling speed (km/h)	40 km/h
Diesel engine power (KW)	85KW,weichai,water cooling ,turbo charger
Is it customizable?	Yes

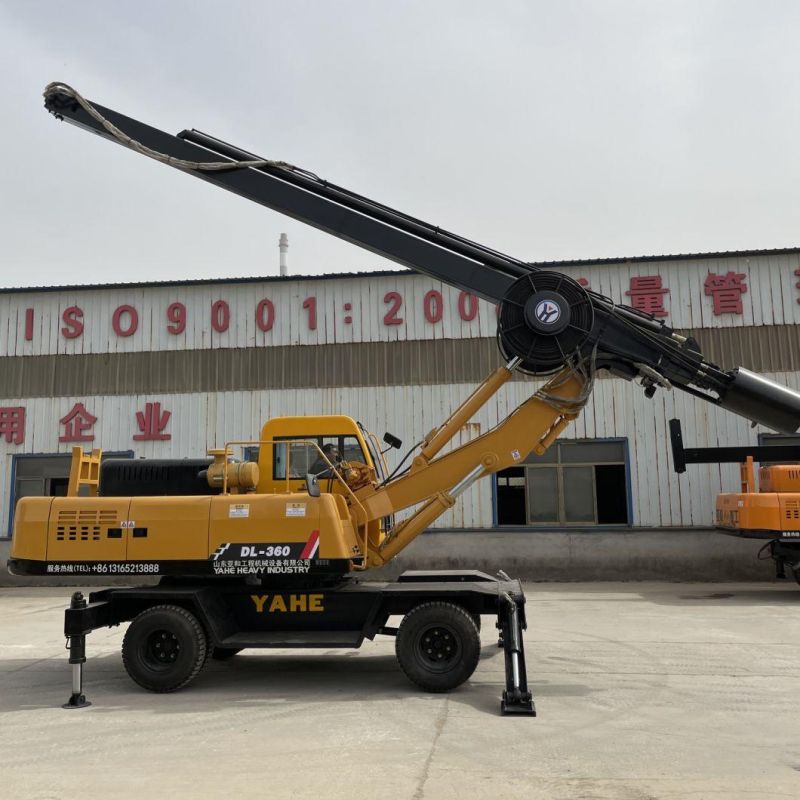

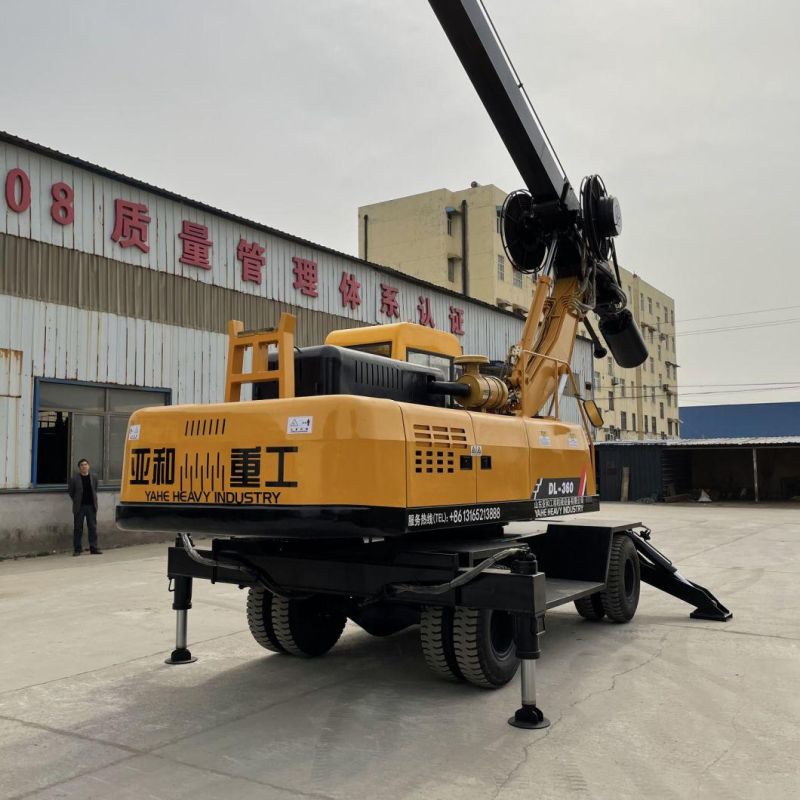

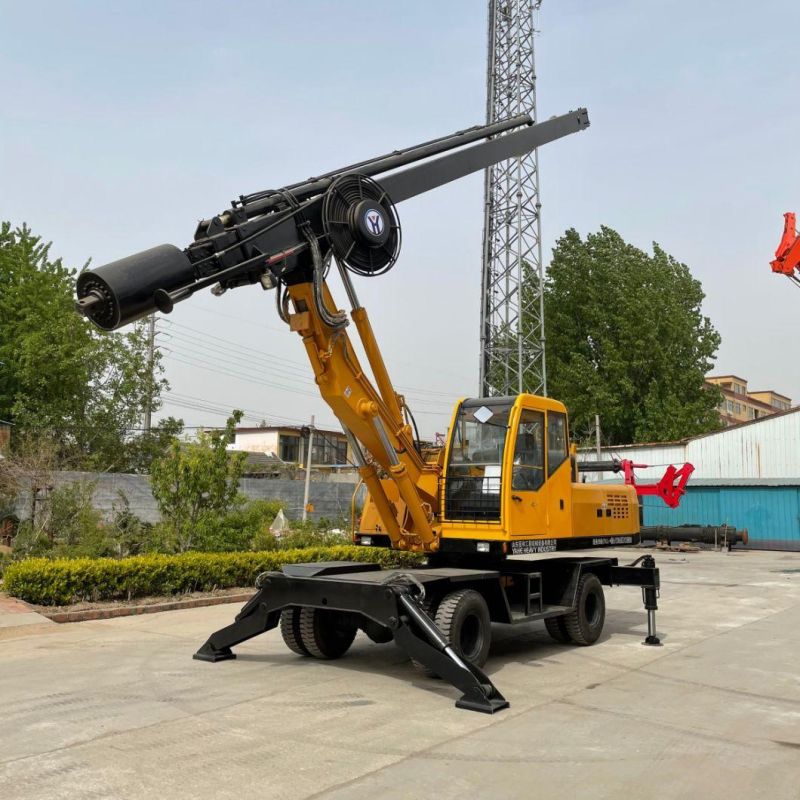

Machine Photos





Certification


Company profile

   Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.




Customer photo





Exhibition

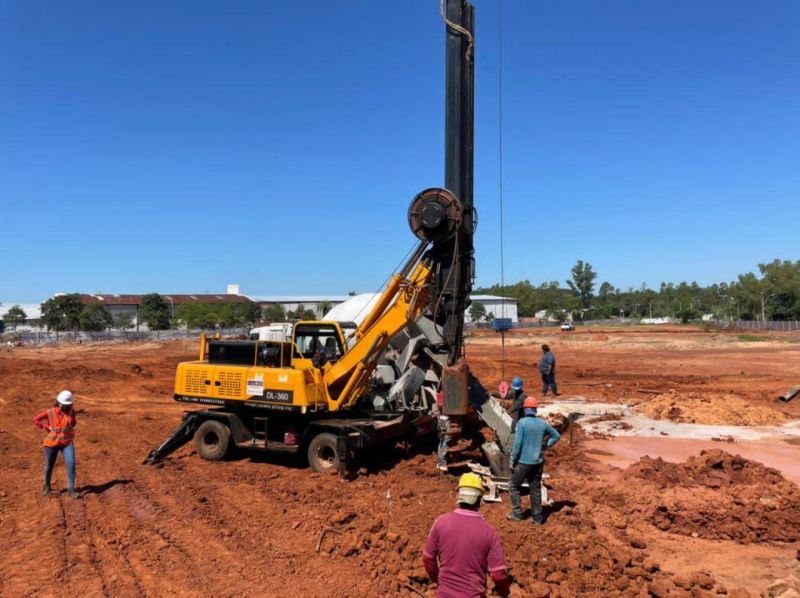

 Working photo




 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
