• Model NO.：TPB40
• Transport Package：Wood Box
• Specification：CE, SGS
• Trademark：Prodrill
• Origin：China
• HS Code：84671900
• Production Capacity：2000 Sets , Month

Basic Info.

Model NO. TPB40 Transport Package Wood Box Specification CE, SGS Trademark Prodrill Origin China HS Code 84671900 Production Capacity 2000 Sets / Month

Product Description

Description

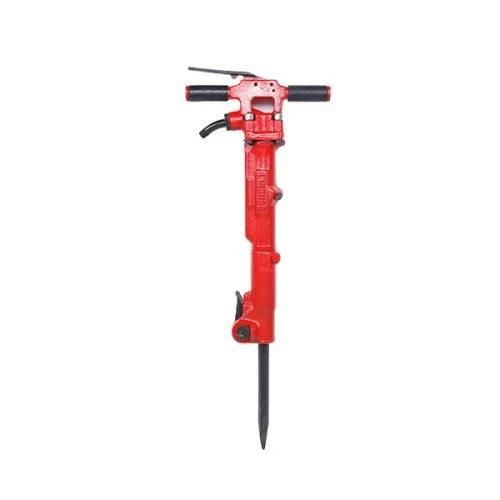

TPB-40 Pneumatic Hammer
Model TPB-40 breaker is the power of the broken tool. It uses the East Japan Air (TOKU) group with the mature technology of compressed air. It also can high-efficiency complete reinforced concrete. Rock , Asphalt etc, with the broken, more horsepower. The more high-efficiency, the longer life characteristics, especially suitable for big characteristics. The special thick, the broken objects. Hard work, is mine. The bridge, the road. Civil infrastructure project construction ideal tool!
Specification

Model	TPB40	TPB60	TPB90
Piston diameter	44mm	57.15mm	66.67mm
Piston stroke	100mm	146mm	152mm
Impact frequency	900 minute/Time	1250 minute/Time	1400 minute/Time
Net weight	18kg/39.6lbs	30kg/60lbs	42kg/92.4lbs
Total length	660mm	645mm	723mm
Air consumption	1.6m3/minute	2.0m3/minute	2.2m3/minute
Hose size	19mm(3/4inch)	19mm(3/4inch)	19mm(3/4inch)
Shank specifications	1×4-1/4 25X108	1×4-1/4 25X108	1×4-1/4 25X108
Inlet size	3/4pt	3/4pt	3/4pt
Air pressure	0.63Mpa	0.63Mpa	0.63Mpa

Our main products are as below:
Construction & Mining & Rock Drill Tools:
A. DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System.
B. Top Hammer (drill hole dia.: 33 ~ 152mm).
1) Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60).
2) High Rang Soundless Cracking Agent (dia. 40 ~ 50mm).

Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm).
1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder
3) Pneumatic Rock Drill: Hand-held (Y24, TY24C), Air leg (YT28) and Gasoline (YN27J).
4) Expansive Mortar (dia. 30 ~ 35mm); Hydraulic Rock Splitter PD40-250, Aluminum Cylinder.
5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc.
6) Hydraulic Breaker hammer, Paving breaker TPB40, 60, 90 for rock or concrete demolition.
7) PD28, PD45, PD90, PD115/HC20 Excavator mounted rock drilling.
Should you are interested in our products,pls contact us freely .
We do wish we can establish the good and long-term business relations and make us stronger and mutual benefit together.
