• Model NO.：G6, G10, G20
• Length of Tail Pick：70mm
• Total Weight：10.6kg
• Transport Package：Wood Package
• Specification：CE, SGS, ISO: 9001
• Trademark：Prodrill
• Origin：China
• HS Code：82071990
• Production Capacity：5000 Sets Per Month

Basic Info.

Model NO. G6, G10, G20 Length of Tail Pick 70mm Total Weight 10.6kg Transport Package Wood Package Specification CE, SGS, ISO: 9001 Trademark Prodrill Origin China HS Code 82071990 Production Capacity 5000 Sets Per Month

Product Description

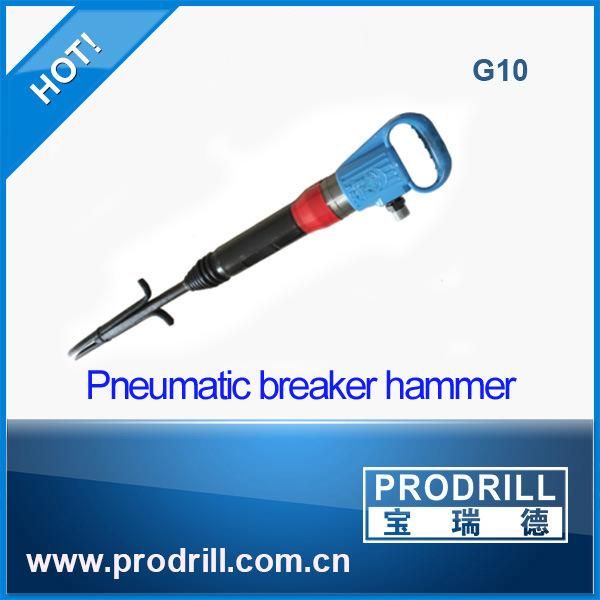

G10 Pneumatic Hammer

Main keywords:Pneumatic splitter G10, G10 pneumatic splitter air pick , Air pick , Pneumatic Air Pick Hammer

The pneumatic pick is suitable for drilling in mine, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other athletics occasion which need impact.

Product Introduction:
Pneumatic pick is lighter, more flexible and convenient operation. It's suitable for operating all around of work, especially in narrow space, upper or climbing direction. It can stop working automatically when the solid object is broken.

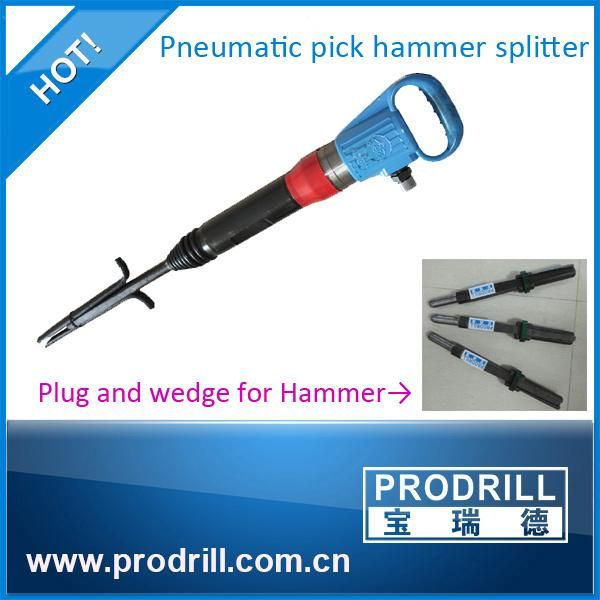

Pneumatic pick hammer splitter Feature :
a: This kind of machine is designed for block secondary splitting or squaring specially,
b: It can be instead of the dynamite blasting or traditional manual splitting device completely.
c: It can be widely used for reinforced concrete breaking or removing, such as the construction
d: Building part demolition, bridge dismantling, demolishing underwater etc.
e: One complete machine including a pneumatic hammer and one set of forge plug and feathers .

Model	G10
Impacting Frequency	16Hz
Impact Energy	43J/min
Air Consumption	26L/s Max
Cylinder Dia.	38mm
Inside Dia. Of Sunction Tube	16mm
Dia. Of Tail Pick	24mm
Length of tail pick	70mm
Total Weight	10.6kg
Noise(Power level)	118dB(A) Max


Technical Parameters: G7 G9 G10 G15 G20 G35 G90

Model	G7	G9	G10	G15	G20	G35	G90
Weight	7.2kg	9.5Kg	10.6 Kg	12Kg	20kg	20Kg	42Kg
Cylinder Dia.	35mm	37mm	38 mm	42mm	40mm	45 mm	67 mm
Pituitary trip	120mm	130mm	155 mm	160mm	170mm	160 mm	148 mm
Working pressure	0.63 Mpa	0.63Mpa	0.63 Mpa	0.63MPa	0.63 Mpa	0.63MPa	0.63MPa
SCFM	20L/S	25L/s	20 L/S	26.5L/s	27L/S	22.5L/s	41 L/S
Inner Dia.	19mm	19mm	19mm	16mm	19mm	19mm	19mm
