Separated DTH Surface Air Compressor Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：100-150mm
Base Info
- Model NO.：30M
- Drill Hole Depth：100-150m
- Bit Type：Hammer Bit
- Drilling Way：Impactor
- Model：Hw430
- Drill Pipe Sizes：76 X 3, 000 mm
- Total Operating Weight：4800kg
- Power：73.5 Kw
- Engine Brand：Yuchai
- Power Model：Yuchaiyc4dk-100
- Hammer：4",5"
- Working Pressure：0.7-2.5MPa
- Total Weight：7, 340kg
- Transport Package：Load in Container
- Specification：7340kgs
- Trademark：Hengwang
- Origin：China Shandong
- Production Capacity：1000 Sets Per Month
Description
Transportation Dimensions
7,500 X 2,330 X 2,770mm
Features:
1, The high-strength aluminum alloy propelling beam with a 3-meter opening has higher strength, better straightness, and improved hole quality.
2. The standard dual-station middle bracket and powerful drill arm system can meet the comprehensive construction requirements of vertical holes, pipe shed holes, front low horizontal holes, and side low horizontal holes.

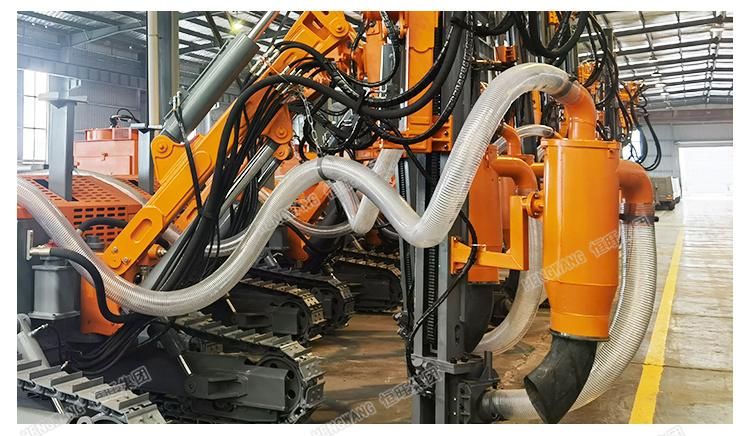

3. The dust collection motor is driven by a plunger pump, and is equipped with a more durable borax dust collection tube, so the dust removal system is efficient and stable.
4. The slewing/propelling motors are imported brands, with high torque and high quality.
Company Introduction
Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
Our company produces the piling machinery a total of 10 major series more than 20 varieties, mainly include photovoltaic crawler pile driver, caterpillar screw drivers, HW series, KLB hydraulic pile driver walking long spiral drill, caterpillar diesel pile hammer machine, vibration sinking pipe pile, DZB multi- function rig, water well driling rig machine,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
