Separated Blast Hole Hard Rock DTH Drill Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：100-150mm
Base Info
- Model NO.：30M
- Drill Hole Depth：<100m
- Bit Type：Hammer Bit
- Drilling Way：Impactor
- Drill Pipe Sizes：76 X 3,000 mm
- Power Model：Yuchaiyc4dk-100
- Total Operating Weight：4800kg
- Power：73.5 Kw
- Hammer：4",5"
- Feed Force：12-25 Kn
- Pull up Force：25 Kn
- Feed Type：Chain & Cylinder
- Feed Speed：0.3s,0.9s
- Tramming Speed：2km,H,3km,H
- Working Pressure：0.7-2.5MPa
- Total Weight：7,340kg
- Transportation Dimensions：7,500 X 2,330 X 2,770mm
- Engine Brand：Yuchai
- Transport Package：20gp
- Specification：5800X1850X2800mm
- Trademark：Hengwang
- Origin：Shandong
- Production Capacity：1000PCS ,Month
Description
Transportation Dimensions
7,500 X 2,330 X 2,770mm
Features:
1, The high-strength aluminum alloy propelling beam with a 3-meter opening has higher strength, better straightness, and improved hole quality.
2. The standard dual-station middle bracket and powerful drill arm system can meet the comprehensive construction requirements of vertical holes, pipe shed holes, front low horizontal holes, and side low horizontal holes.

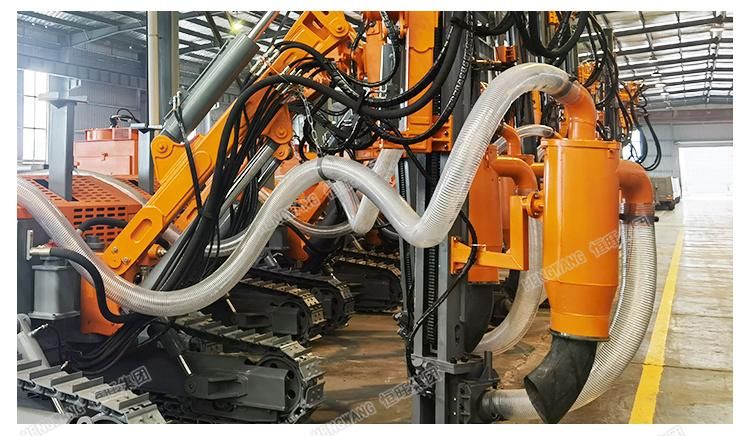

3. The dust collection motor is driven by a plunger pump, and is equipped with a more durable borax dust collection tube, so the dust removal system is efficient and stable.
4. The slewing/propelling motors are imported brands, with high torque and high quality.
