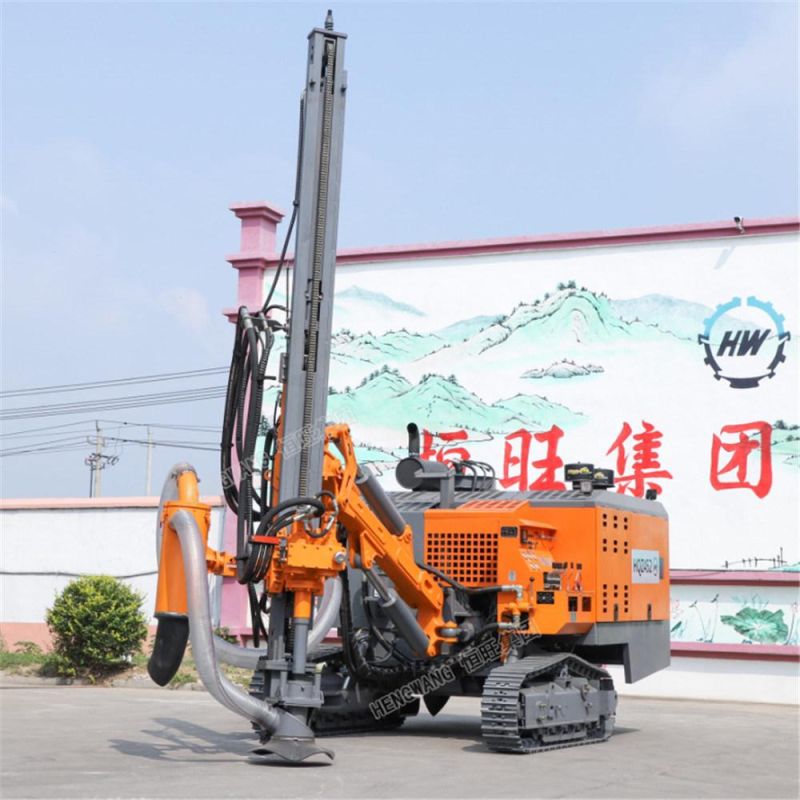

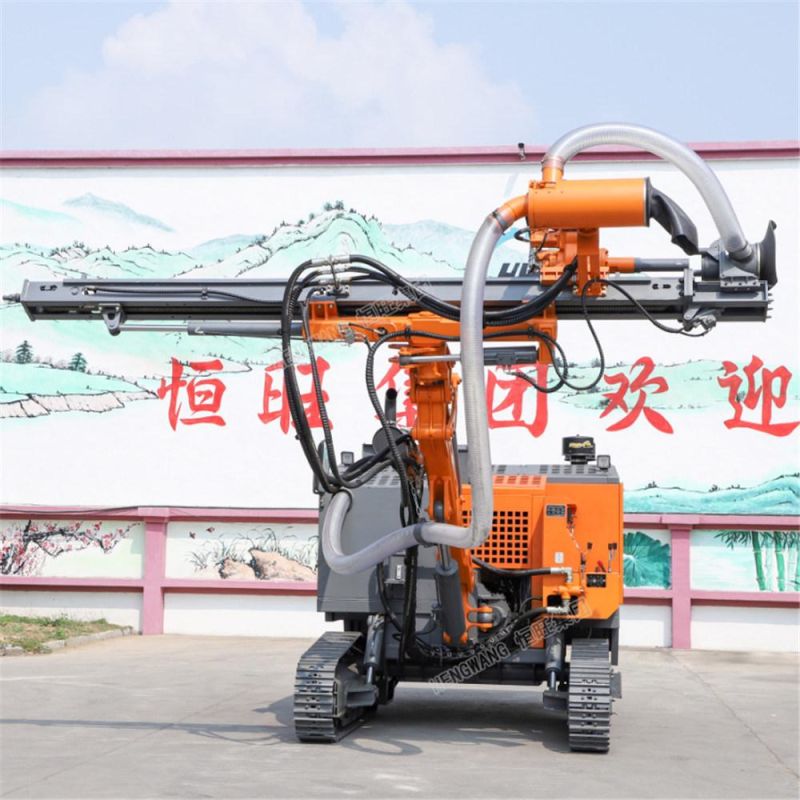

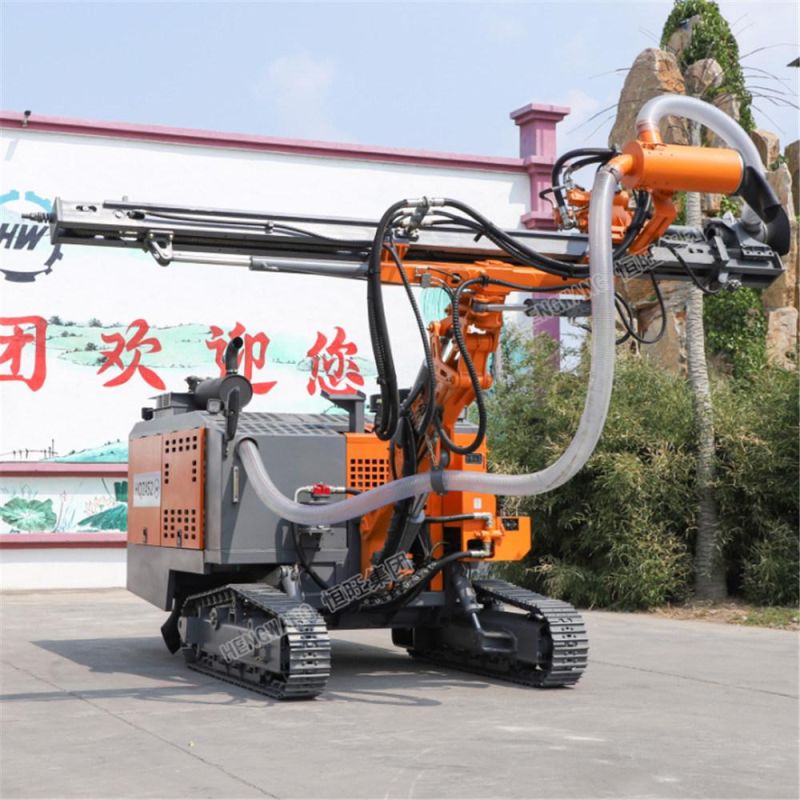

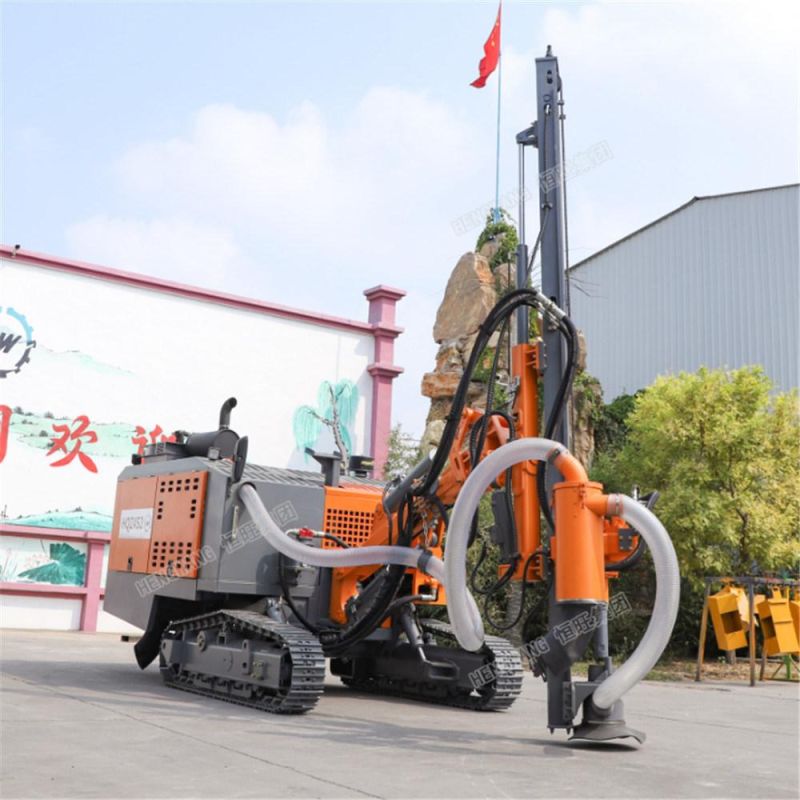

Hw423 DTH Diesel Integrated Automatic Hydraulic Crawler Mounted Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：ISO
- Certification：CE, RoHS
- Condition：New
- Motor：Diesel
- Drill Hole Diameter：<100mm
Base Info
- Model NO.：HW423
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
- Drilling Way：Compound
- Name：DTH Drilling Rig
- Engine：162kw
- Hole Range：90-115 mm
- Drill Pipe Storage：7+1
- Drill Pipe Diameter Dia：68 X 3,000 mm
- DTH Hammer：3.5"
- Rotation Torque ( Max.)：2,540 N.M
- Working Pressure ( Max.)：15 Bar
- Pull up Force ( Max.)：20 Kn
- Tramming Speed ( Max.)：3 Km,H
- Total Weight：13,000 Kg
- Transportation Dimensions：9,000X2,360X3,000 mm
- Transport Package：20gp
- Specification：5500*1720*2650mm
- Trademark：HW
- Origin：Shandong
- HS Code：8428909090
- Production Capacity：1000PCS ,Month
Description
Model
HW423
Engine
YC6J220-T300 162kW/2,200 rpm
Yuchai YC6J220-T300 162 kW @ 2,200 rpm
Hole Range
90-115 mm
Drill Pipe Storage
7+1
Drill Pipe Diameter
Dia 68 X 3,000 mm
DTH Hammer
3.5"
Rotation Torque ( Max.)
2,540 N.m
F.A.D
12 m3/min
Working Pressure ( Max.)
15 bar
Pull Up Force ( Max.)
20 kN
Tramming Speed ( Max.)
3 km/h (High Speed)
2 km/h (Low Speed)
Gradient
30°
Track Frame Oscilation
±10°
Total Weight
13,000 kg
Transportation Dimensions
9,000X2,360X3,000 mm
