200m Depth Crawler Deep Well Pneumatic Water Well Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：HQZ220L
  • Drill Hole Depth：150-200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Name：Crawler Drilling Rig
  • Motor Power：60kw
  • Max. Drilling Depth：220m
  • Drilling Diameter：245mm
  • Color：Customized
  • Transport Package：Wooden Case
  • Specification：CE
  • Trademark：HW
  • Origin：Shangdong China
  • HS Code：8430419000
  • Production Capacity：50000set,Year

Description

Application200m Depth Crawler Deep Well Pneumatic Water Well Drilling Rig200m Depth Crawler Deep Well Pneumatic Water Well Drilling Rig
Specification

Model

HQZ220L

Overall weight (T )

4.2

Dimension (mm )

3800*1700*2350

Drilling diameter (mm )

130-294

Drilling depth (m )

220

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

30

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.7-2.5

Air consumption (m³/min)

15-27

Main machine power (kw)

Yunnei 60Kw

Rotary Speed (rpm)

48 - 70

Rotary torque (Nm )

4200-5600

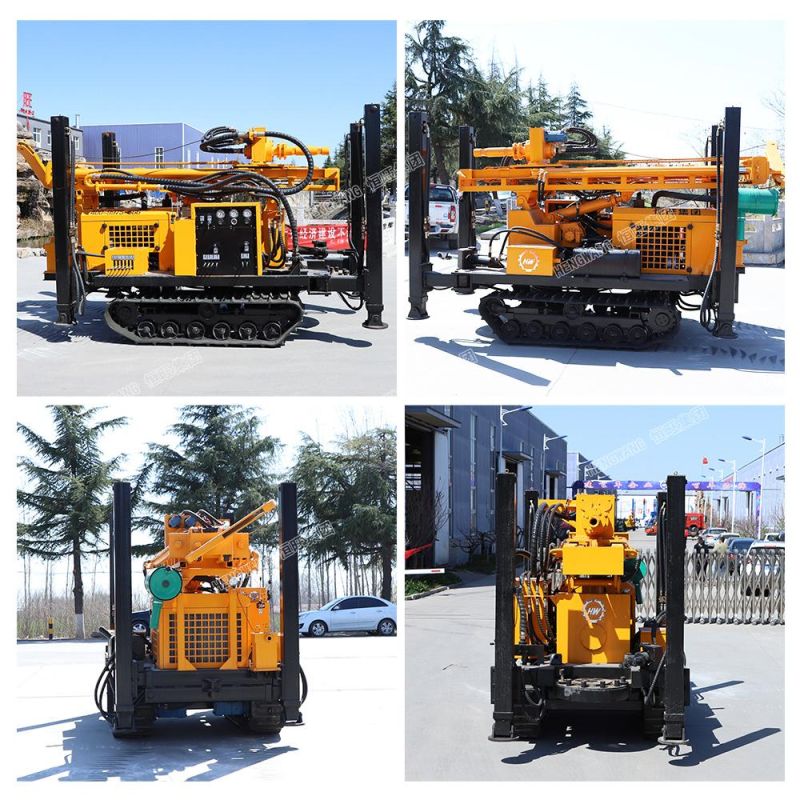

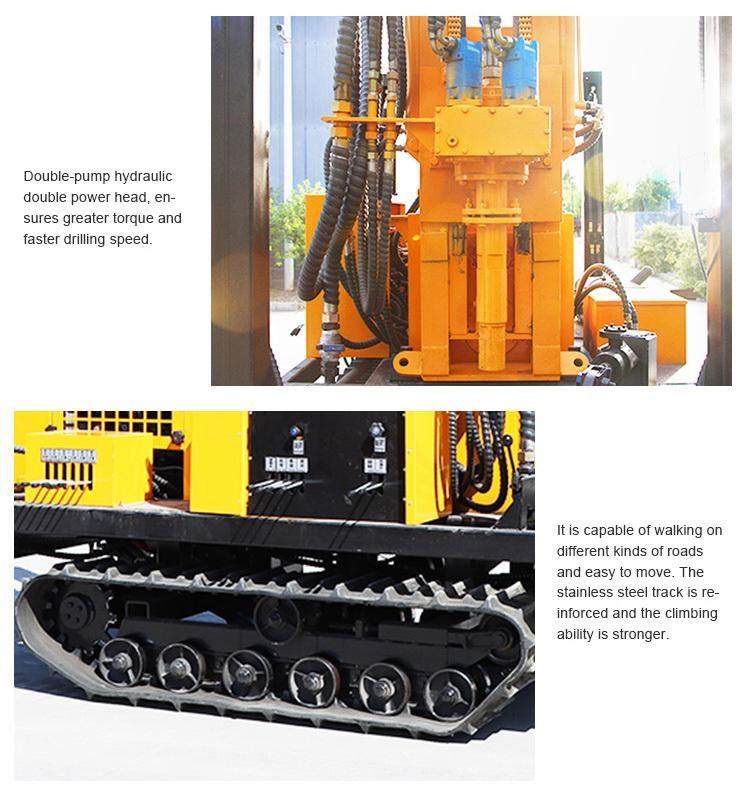

Products Details200m Depth Crawler Deep Well Pneumatic Water Well Drilling Rig200m Depth Crawler Deep Well Pneumatic Water Well Drilling Rig

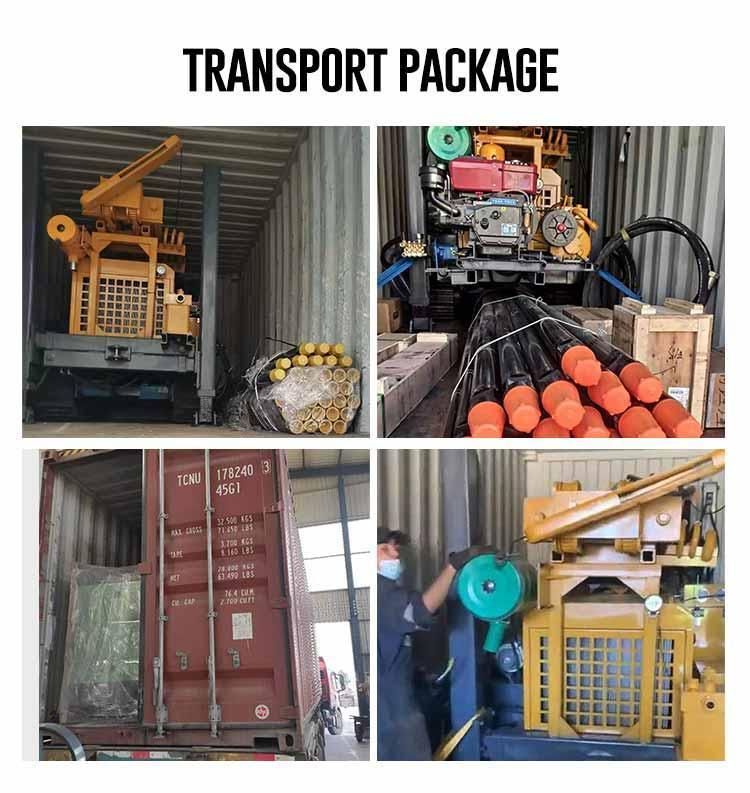

Packing and delivery200m Depth Crawler Deep Well Pneumatic Water Well Drilling Rig



Our factory

200m Depth Crawler Deep Well Pneumatic Water Well Drilling Rig
