Vertical Shaft Borehole Water Boring Machine Water Well Drilling Rig Pneumatic Drilling Rig with Air Compressor Drilling Rigs
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：1year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel ,Electric
- Drill Hole Diameter：250-300mm
Base Info
- Model NO.：320M
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Type：Crawler
- Drilling Rock：20m~40m,Hour
- Drilling Depth：320m
- Drilling Diameter：100-350mm
- Engine Power：85kw
- Transport Package：20f Container
- Specification：4100*1900*2600
- Trademark：HW
- Origin：China
- Production Capacity：600 Set,Sets Per Month
Description
Model
HQZ-320L
Total Weight(T)
7.5/9
Dimensions(mm)
4200*1900*2600
Drilling Diameter(mm)
140-350
Drilling Depth(m)
320
One-time Advance Length of the Drill(mm)
3000/6000
Walking Speed(Km/h)
2.5
Climbing Ability(max)
30
Min. Ground Clearance(mm)
230
Working Air pressure(Mpa)
1.7-3.3
Air Consumption(m³/min)
23
Main Power(kw)
85/Yuchai
Rotation(rpm)
55-115
Rotary Torque(Nm)
8500-10000

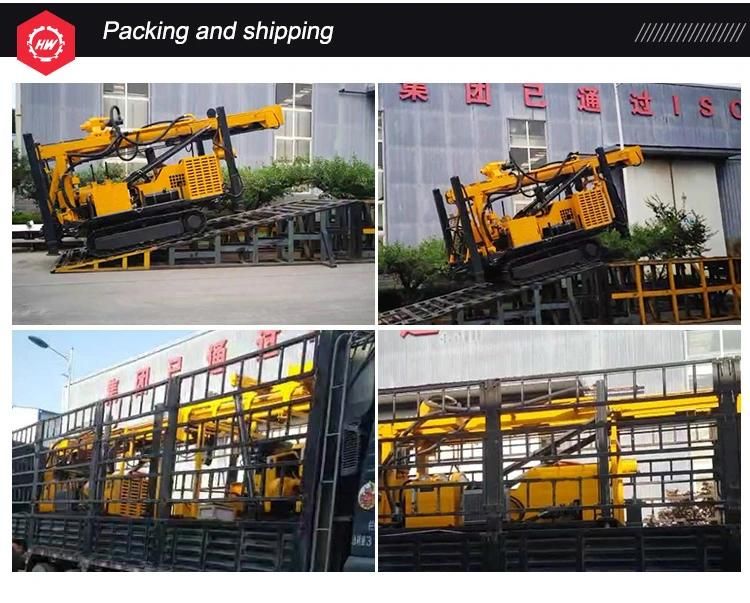

Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
