300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig

Taian Longye Import and Export Trade Co., Ltd.
  • After-sales Service：Available
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2015
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：115-350 mm

Base Info

  • Model NO.：SLY550
  • Drill Hole Depth：350 Meters
  • Bit Type：DTH Drill Bit, Roller Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Transport Package：Standard Shipping Packing
  • Specification：6500MM*2100MM*2600MM
  • Trademark：LONGYE
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：300 Sets, Year

Description

Basic Info.

Model NO. SLY550 Drill Hole Depth 350 Meters Bit Type DTH Drill Bit/ Roller Bit Drilling Way Rotary Type Crawler Transport Package Standard Shipping Packing Specification 6500MM*2100MM*2600MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Our Advantages

We are factory with 22 years, our machine exported more than 60 countries.
We got ISO, CE certificate.

Product Introduction
SLY550 Water Well Drilling RigSLY550 track-type water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.

Technical parameters
Bore diameter(mm)115-350
Bore depth(m)350
Walk speed(km/h) 0-2.5
For rock(F)6-20
Air pressure(Mpa)1.05-3.5
Air consumption(m³/min) 16-40
Once promotion(mm)3600
Skid max angle(°)90
Maximum height from the ground(mm)          320
Rotation Speed(r/min)    0-110
Rotation torque(NM)5600
Lifting power(T)  15
Lifting speed(m/min)27
Climb ability(°)25
Dimension(L*W*H)(mm)6500*2100*2600
weight(Kg)9400

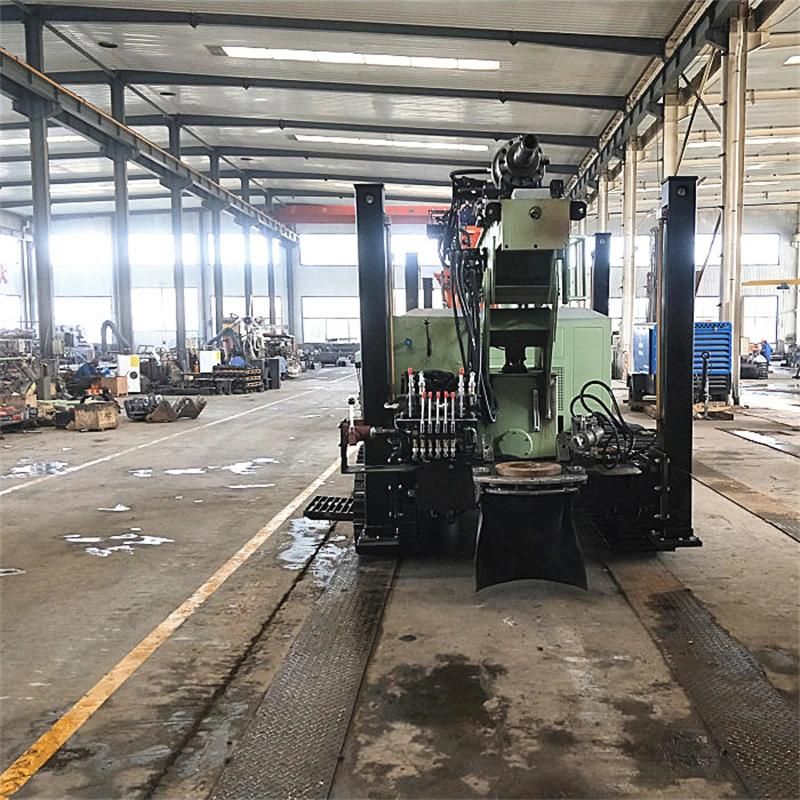

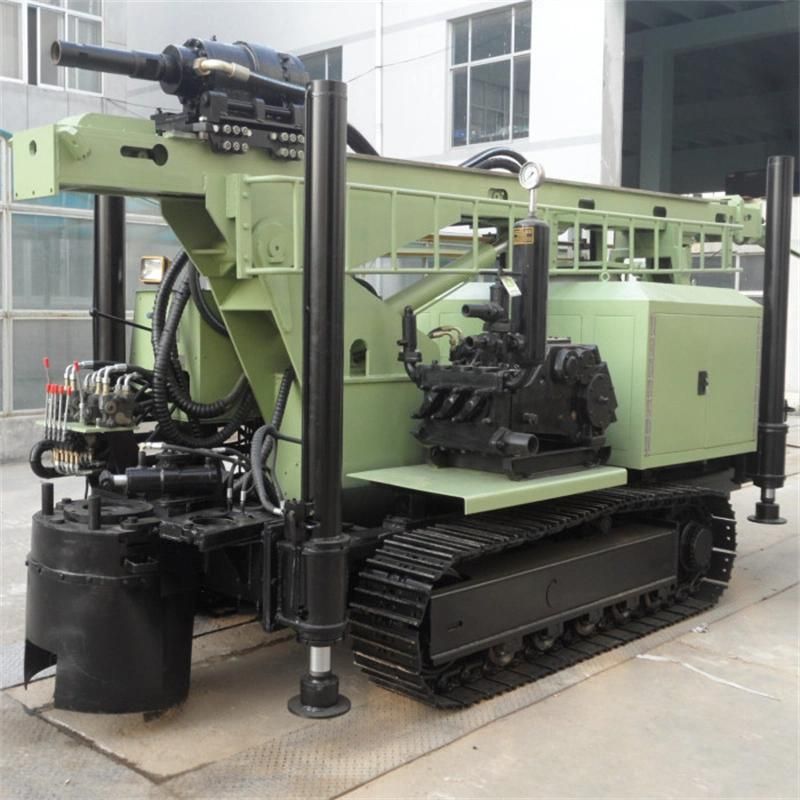

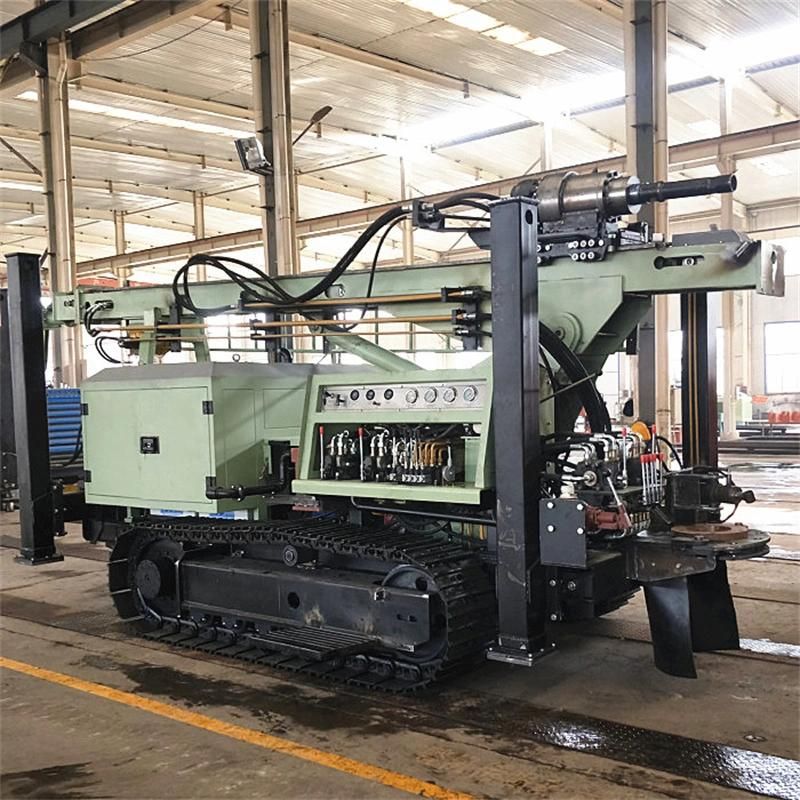

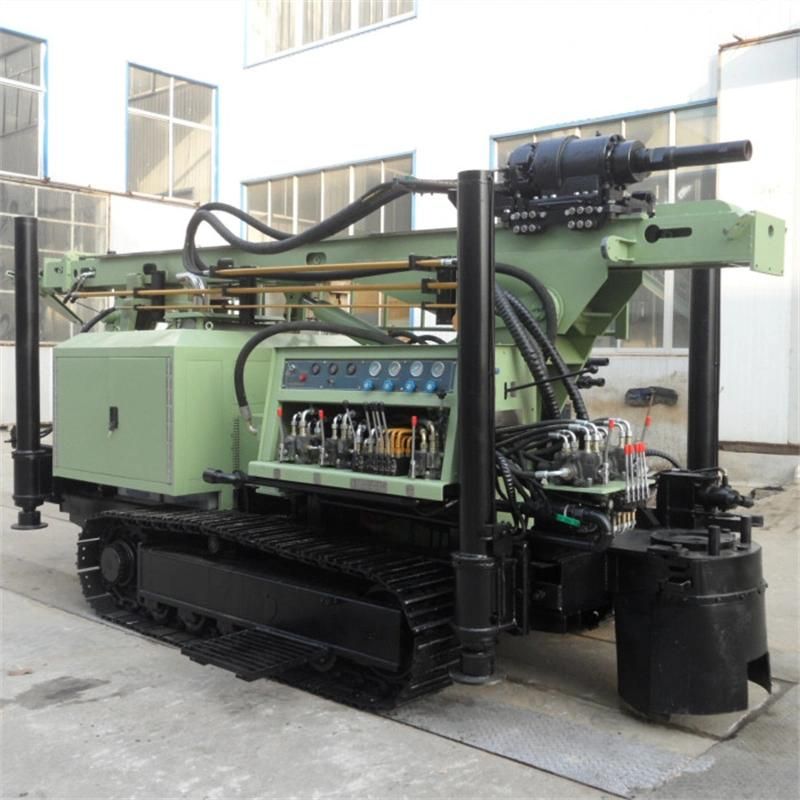

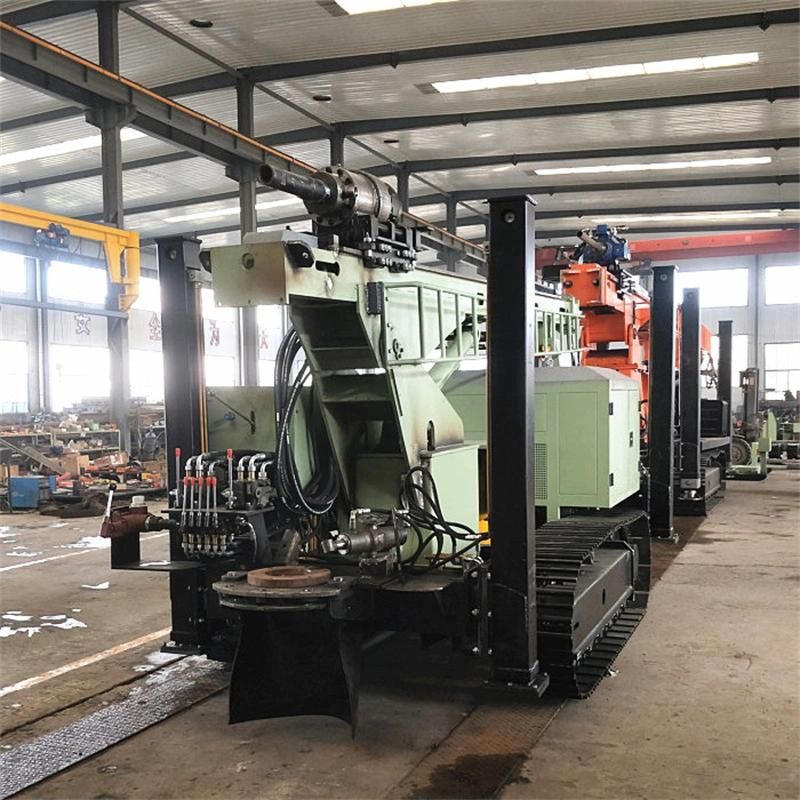

Product Display

300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig

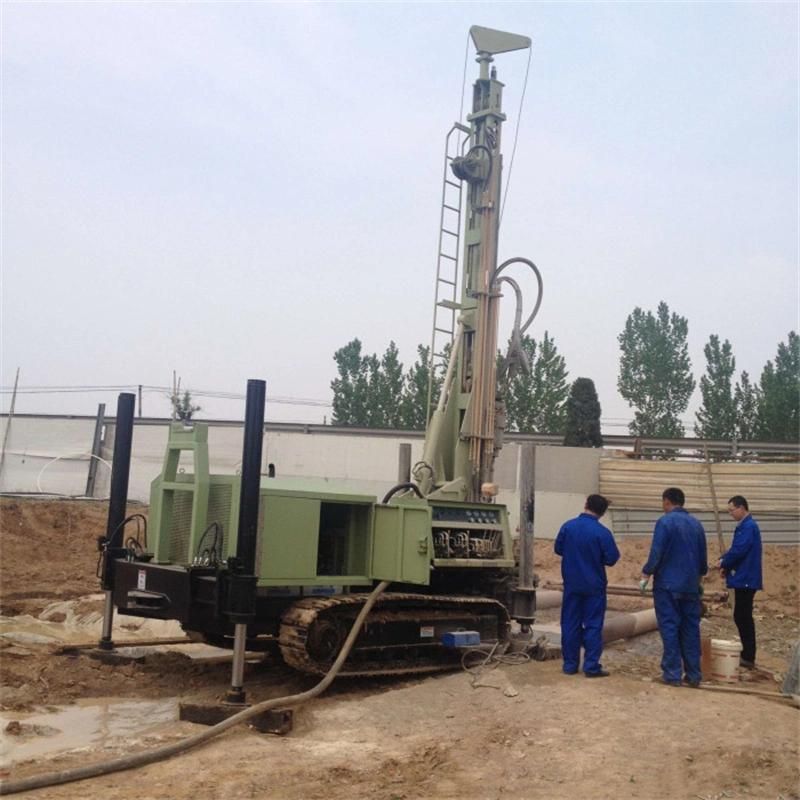

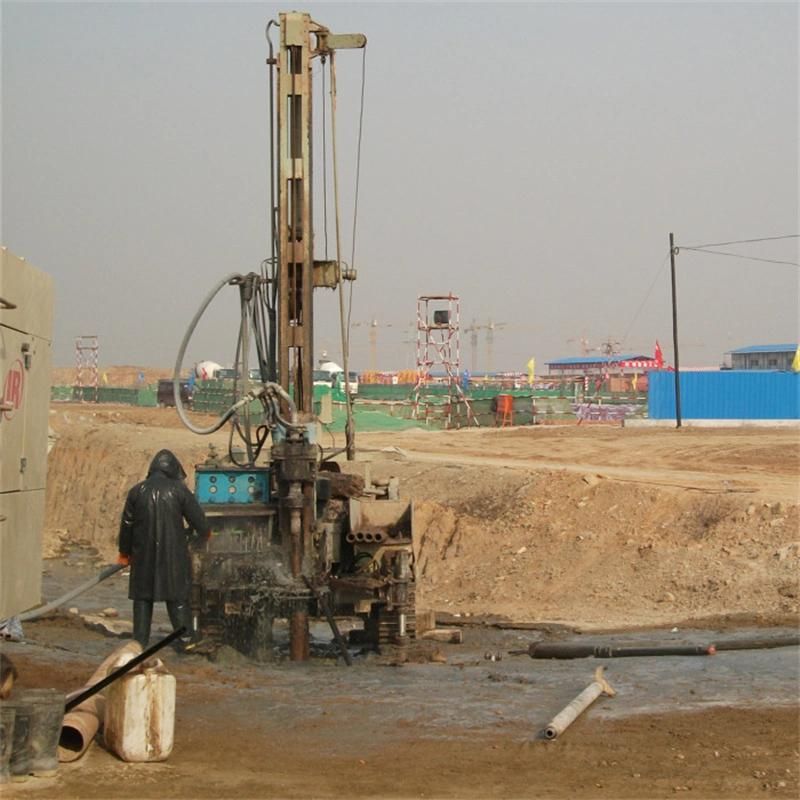

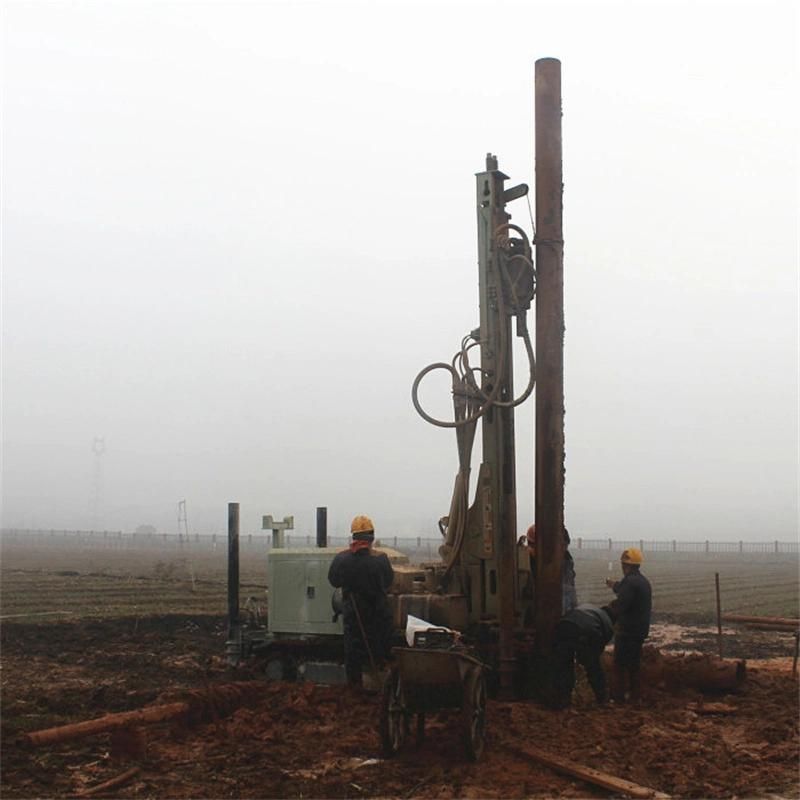

Product Application

300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig

Company Profile

300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig300m 350m Compact Crawler Hydraulic Machine Water Drilling Rig



FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
