• Model NO.：SLY100
• Drill Hole Depth：120 Meters
• Bit Type：DTH Drill Bit, Roller Bit
• Drilling Way：Rotary
• Type：Two Wheels Trailer
• Air Pressure：7-14 Bar
• Air Consumption：7-15 M3,Min
• Engine Power：18.37 Kw
• Weight：1700 Kg
• for Rock：6-20 F
• Transport Package：Standard Shipping Packing
• Specification：4375MM*1650MM*1920MM
• Trademark：LONGYE
• Origin：China
• HS Code：8430419000
• Production Capacity：300 Sets, Year

Basic Info.

Model NO. SLY100 Drill Hole Depth 120 Meters Bit Type DTH Drill Bit/ Roller Bit Drilling Way Rotary Type Two Wheels Trailer Air Pressure 7-14 Bar Air Consumption 7-15 M3/Min Engine Power 18.37 Kw Weight 1700 Kg for Rock 6-20 F Transport Package Standard Shipping Packing Specification 4375MM*1650MM*1920MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Our Advantages

We are factory with 22 years history, our machine exported more than 60countries.
We got ISO, CE certificate.


Product Introduction
SLY100 Water Well Drilling Rig
     SLY100 Water Well Drilling Rig is lightweight, high efficient, multi-functional drilling rig, which can use air, foam or mud rotary for drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration holes , in particular in drilling geothermal heating hole, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Technical Parameters

Bore diameter(mm)	90---140
Bore depth(m)	70---120
Walk speed(km/h)	<20
For rock(F)	6-20
Air pressure(Mpa)	0.7-1.4
Air consumption(m³/min)	7-15
Once promotion(mm)	2000
Skid max angle(°)	90
Maximum height from the ground(mm)	320
Rotation Speed(r/min)	0-90
Rotation torque(NM)	2200
Dimension(L*W*H)(mm)	4375*1650*1920
Host power(Kw)	18.37
weight(Kg)	1700

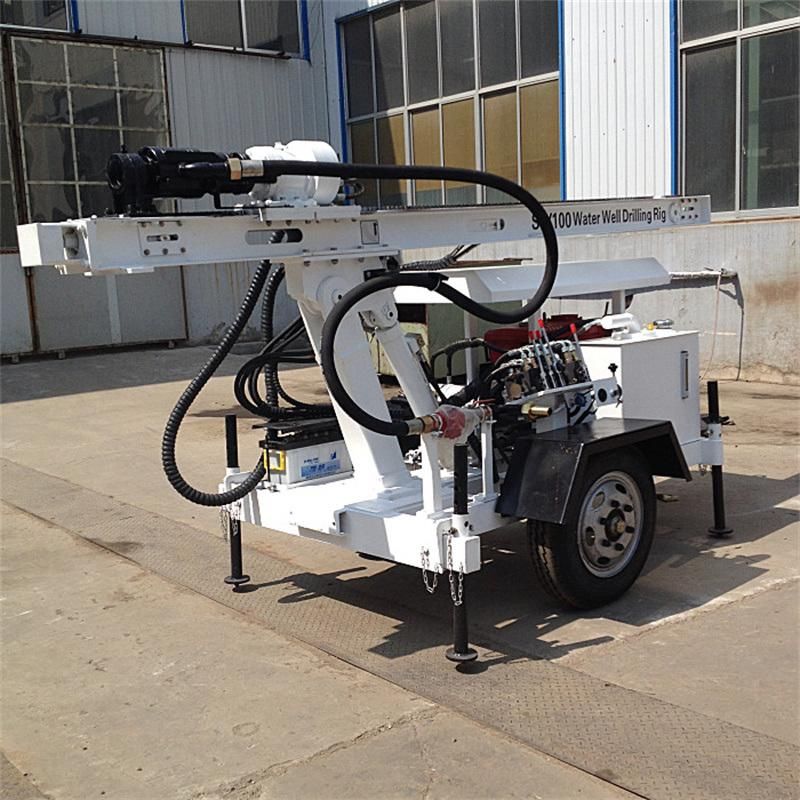

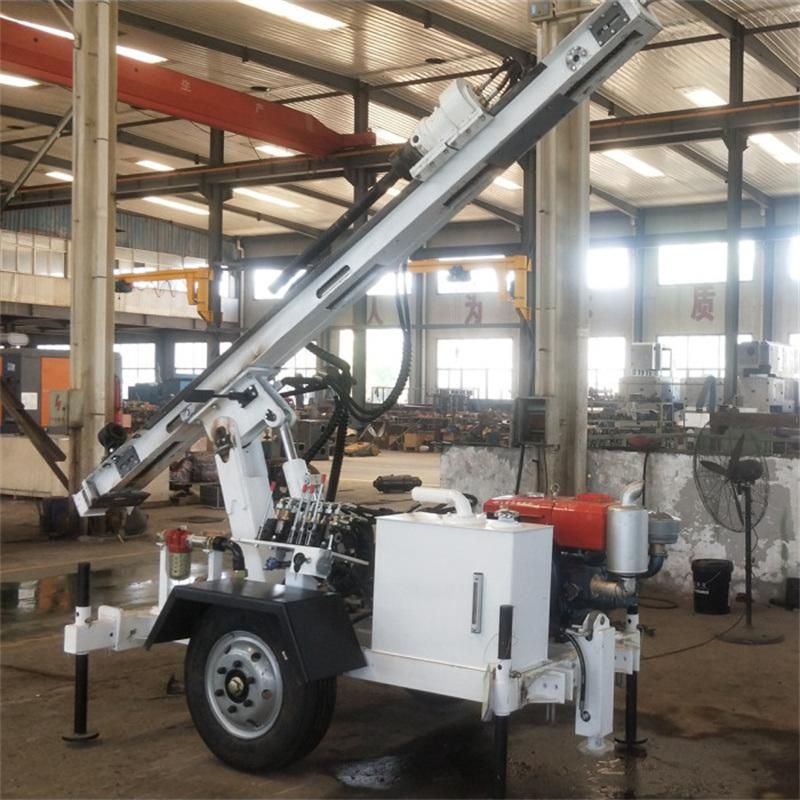

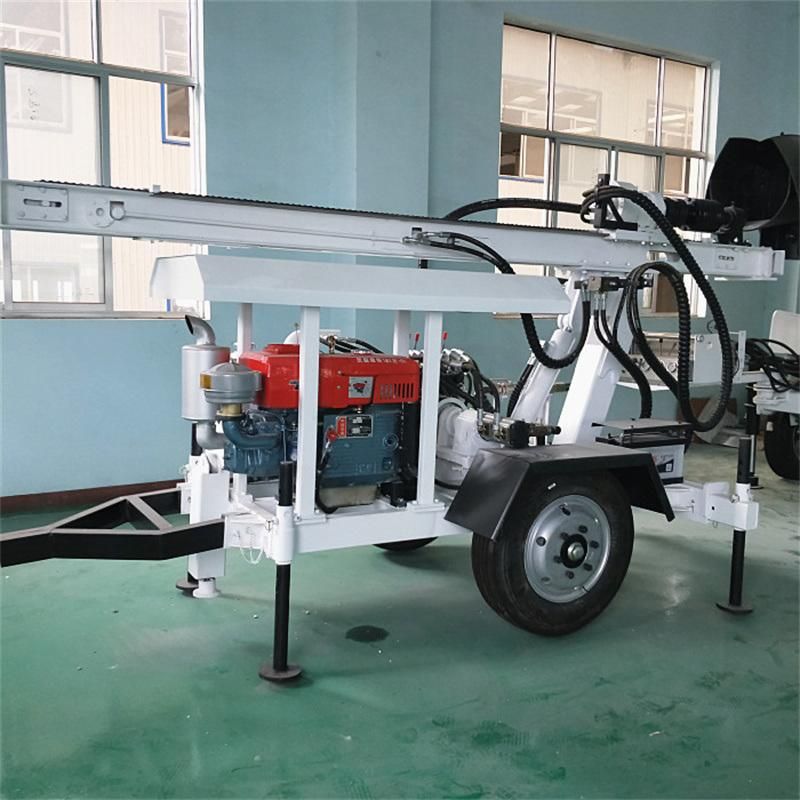

Product Display

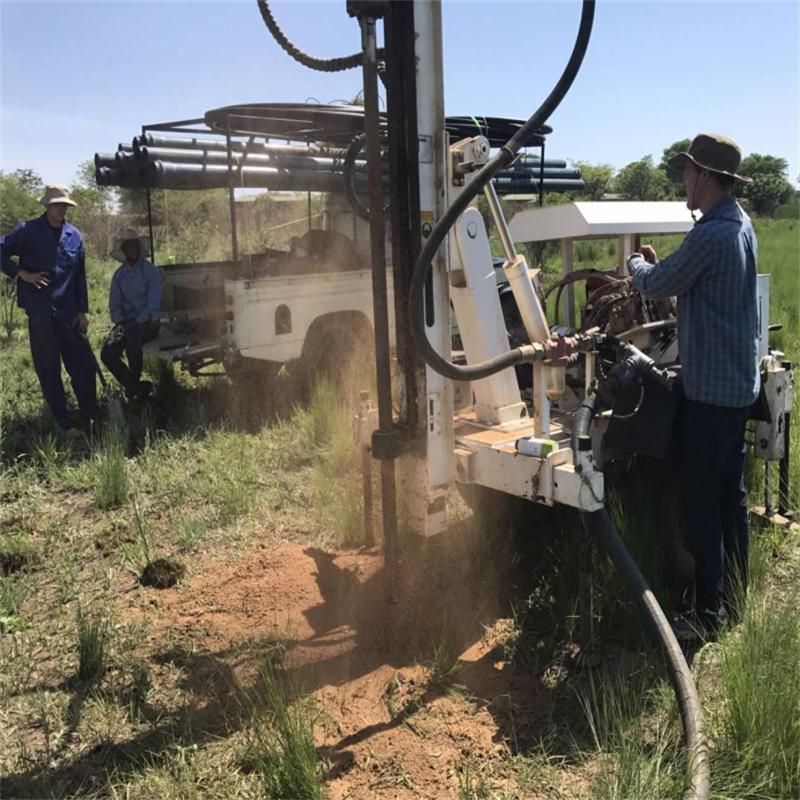

Product Application


Company Profile




FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
