Excavator PV Pile Driver Machine with Impact Hammer Pile for Solar Pile Driving Ramming
Taian Longye Import and Export Trade Co., Ltd.- After-sales Service:Available
- Warranty:1 Year
- Certification:CE, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Impact Pile Length:Max 6m
- Impact Frequency:450--800bpm
Base Info

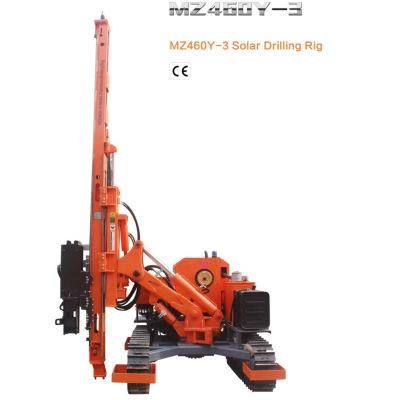

- Model NO.:MZ460Y-3
- Impact Power:1300j
- Once Promotion(mm):4100
- Optional Screw Pile:Max 6m
- Rotary Torque:6500nm
- Drilling Hole Diameter:90-400mm
- Hydraulic Pump:USA Permco
- Hydraulic Valve:Italy Hydro
- Mast Pitch:95
- Mast Swinging:40
- Boom Swing:110
- Boom Pitch:30
- Engine Power(Kw):88
- Climb Slope Ability:35
- Transport Package:40′ HQ
- Specification:6240*2250*3000mm
- Trademark:LongYe
- Origin:Shandong, China
- HS Code:8430419000
Description

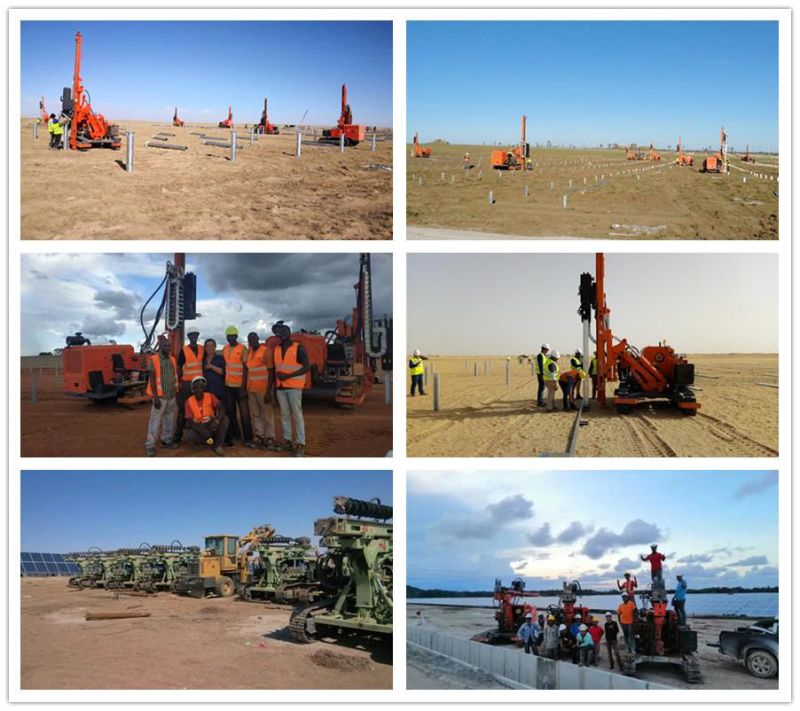

- Dive maximum 6m long C,H,O,W,Sigma...solar steel posts using ramming head
- Use rotary head to drill ground screw piles or to drill DTH rock holes or drill augering holes
- Working on flat ground or maximum 25 degree slope ground.
Impact frequency(bpm) | 450--800 |
Impact(j) | 1300 |
work pressure(bar) | 130---150 |
Bore diameter(mm) | 70~160 |
Bore depth(m) | 30 |
Air consumption(m³/min) | 8--16 |
Air pressure(Mpa) | 0.7-1.6 |
Once promotion(mm) | 4100 |
Maximum ramming length(mm) | 6000 |
Skid pitch(°) | 95 |
Boom swing angle(°) | 110 |
Boom pitch(°) | 30° |
Swinging angle of skid(°) | left and right total 40 |
Host power(KW) | 88 |
Climb ability(°) | 35 |
Dimension(L*W*H)(mm) | 6240*2250*3000 |
Weight(Kg) | 7350 |
Walk speed(km/h) | 0--2.5 |
MZ460Y-3 Machine Demo
Remark:
1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.
2. The time of delivery: Deliver the products within 2 days after receiving the total price.
3. The quotation validity date:40 days; Machine manufacturing time: 5-7 days;

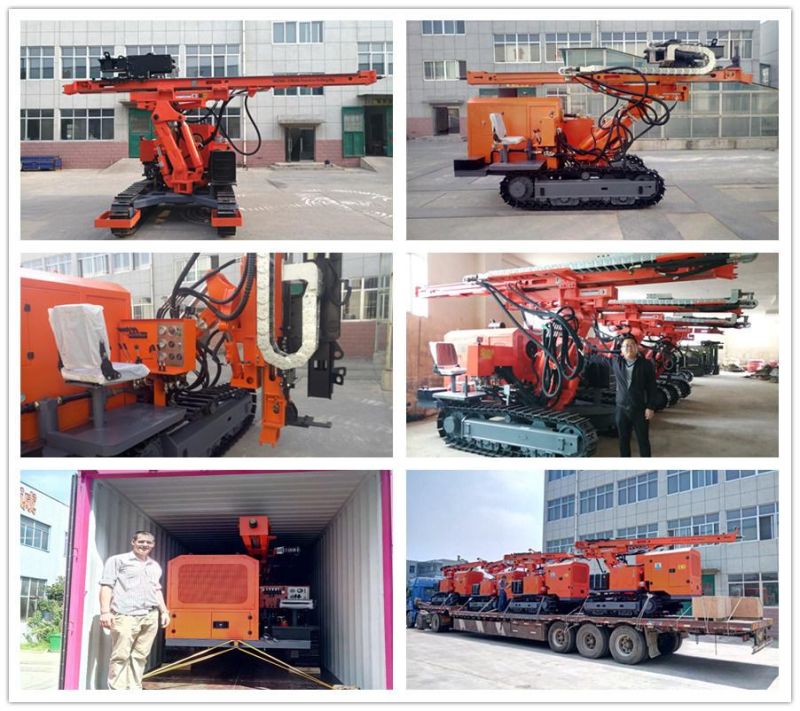

4. Loading: 1 set machine uses 1*40 feet high container; 1*40 feet high container for maximum 2 sets.
....................................................................................................... .
R F Q
Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.
Q3: What about the shipments and package?
A: 40' container
Machine in nude packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Q7: Can I trust your company ?
A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
We are factory manufacturer, and we have our own export license .
