Crawler Type Air pneumatic Drilling Mud Drilling Water Well Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：HQZ220L
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Name：Drilling Rig
  • Drilling Diameter：245mm
  • Drilling Depth：220m
  • Color：Customized
  • Power：60kw
  • Transport Package：FCL
  • Specification：3400*1500*2400 mm
  • Trademark：HW
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：1000PCS,Month

Description

ApplicationCrawler Type Air pneumatic Drilling Mud Drilling Water Well Drilling RigCrawler Type Air pneumatic Drilling Mud Drilling Water Well Drilling Rig
Specification

Model

HQZ220L

Overall weight (T )

4.2

Dimension (mm )

3800*1700*2350

Drilling diameter (mm )

130-294

Drilling depth (m )

220

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

30

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.7-2.5

Air consumption (m³/min)

15-27

Main machine power (kw)

Yunnei 60Kw

Rotary Speed (rpm)

48 - 70

Rotary torque (Nm )

4200-5600

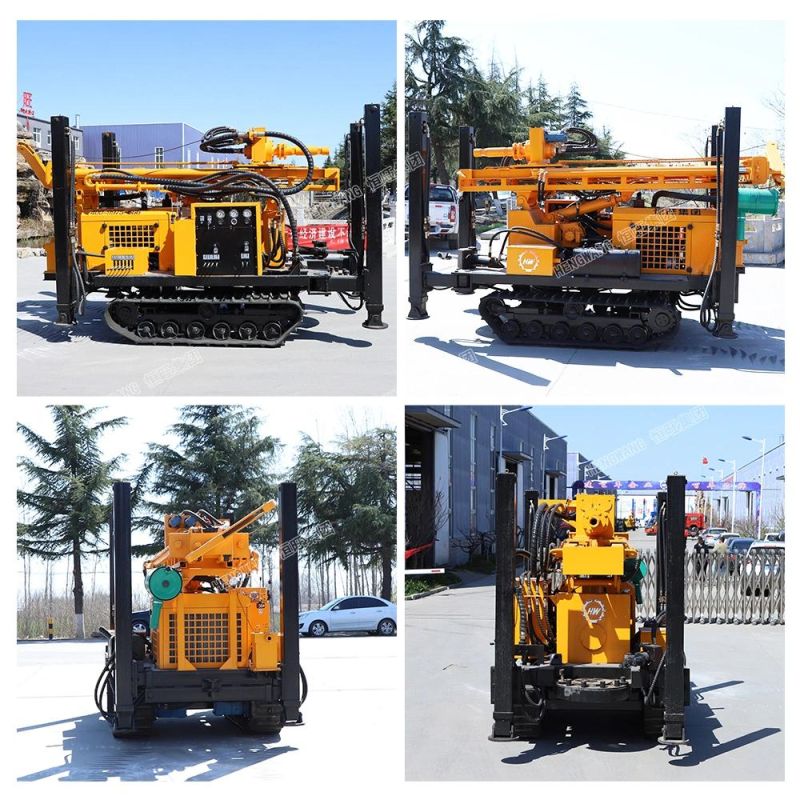

Products DetailsCrawler Type Air pneumatic Drilling Mud Drilling Water Well Drilling RigCrawler Type Air pneumatic Drilling Mud Drilling Water Well Drilling Rig
Packing and deliveryCrawler Type Air pneumatic Drilling Mud Drilling Water Well Drilling Rig



Our factory

Crawler Type Air pneumatic Drilling Mud Drilling Water Well Drilling Rig
